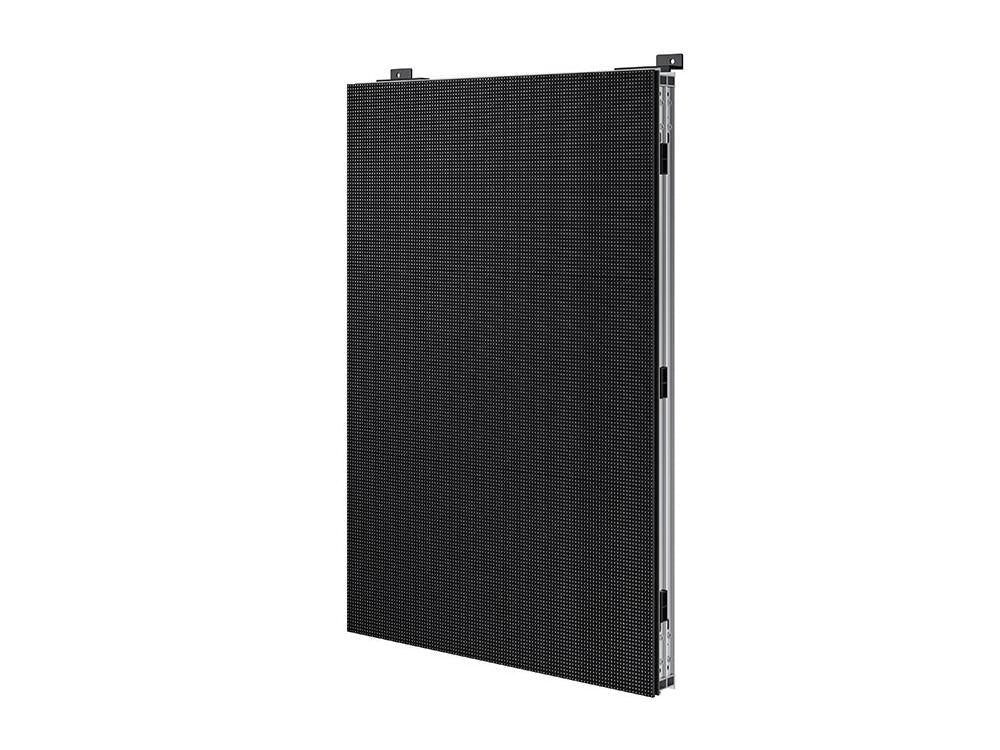

Samsung XHB-EP16L-TYPE4X3 LED Cabinet Display, 7000 Nits, 16.43mm Pitch

VENDOR: SAMSUNG Mfg Part#: LH160XHBCLE UPC#: 887276720456
  • The Samsung XHB-EP16L-TYPE4X3 LED display is built for professional-grade digital signage with remarkable brightness and color depth. Featuring a robust 7000 nits brightness, 281 trillion color support, and a high refresh rate of 7680 Hz, it’s ideal for impactful outdoor visuals regardless of lighting conditions.
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,844.24
$3,844.24
Sale Sold out
MSRP: $5,158.45
Shipping calculated at checkout.
  • LED cabinet display with 7000 nits brightness and 7000:1 contrast ratio
  • 7680 Hz refresh rate for ultra-smooth playback and image clarity
  • Pixel pitch of 16.43 mm for large-scale digital signage
  • Supports 281 trillion colors for vibrant and accurate rendering
  • Operates in extreme temperatures: -40°C to 55°C
  • TAA-compliant and made in Mexico; suitable for federal or industrial use
View full details

Key Benefits

Eye-Insights
  • Ultra-high brightness and wide color gamut ensure superior visibility, even in direct sunlight, maximizing viewer engagement.
  • Industrial-grade thermal tolerance and compliance with TAA standards make it ideal for mission-critical or regulated environments.
  • High refresh rate and wide viewing angles allow for smooth, immersive content display suitable for large public or commercial installations.

Product Overview

The Samsung XHB-EP16L-TYPE4X3 is a high-performance LED cabinet tailored for professional and outdoor signage needs. It delivers a brightness of 7000 nits and a 7000:1 contrast ratio, ensuring brilliant visibility even in high ambient light. Its 281 trillion color support and 7680 Hz refresh rate provide a smooth and high-fidelity visual experience.

With a 16.43 mm pixel pitch and wide 160°/115° viewing angles, it guarantees excellent legibility across vast spaces. Engineered to withstand extreme temperatures from -40 °C to 55 °C and TAA-compliant, it’s built for tough, compliant installations. The display operates on 100–240 VAC and consumes 224W, giving installers flexibility and efficiency.

Specifications

Primary Information
Model LH160XHBCLE
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 63
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 224 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 1035 Mm
Weight 42.7 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 224 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
