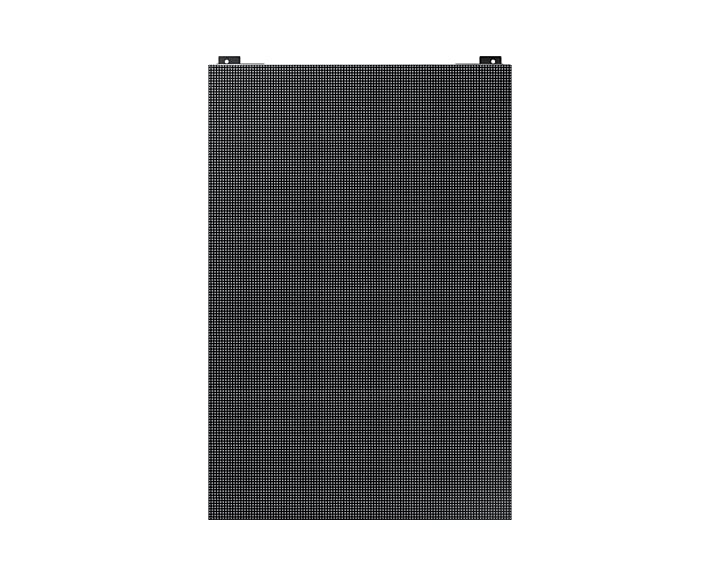

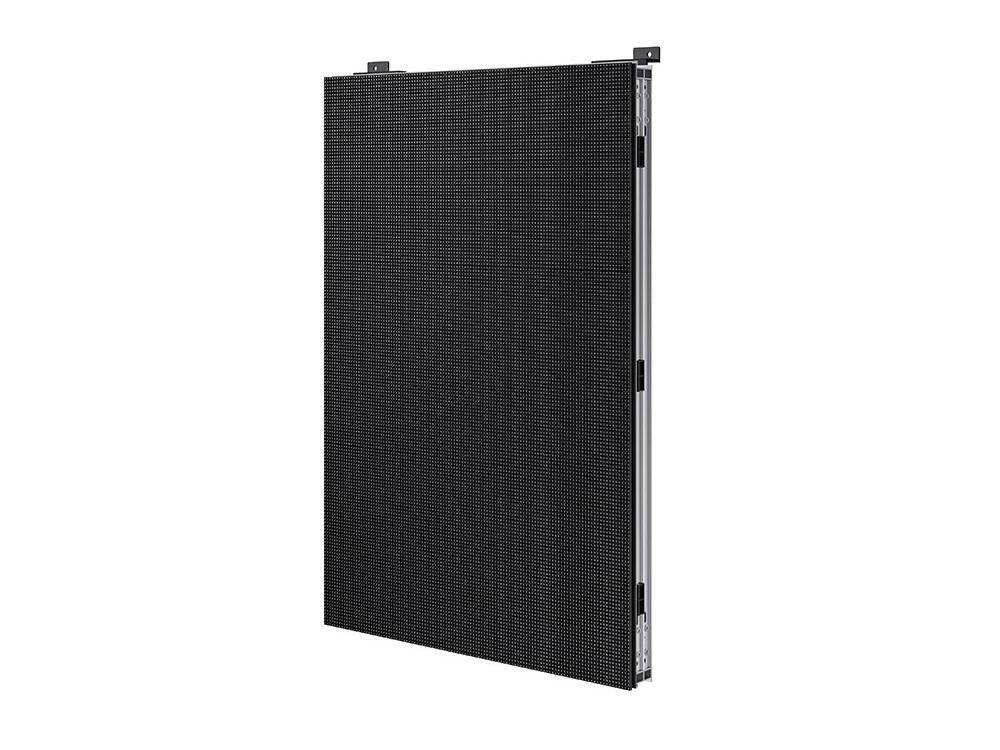

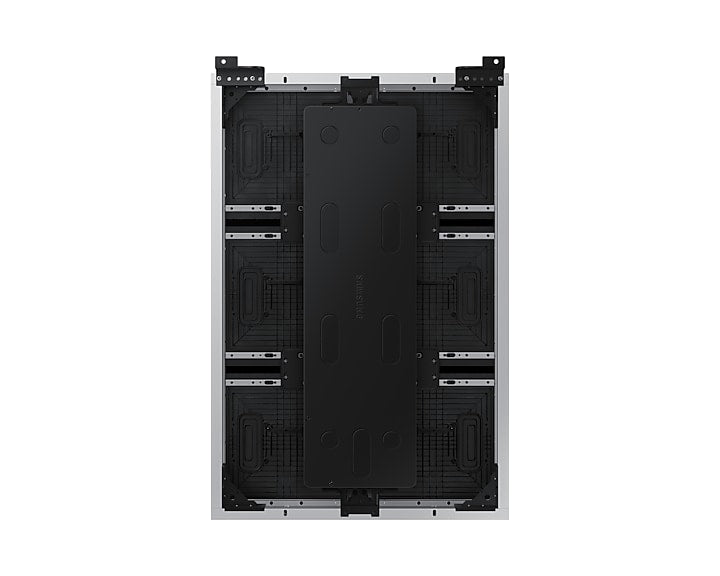

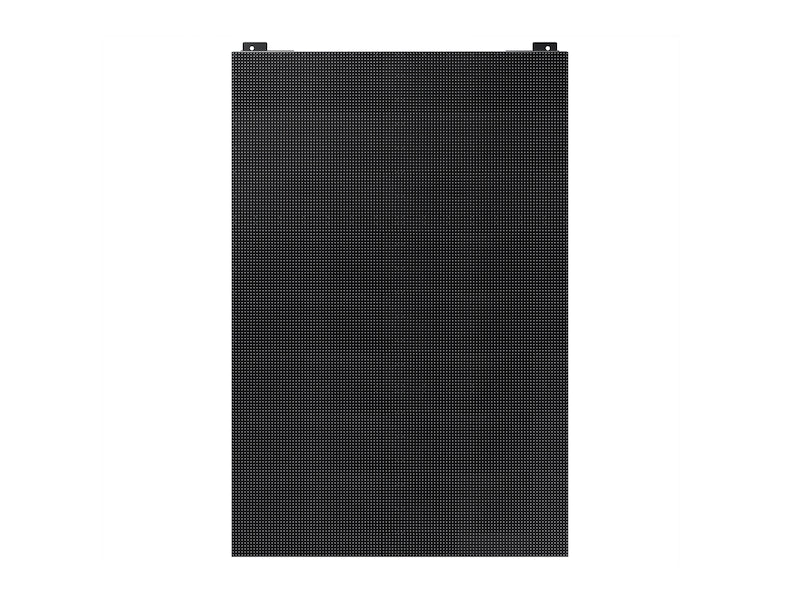

Samsung XHB-SP8FLAT2X3 8.21mm LED Display Cabinet

VENDOR: SAMSUNG Mfg Part#: LH080XHBTAS UPC#: 8806094567342
  • The Samsung XHB-SP8FLAT2X3 is a high-brightness, flat LED display cabinet designed for premium signage applications. With an 8000-nit brightness, ultra-fine 8.21mm pixel pitch, and support for HDR, it delivers stunning visual clarity in outdoor or high-ambient light environments. Offering over 281 trillion color support and extreme temperature tolerance, it's engineered for endurance and high-impact display demands.
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,318.30
$2,318.30
Sale Sold out
MSRP: $3,110.82
Shipping calculated at checkout.
  • Flat LED cabinet design with 8.21mm pixel pitch
  • 8000 nits high brightness and 8000:1 contrast ratio
  • Supports over 281 trillion colors for vivid image reproduction
  • Extreme 7680 Hz refresh rate for smooth video playback
  • Tolerates temperatures from -40°C to 55°C
  • TAA compliant and manufactured in Mexico
View full details

Key Benefits

Eye-Insights
  • Ideal for outdoor or high-ambient light applications thanks to its ultra-high 8000 nits brightness
  • HDR capability with broad color support enhances content impact for professional signage
  • Reliable performance in extreme environments with wide operating temperature range and efficient power usage

Product Overview

The Samsung XHB-SP8FLAT2X3 (model LH080XHBTAS) is a flat LED display cabinet engineered for professional signage and video wall use. It features a pixel pitch of 8.21mm, delivering a strong balance of image clarity and long-distance visibility. With an ultra-high brightness of 8000 nits and HDR support, the cabinet provides vibrant, clear images even in outdoor or high-glare environments. The unit supports 281 trillion colors and a 7680 Hz refresh rate, enabling true-to-life reproduction and ultra-smooth video transitions. Built to handle harsh conditions, it operates from -40°C to 55°C, making it ideal for all-weather deployments. Its energy efficiency and TAA compliance make it a solid choice for critical digital signage installations in both commercial and public sector projects.

Specifications

Primary Information
Model LH080XHBTAS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 84 x 126
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 8.21 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/117
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 167 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 689.9 Mm
Depth 92.0 Mm
Height 1035.4 Mm
Weight 23.2 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 167 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 8.21 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
