Samsung XHB-SP8L-TYPE4X2 LED Cabinet Display, 8000 nits, 84x84 px

VENDOR: SAMSUNG Mfg Part#: LH080XHBTRS UPC#: 887276720357
  • The Samsung XHB-SP8L-TYPE4X2 is a high-brightness LED cabinet designed for demanding digital signage environments. Offering an ultra-bright 8000 nits display with HDR support, this flat-panel unit features a pixel pitch of 8.21 mm and operates reliably in extreme temperatures. Purpose-built for impactful visual experiences, it delivers precision image quality and durable performance.
1 1

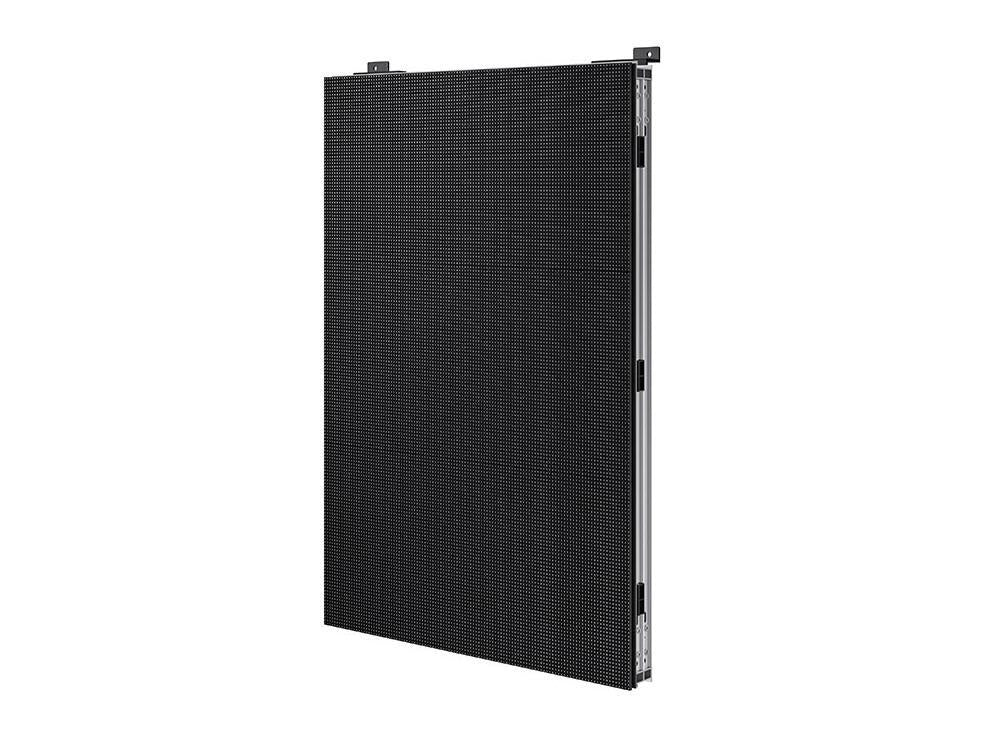

Photo is for illustration purposes only. Actual product may be different.
$3,699.05
$3,699.05
Sale Sold out
MSRP: $4,963.63
Shipping calculated at checkout.
  • Brightness: 8000 nits for clear visibility in daylight
  • HDR capable for rich, high-dynamic visuals
  • Pixel pitch: 8.21 mm
  • Refresh rate: 7680 Hz for smooth playback
  • Contrast ratio: 8000:1 for deeper blacks and vivid colors
  • Operating temperature: -40°C to 55°C for extreme environments
View full details

Key Benefits

Eye-Insights
  • Designed for high-visibility outdoor applications with 8000 nits brightness and HDR support
  • Reliably operates in extreme temperature ranges (-40°C to 55°C), ideal for diverse climates
  • TAA compliance and Mexican manufacturing origin supports government and regulated deployments

Product Overview

The Samsung XHB-SP8L-TYPE4X2 is a professional-grade LED cabinet display engineered for high-impact outdoor and large-format digital signage applications. With a brightness of 8000 nits and a contrast ratio of 8000:1, this cabinet ensures exceptional visibility in demanding conditions. Supporting HDR and 281 trillion colors, it delivers lifelike visuals ideal for public or commercial use.

Built for extreme environments, it operates from -40°C to 55°C. The 8.21 mm pixel pitch and 84 x 84 pixel resolution enable modular display scaling. Sized at 690 mm per side with a 30.4 kg weight, it allows precision configuration into larger arrays. Its ultra-high 7680 Hz refresh rate supports fluid motion display across dynamic content formats.

Targeted at professional applications, this cabinet draws 222 watts at 100–240 VAC, is TAA compliant, and is manufactured in Mexico. Absence of network or image enhancement features emphasizes core performance for specialized signage deployments.

Specifications

Primary Information
Model LH080XHBTRS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 84 x 84
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 8.21 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/117
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 222 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 690 Mm
Weight 30.4 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 222 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 8.21 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
