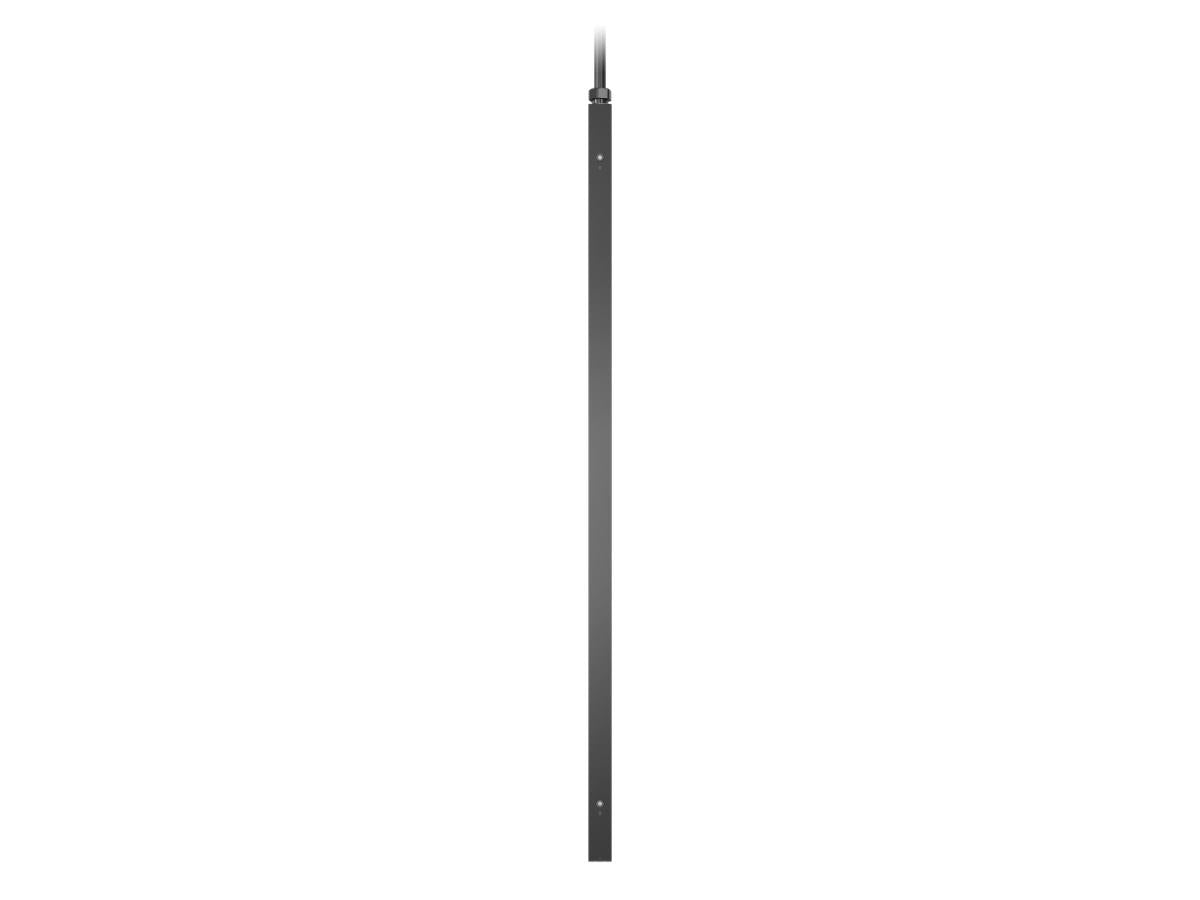

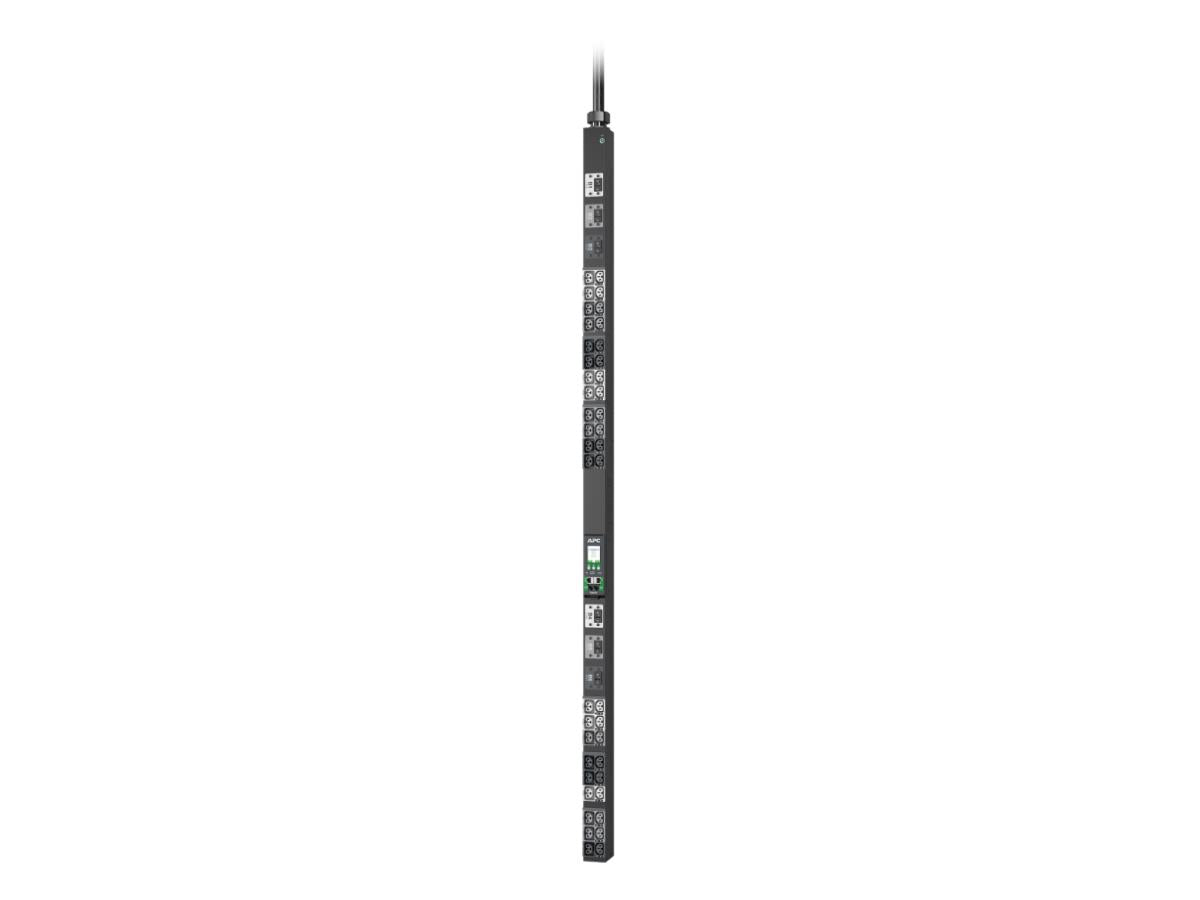

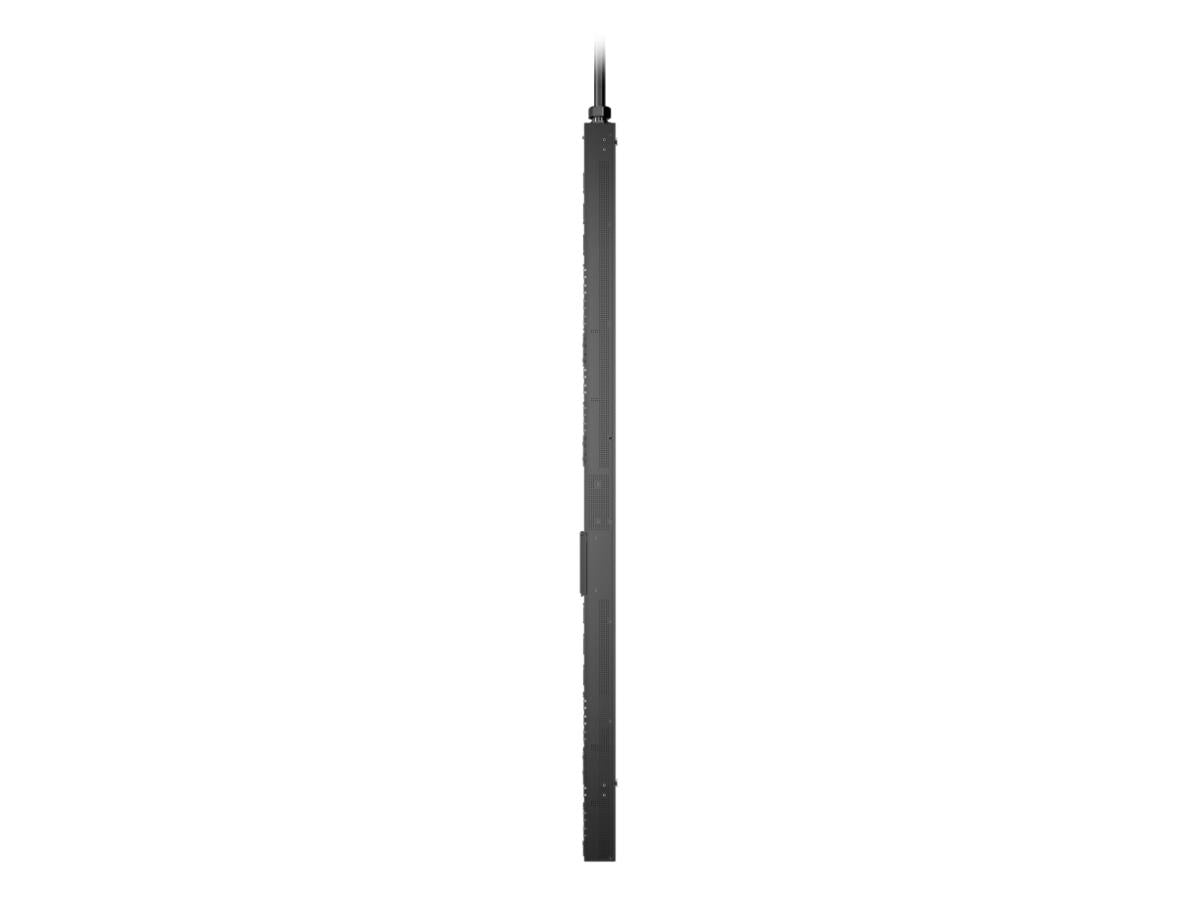

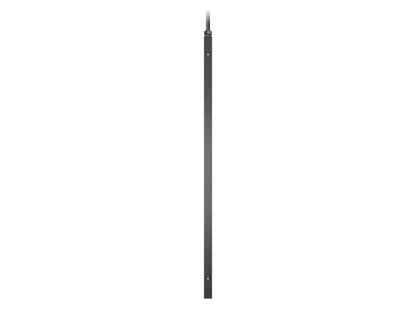

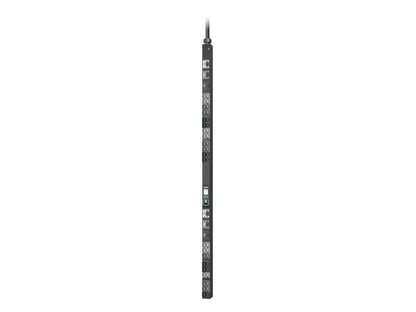

APC NetShelter PDU Advanced 3PH 17.3kW 208V 60A APDU10452MO

VENDOR: APC Mfg Part#: APDU10452MO UPC#: 731304439875
1 2
Photo is for illustration purposes only. Actual product may be different.
$5,794.00
$5,794.00
Sale Sold out
MSRP: $8,573.00
Shipping calculated at checkout.
  • 17.3 kW power output with 208V 3-phase input for high-density IT environments
  • 60A IEC 60309 3P + PE input connector supports robust power delivery
  • 42 mixed-format output connectors including C13, C15, C19, C21
  • Outlet-level metering via Ethernet port for granular monitoring
  • TAA and BAA compliance for government and federal IT applications
  • 3-year repair or replace warranty for extended reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise server and networking racks by supporting 42 outlets with flexible connector formats
  • Supports remote power monitoring via Ethernet, optimizing IT infrastructure management
  • Compliant with UL 62368-1, TAA, and BAA standards for use in regulated environments

Product Overview

The APC NetShelter Rack PDU Advanced APDU10452MO offers reliable high-density power distribution for enterprise data centers. With a robust 60A 3-phase 208V input and provision of 17.3kW/17,300 VA, it supports mixed-format 42-outlet configurations including C13/C15/C19/C21 to power a wide array of devices. The PDU is fully rack-mountable, features Ethernet connectivity for remote monitoring, and ensures targeted metering at the outlet level. Certified to UL 62368-1 and compliant with TAA and BAA regulations, this unit also includes a 3-year repair/replacement warranty. Designed for integration within mission-critical IT racks, it delivers scalable and reliable power infrastructure control.

Specifications

Product Overview
Type Power Distribution Unit (PDU)
Form Factor Rack-Mountable
Input Voltage 208 V 3-phase
Output Voltage 208 V
Input Power Capacity 17.3 kW
Apparent Power Capacity 17,300 VA
Maximum Input Current 60 A
Power Input Connector IEC 60309 60 A 3P + PE (460P9)
Number of Outlets 42
Outlet Types (21) C13/C15/C19/C21, (21) C13/C15
Color Black
Model Number APDU10452MO
Product Family NetShelter PDU Advanced
Mounting Rail Support Standard EIA 19-inch racks
Output Frequency 50/60 Hz auto-sensing

Cloud Management & Licensing
Management Interface Web browser-based GUI, CLI, SNMP, EcoStruxure IT Ready
Remote Power Monitoring Yes
Outlet-Level Metering Yes
User Access Levels Customizable with role-based access
Firmware Upgrade Options Remote upgrade via Ethernet
Cloud Integration EcoStruxure IT (optional subscription)

Compliance & Origin
Compliance Standards UL 62368-1, TAA, BAA
Country of Origin United States
Environmental Compliance RoHS, REACH
Warranty 3-Year Repair or Replace

Interfaces
Network Interface Ethernet (10/100 Mbps)
Management Ports 1 x RJ45 Ethernet
Local Display No
Network Protocols Support SNMP v1/v2c/v3, HTTP, HTTPS, Telnet, SSH, FTP, SMTP
Data Transfer Protocols Modbus TCP, SNMP, REST API

Physical & Environmental
Height 70.08 in (1780 mm)
Width 2.2 in (56 mm)
Depth 2.95 in (75 mm)
Weight 24.25 lbs (11 kg)
Operating Temperature 0 to 60 °C (32 to 140 °F)
Operating Humidity 5% to 95% (non-condensing)
Storage Temperature -25 to 65 °C (-13 to 149 °F)
Storage Humidity 5% to 95% (non-condensing)
Mounting Orientation Vertical

Advanced Security Features
User Authentication Password protection, LDAP, RADIUS
Access Control Role-based user access control
Secure Management Protocols HTTPS, SSH, SNMPv3
Audit Logging Yes, with timestamped access logs
