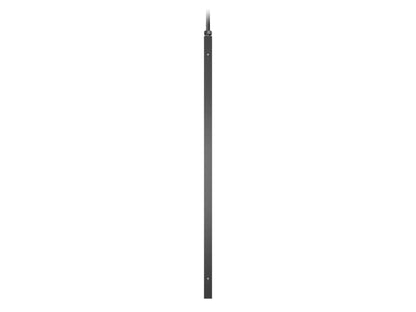

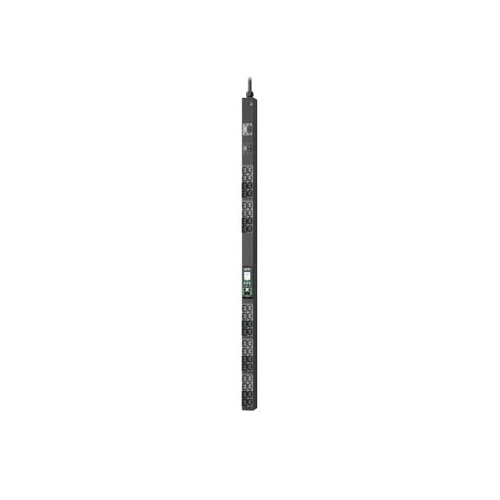

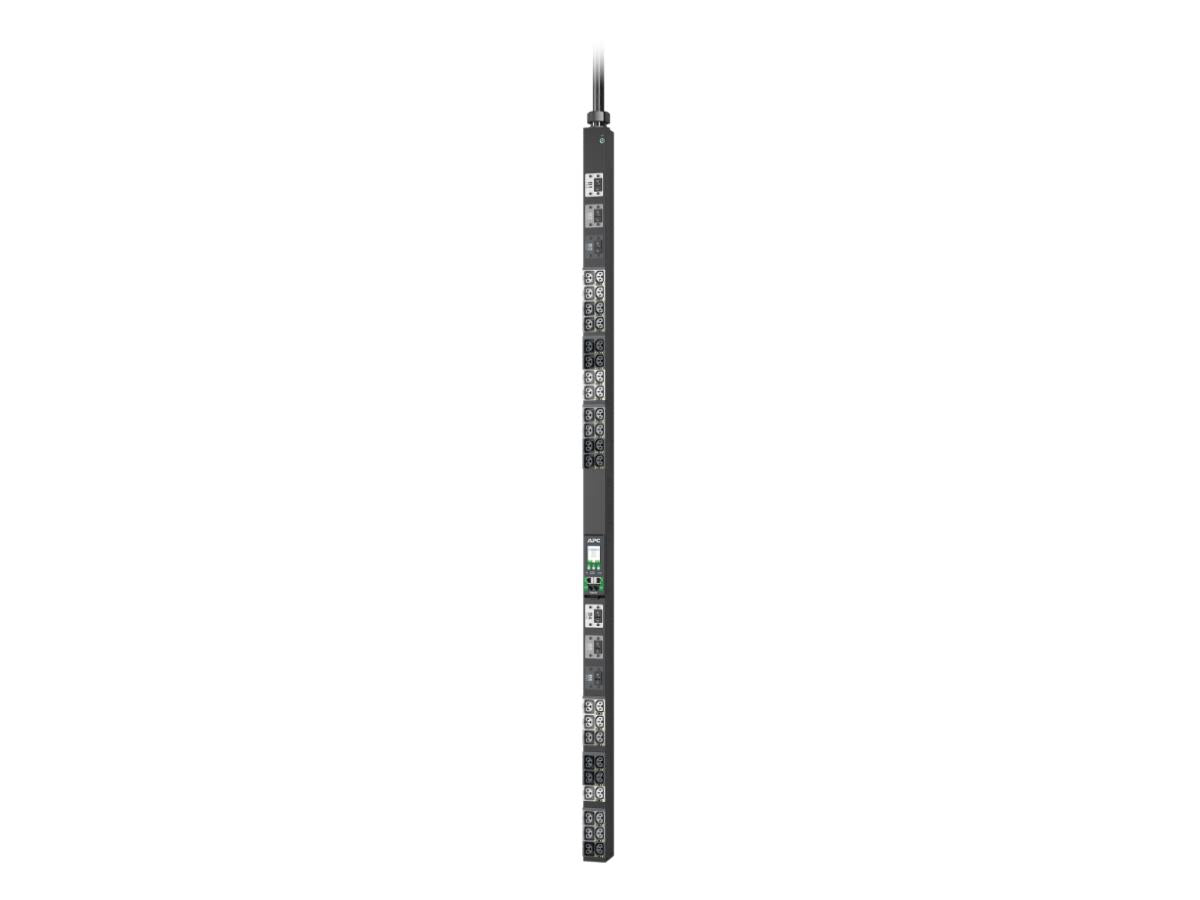

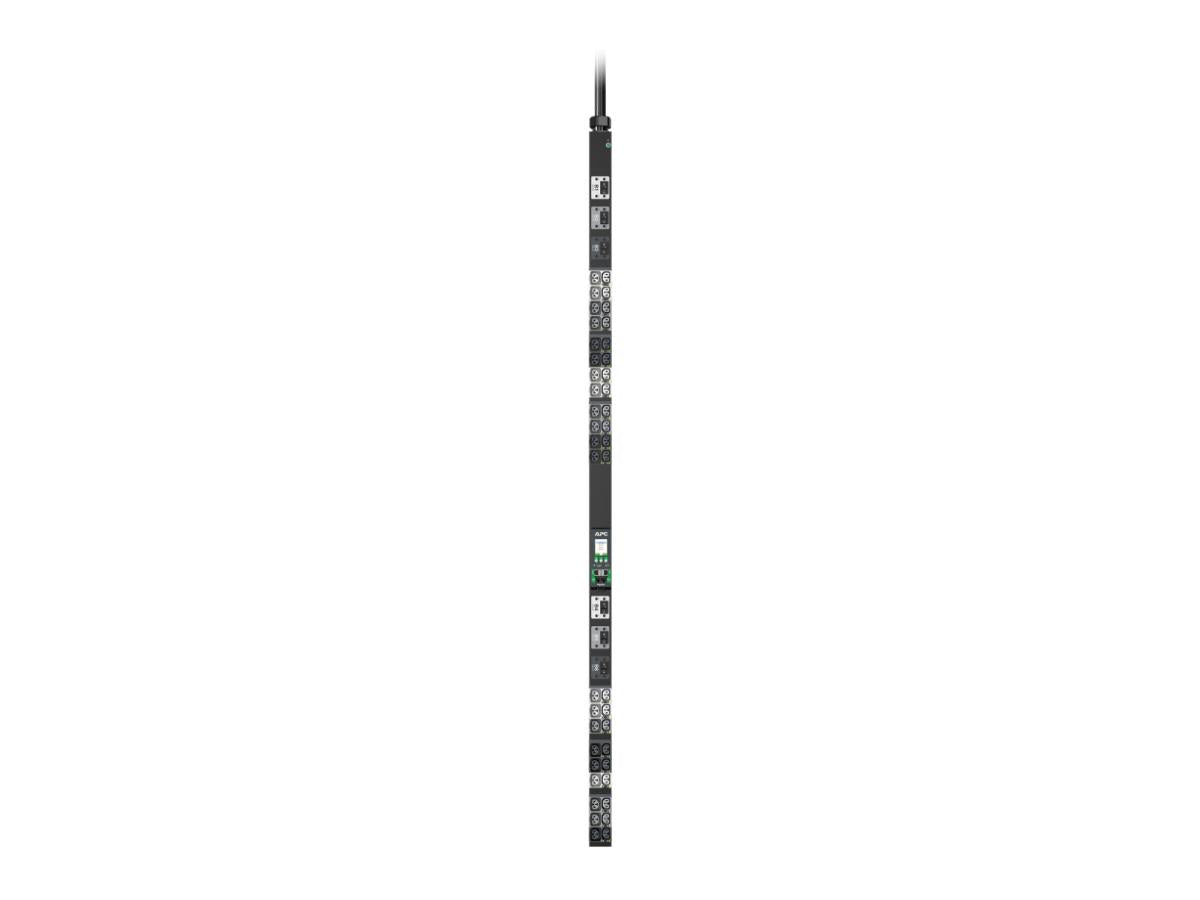

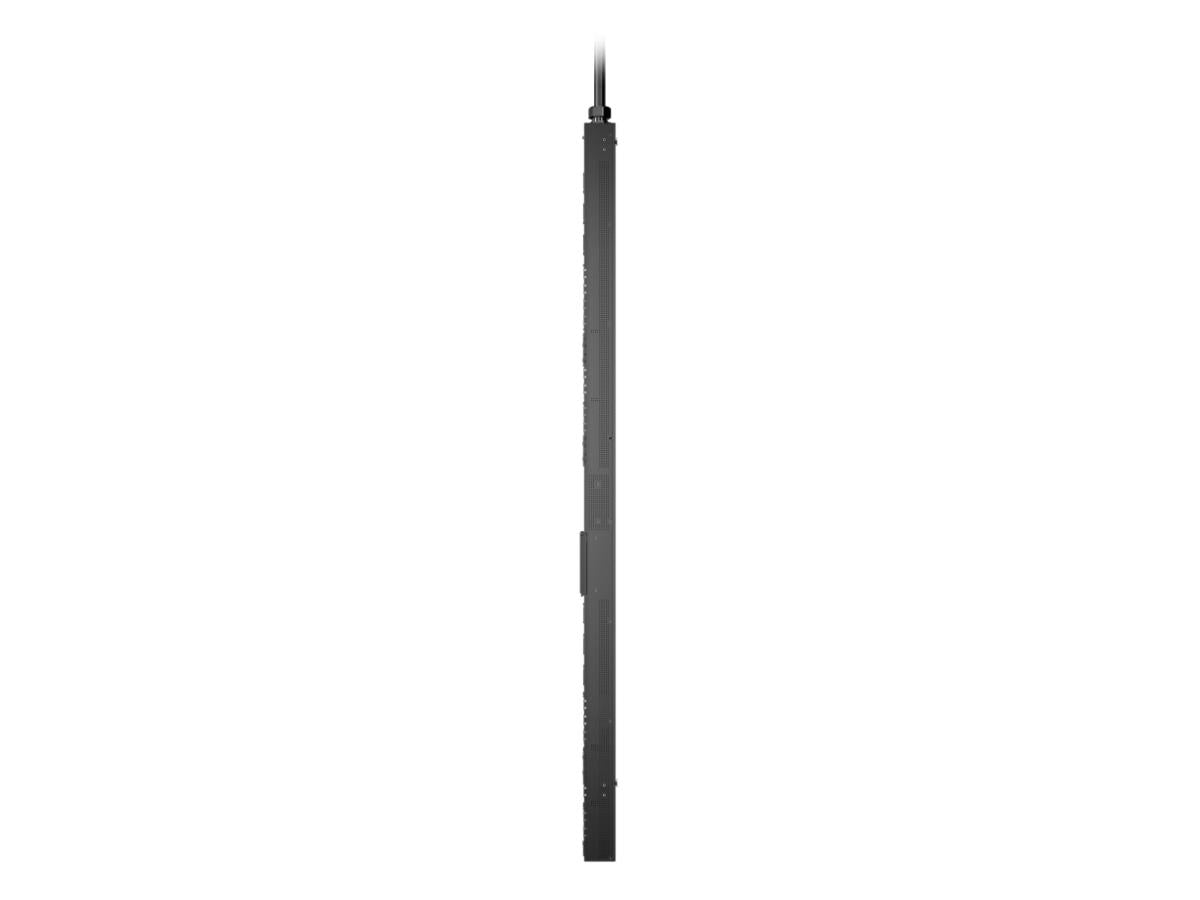

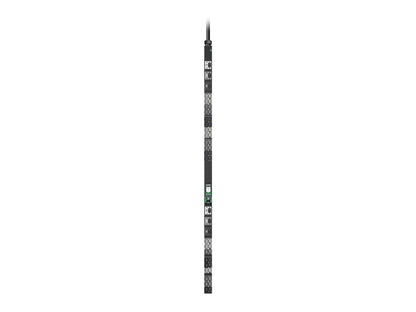

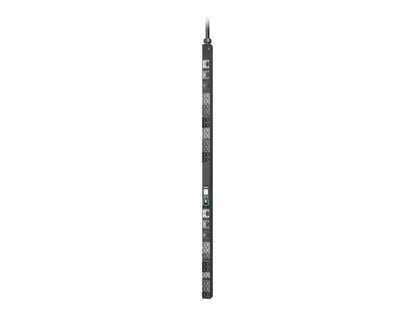

APC NetShelter Rack PDU Advanced APDU10452SM, 3PH 208V 60A 17.3KW, 42 Outlets

VENDOR: APC Mfg Part#: APDU10452SM UPC#: 731304439882
1 1
Photo is for illustration purposes only. Actual product may be different.
$6,478.00
$6,478.00
Sale Sold out
MSRP: $9,592.00
Shipping calculated at checkout.
  • Rack-mountable power distribution unit with 42 IEC-style outlets (C13/C15/C19/C21)
  • Supports 208V 3-phase input and 60A current via IEC 60309 60A 3P+PE connector
  • Delivers a total of 17.3KW / 17,300 VA power output for high-density IT environments
  • Switched metered outlet-level control with Ethernet connectivity for remote management
  • UL 62368-1 certified and IP44-rated black enclosure, TAA and BAA compliant
  • Includes 3-year repair or replace service support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides high-density power distribution with 17.3KW capacity and 42 outlets for scalable IT infrastructure.
  • Switched metered outlet control enhances energy efficiency and remote power management.
  • TAA and BAA compliance ensures suitability for government and enterprise deployments with regulatory requirements.

Product Overview

The APC NetShelter Rack PDU Advanced (APDU10452SM) is a high-efficiency, rack-mountable power distribution unit engineered for modern data centers and enterprise IT facilities. Featuring a 3-phase 208V input via IEC 60309 60A 3P+PE connector, it supports 17.3KW (17,300 VA) total power, ideal for dense compute and networking environments. Its output includes 42 total outlets—21 dual-use IEC C13/C15 and 21 mixed IEC C13/C15/C19/C21—helping ensure broad compatibility across IT equipment.

With switched metered outlet-level monitoring, it delivers precise remote power control via Ethernet connectivity. Its black IP44-compliant enclosure meets UL 62368-1 certification, ensuring safety and durability. Measuring 70.08" high, it easily integrates into standard server racks. Compliant with TAA and BAA standards and covered by a 3-year repair-or-replace warranty, the APDU10452SM is ideal for enterprise and federal deployments requiring secure and efficient power management.

Specifications

Product Overview
Product Type Power Distribution Unit (PDU)
Form Factor Rack-Mountable
Model APDU10452SM
Input Power 3-Phase 208V
Power Capacity (W) 17.3 kW
Power Capacity (VA) 17,300 VA
Input Plug Type IEC 60309 60A 3P+PE
Amperage 60A
Enclosure Color Black
Warranty 3-year repair or replace
Recommended Use Enterprise and data center power distribution
Mounting Orientation Vertical

Cloud Management & Licensing
Remote Monitoring Yes, via Ethernet
Software Support EcoStruxure IT, APC Data Center Expert
Cloud Management Platform EcoStruxure IT
License Requirement None for basic features
Alarm Management Yes – configurable thresholds and alerts

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
BAA Compliant Yes
Certifications UL 62368-1, cUL, CE, RoHS, REACH

Interfaces
Network Interface Ethernet
Management Ports 1 x RJ-45 Ethernet (10/100 Mbps)
Output Connection Types 21 x C13/C15 and 21 x Mixed C13/C15/C19/C21
Input Connector Type IEC 60309 60A 3P+PE
Total Number of Outlets 42
Switched Outlets Yes
Metered Outlets Yes
Remote Management Protocols HTTP, HTTPS, SNMP, Telnet, SSH, FTP

Physical & Environmental
Height 70.08 in (1780 mm)
Width 2.2 in (56 mm)
Depth 2.95 in (75 mm)
Weight 31.5 lbs (14.3 kg)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
Environmental Protection Rating IP44

Advanced Security Features
User Authentication Local and remote authentication with role-based access
Encryption Support SSL/TLS for web management, SSH for CLI access
Event Logging Yes – with syslog support
SNMP Versions Supported SNMPv1, v2c, v3
