APC NetShelter Rack PDU Advanced, Switched, 17.3kW, 48 Outlets

VENDOR: APC Mfg Part#: APDU10350SW UPC#: 731304439721
1 2
Photo is for illustration purposes only. Actual product may be different.
$4,083.00
$4,083.00
Sale Sold out
MSRP: $6,043.00
Shipping calculated at checkout.
  • - Switched 48-outlet Rack PDU with remote power control capabilities
  • - Supports up to 17.3kW power with 415V 3-phase input
  • - IEC 60309 30A 3P + N + PE connector for secure, high-capacity connection
  • - UL 62368-1 compliance and TAA-certified for regulatory alignment
  • - Space-saving design (2.2"W x 70.08"H) for vertical rack mounting
  • - Includes 3-year repair or replace service and support plan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers granular remote power management through switched outlets, ideal for centralized IT control.
  • Optimized for high-density power environments with 17.3kW output capacity and 415V 3-phase input.
  • Regulatory assurance with UL 62368-1 compliance and TAA certification for government or enterprise use.

Product Overview

The APC NetShelter Rack PDU Advanced, model APDU10350SW, is a high-performance, switched PDU designed for mission-critical setups. Supporting 17.3kW of power at 415V 3-phase with a compact rack-mountable design, it provides remote outlet-level control across 48 outlets using an IEC 60309 30A input connector. Built to UL 62368-1 and TAA standards, it's ideal for federal and enterprise deployments. Its 3-year service warranty and durable black housing make it a reliable choice for sustained operations.

Specifications

Product Overview
Product Type Switched Rack Power Distribution Unit (PDU)
Model Number APDU10350SW
Form Factor Vertical Rack-Mount (0U)
Power Capacity 17.3 kW
Output Voltage 240 V
Input Voltage 415 V
Input Phases 3-phase
Input Current 30 A
Input Connector Type IEC 60309 30A 3P+N+PE (530P6)
Number of Outlets 48

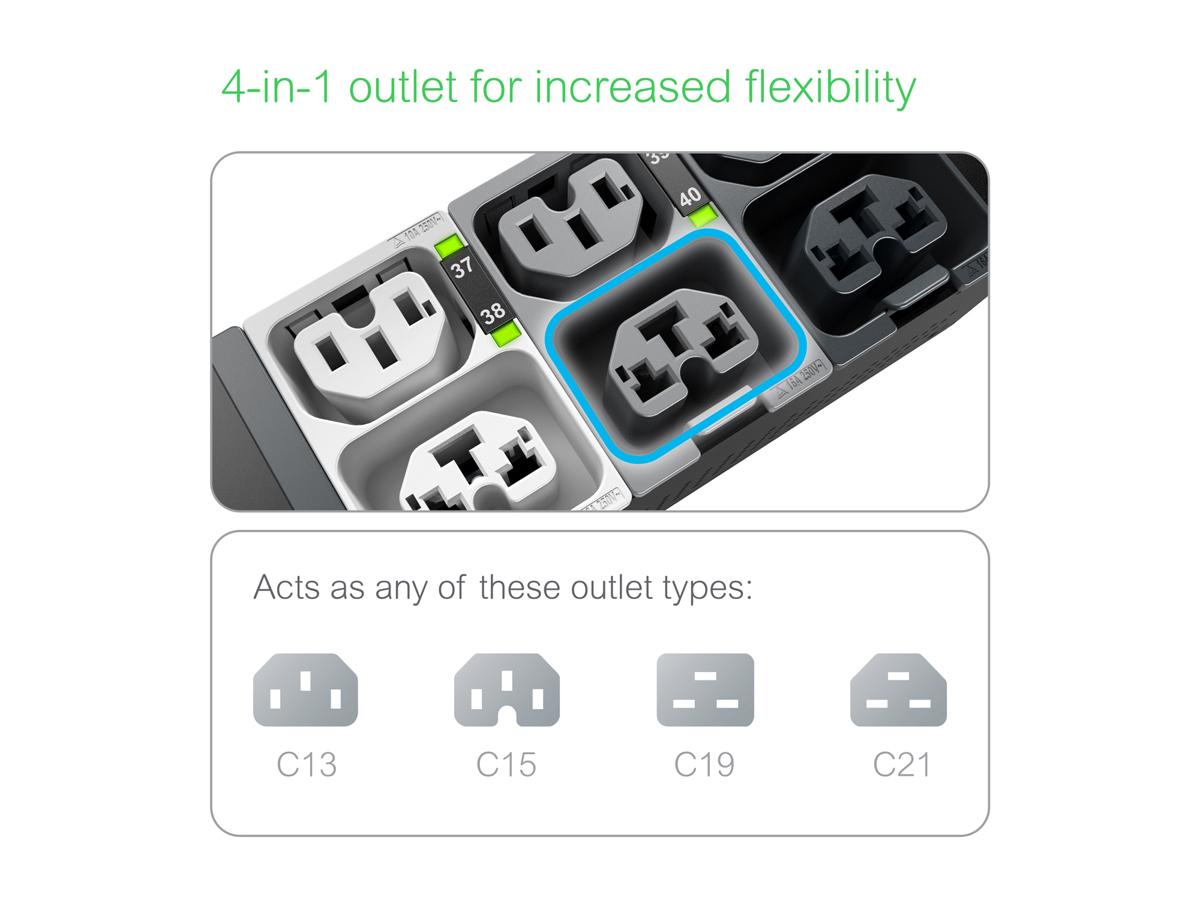

Outlet Types C13 and C19 (mixed)
Color Black
Warranty 3 years repair or replace

Physical & Environmental
Height 70.08 in (177.93 cm)
Width 2.2 in (5.59 cm)
Depth 2.95 in (7.49 cm)
Weight 18.2 lbs (8.25 kg)
Mounting Method Toolless Rack Mounting Supported
Operating Temperature Range 0°C to 60°C (32°F to 140°F)
Storage Temperature Range -25°C to 65°C (-13°F to 149°F)
Operating Humidity Range 5% to 95% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Operating Elevation 0-3000 m (0-10000 ft)

Cloud Management & Licensing
Cloud Management Capable Yes, via EcoStruxure IT and APC Data Center Expert
Firmware Upgradeable Yes, via USB or network
Management Software Included Yes, downloadable from Schneider Electric
License Requirement No license required for base functionality

Interfaces
Network Interface RJ-45 Ethernet (10/100 Mbps)
Remote Outlet Management Yes, switched outlet-level
Serial Port Yes, RS-232 (RJ-45)
USB Port Yes, for firmware upgrade and device access
Data Transfer Protocols Supported SNMPv1/v3, HTTP, HTTPS, Modbus TCP, Telnet, SSH
Web Interface Yes
Environmental Monitoring Ports 2 Sensor Ports (Temperature/Humidity sensors supported)

Compliance & Origin
Compliance Standards UL 62368-1, IEC 62368-1, cUL Listed
Certifications TAA Compliant, RoHS, REACH
Country of Origin United States
UPC 731304439721

Advanced Security Features
Authentication Methods Local User Authentication, RADIUS, LDAP
Encryption Protocols SSL/TLS, SSH
Access Control Role-based user access control
Event and Alarm Notification Email, SNMP Traps, Syslog support
Audit Logs Yes, with downloadable system log
