APC NetShelter Rack PDU, Switched, 5KW, 208V, L6-30P, 40-Outlet

VENDOR: APC Mfg Part#: APDU10151SW UPC#: 731304439776
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,313.00
$3,313.00
Sale Sold out
MSRP: $4,905.00
Shipping calculated at checkout.
  • 5.0KW power capacity with 208V 1-phase input
  • Vertical (0U) rack form factor saves critical rack space
  • 40 output connectors including C13, C15, C19, and C21 types
  • Switched PDU design enables remote outlet control and monitoring
  • NEMA L6-30P input plug supports 30A power delivery
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers reliable high-density power—supports up to 40 outlets in a compact 0U profile
  • Switched configuration enables remote management for uptime-critical operations
  • Backed by a 3-year warranty and made in the U.S., ensuring long-term durability and TAA compliance

Product Overview

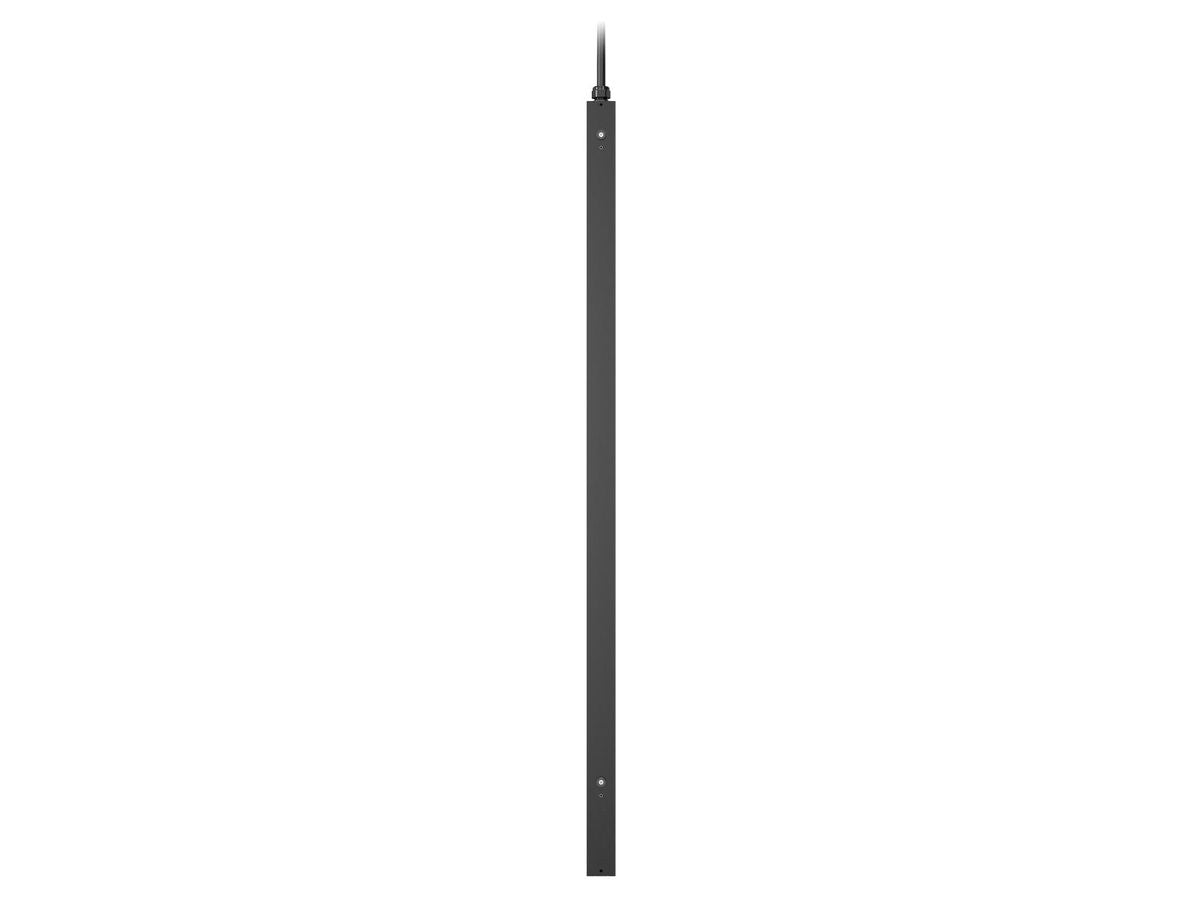

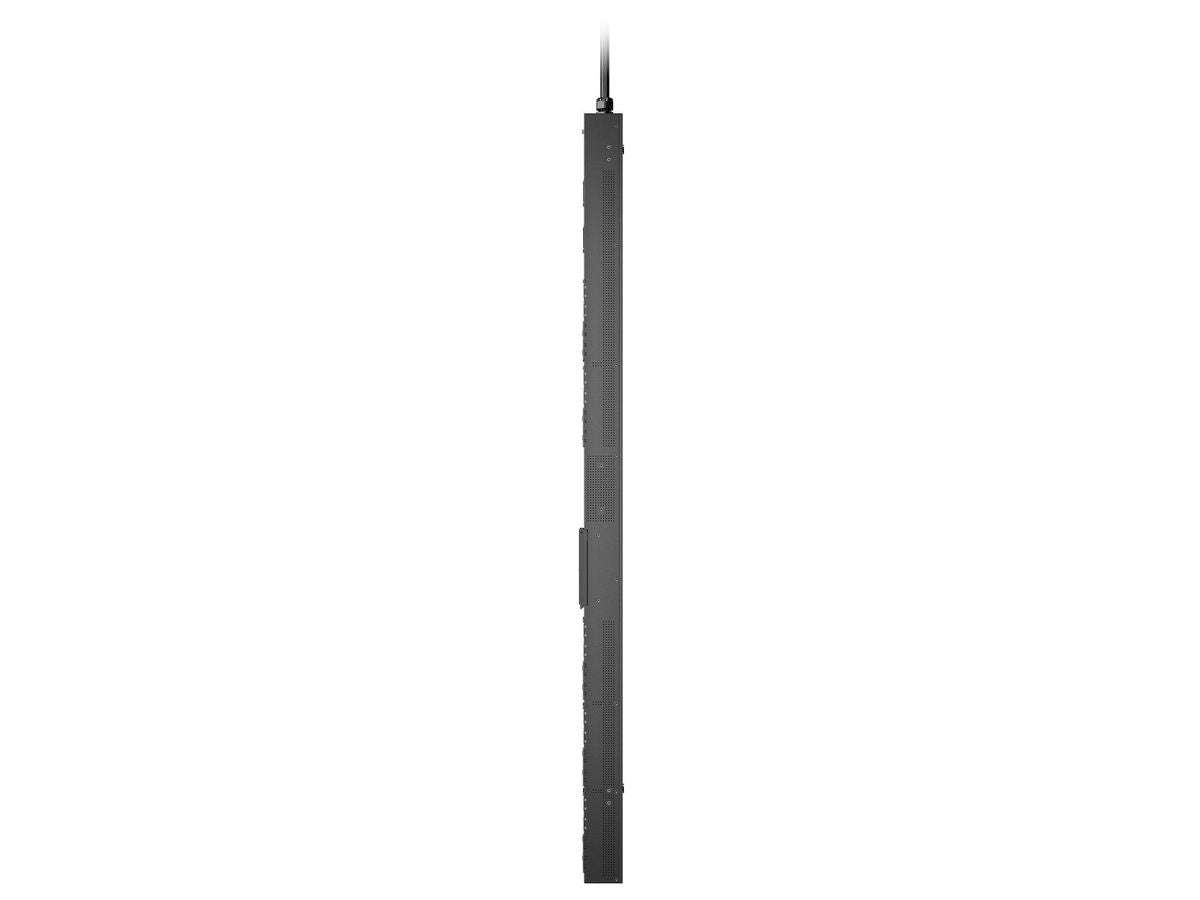

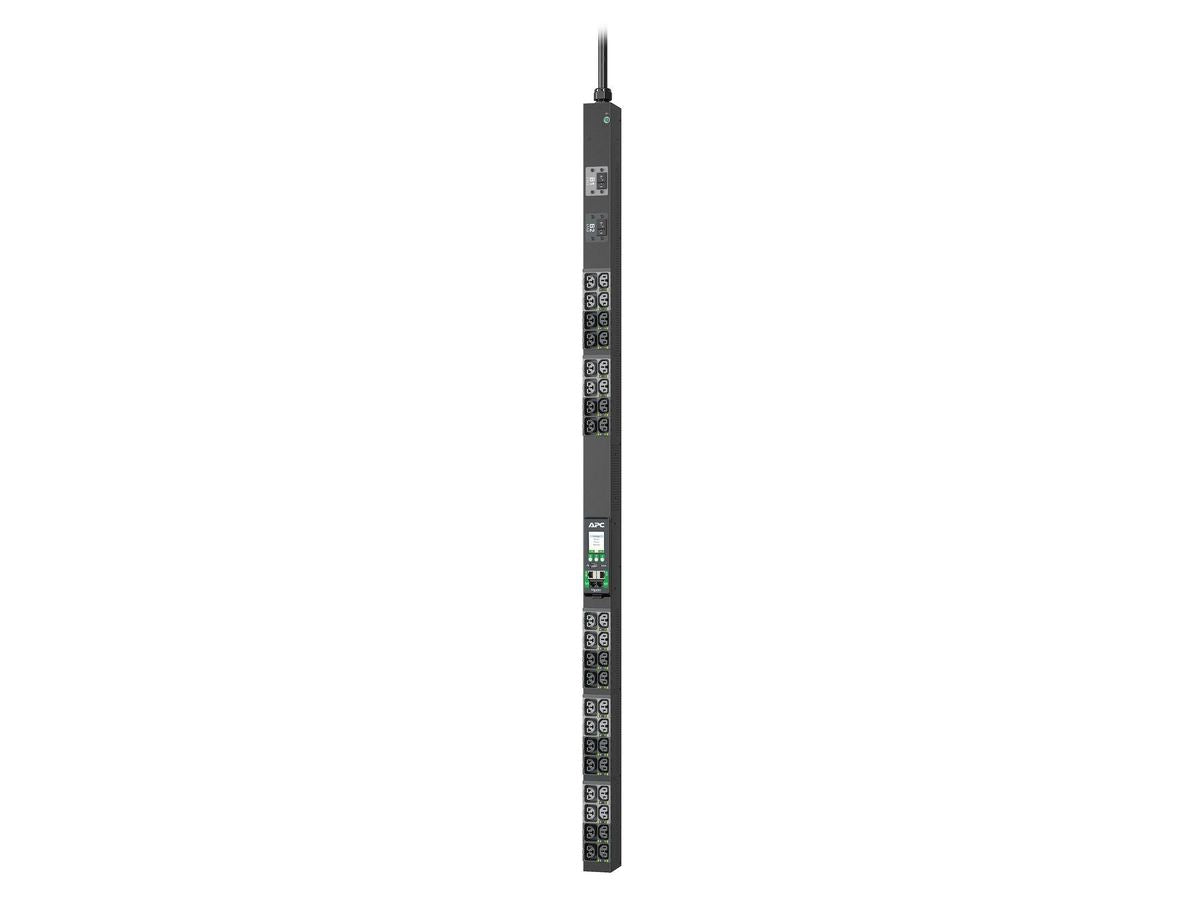

The APC NetShelter Rack PDU Advanced (APDU10151SW) delivers 5.0KW of power through a 208V single-phase input, distributing energy via 40 mixed outlets (C13/C15/C19/C21). Designed in a vertical 0U configuration, it maximizes rack space while supporting remote switched control for enhanced power management. With a 30A NEMA L6-30P input and 4992 VA output, this TAA-compliant unit is engineered for high-efficiency and critical IT deployments. Its 3-year warranty and U.S. manufacturing origin reinforce durability and trust for enterprise data environments.

Specifications

Product Overview
Manufacturer APC
Model APDU10151SW
Product Type Switched Rack Power Distribution Unit (PDU)
Form Factor Vertical (0U)
Mounting Rack-mountable (0U vertical)
Input Voltage 208 V AC (Single Phase)
Output Power Capacity 4992 VA / 5.0 kW
Input Current 30 A
Power Plug Type NEMA L6-30P
Color Black
Warranty 3-Year Warranty

Cloud Management & Licensing
Remote Management Yes, via Web, SNMP, CLI
Supported Protocols HTTP, HTTPS, SNMPv1/v2c/v3, Telnet, SSH
Cloud Platform Support EcoStruxure IT ready
Firmware Upgradable Yes, via USB or network
User Access Levels Role-based authentication

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
Certifications UL, cUL, CE, FCC Class A, RoHS, REACH
Environmental Compliance RoHS compliant, REACH compliant

Interfaces
Input Connector Type 1 x NEMA L6-30P
Output Connector Types 20 x C13/C15, 20 x C19/C21
Total Outlet Count 40 outlets
Switched Outlets Yes, individually switched
Network Management Port 1 x Ethernet (RJ-45)
Serial Port 1 x RJ-45 (RS-232)
USB Ports 1 x Type A for firmware upgrades

Physical & Environmental
Height 58.7 in (1492 mm)
Width 2.2 in (56 mm)
Depth 2.95 in (75 mm)
Maximum Operating Elevation 3000 m
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 60°C (140°F)
Operating Relative Humidity 5% to 95% (non-condensing)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Storage Relative Humidity 5% to 95% (non-condensing)
Storage Elevation 0-15000 m

Advanced Security Features
User Authentication Role-based with password protection
Encryption Protocols SSL, SSH
Access Control IP/MAC-based filtering
Log Management Event and access logging over SNMP/syslog
