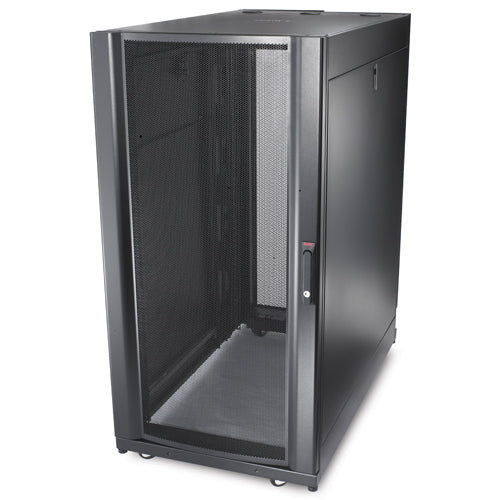

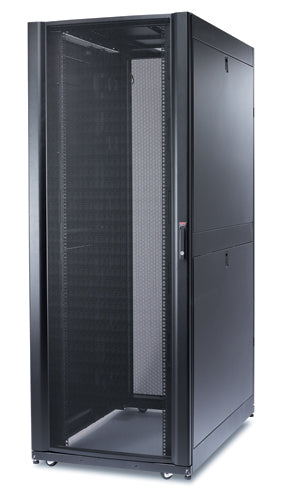

APC NetShelter SX 48U Enclosure with Sides, Black (AR3357)

VENDOR: APC Mfg Part#: AR3357 UPC#: 731304259367
1 2
Photo is for illustration purposes only. Actual product may be different.
$5,704.00
$5,704.00
Sale Sold out
MSRP: $8,299.00
Shipping calculated at checkout.
  • 48U rack enclosure with side panels for secure, high-density IT deployments
  • 750mm width and 1200mm depth supports improved cable routing and airflow
  • RoHS compliant and TAA compliant for governmental and regulated market use
  • Durable black finish with dimensions: height 225.8 cm, depth 120 cm
  • 5-year repair or replacement service for long-term support
  • Manufactured in the United States for enhanced quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-density enterprise IT environments with its 48U frame and 1200mm depth
  • TAA compliance and RoHS certification make it suitable for federal and environmentally regulated projects
  • Backed by a 5-year warranty reflecting long-term investment protection and manufacturer reliability

Product Overview

The APC NetShelter SX 48U Enclosure (AR3357) is designed for scalable server and network equipment housing in enterprise IT environments. With a height of 225.8 cm, width of 750mm, and depth of 1200mm, it supports high-density deployments and enhances cable and airflow management. This black rack enclosure includes side panels for improved physical security and thermal performance. Built in the USA, it is TAA-compliant, RoHS-certified, and backed by a 5-year repair/replacement warranty, making it a reliable infrastructure asset for demanding data center applications.

Specifications

Product Overview
Product Type Rack enclosure
Form Factor 48U
Color Black
Weight 171.1 kg
Power Requirements Not applicable (passive equipment rack)
Features Includes side panels for improved thermal and physical security
Warranty 5 year repair or replace

Physical & Environmental
Height 225.8 cm
Width 75 cm
Depth 120 cm
Rack Width 19 in (standard rack width)
Maximum Mounting Depth 1070 mm
Minimum Mounting Depth 229 mm
Static Load Capacity 1363.6 kg
Dynamic Load Capacity 1022.7 kg
Ventilation Perforated front and rear doors for optimized airflow
Material Steel frame with sheet steel panels
Mounting Rails Adjustable vertical mounting rails with square holes
Leveling Feet Yes
Casters Pre-installed
Operating Temperature Range 0 to 45°C
Operating Humidity Range 5% to 85% non-condensing

Cloud Management & Licensing
Remote Management Supported via optional NetBotz or rack PDU accessories
Integrated Monitoring No, optional via accessories
License Requirement None for enclosure; applicable for monitoring accessories

Interfaces
Cable Access Slots Yes, top and bottom
Number of Cable Entry Points 5
Grounding Provisions Yes
Frame Type Welded steel frame
Rear Door Split perforated
Front Door Perforated
Side Panels Lockable, removable

Compliance & Origin
Country of Origin United States
TAA Compliance Yes
RoHS Compliance Yes
Certifications UL 2416, EIA-310-E
