| Product Type | Power Distribution Module (PDM) |
| Model Number | PDM2330L6-23-1680 |
| Manufacturer | APC |
| Form Factor | Modular |
| Color | Black |
| Weight | Approximately 14.5 lbs (6.58 kg) |
| Power Input Voltage | 208V |
| Power Output Voltage | 208V |
| Power Rating | 30A |
| Number of Poles | 2-pole |
| Wire Configuration | 3-wire (L2-L3-G) |
| Cable Length | 1680 cm (55.1 feet) |
| Warranty | 1 year repair or replace |

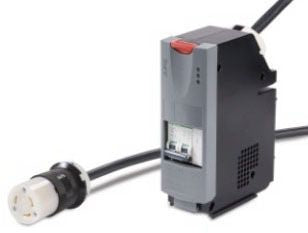

APC PDM2330L6-23-1680 Power Distribution Module, 30A, 208V
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,507.00
Regular price
Sale price
$1,507.00
Unit price
per
MSRP: $2,268.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 30A, 208V output power with two-pole, three-wire L2-L3 configuration
- Includes 1 NEMA L6-30R locking output connector
- 1680 cm cable length for extended deployment reach
- Complies with RoHS and TAA standards
- Compact enclosure: 17.48" W x 15.98" D x 5" H
- Made in the United States with 1-year repair/replace support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers high-capacity 30A, 208V power distribution, ideal for dense IT environments
- TAA and RoHS compliance ensure suitability for government and enterprise installations
- Extended 1680 cm cable and compact design offer flexible deployment across racks
Product Overview
The APC PDM2330L6-23-1680 IT Power Distribution Module offers a reliable and secure method to distribute 30A, 208V power in data centers and mission-critical IT environments. Engineered for two-pole, three-wire L2-L3 configurations, it includes a NEMA L6-30R locking connector and a 1680 cm cable, supporting flexibility in rack setups. The compact black housing (17.48" x 15.98" x 5") ensures installation versatility while conserving space. With RoHS and TAA compliance and a 1-year repair/replacement warranty, this U.S.-made module meets enterprise and regulatory standards for dependable infrastructure integration.
Specifications
Product Overview
Physical & Environmental
| Width | 17.48 inches (444 mm) |
| Depth | 15.98 inches (406 mm) |
| Height | 5 inches (127 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 65°C (-13°F to 149°F) |
| Operating Humidity | 0% to 95% RH, non-condensing |
| IP Protection Rating | IP20 |
| Heat Dissipation | Less than 50 BTU/hr |
Cloud Management & Licensing
| Remote Monitoring Capable | No |
| Included Software | |
| Licensing Requirements | Not applicable |
Interfaces
| Output Connector Type | NEMA L6-30R |
| Number of Output Connectors | 1 |
| Input Connection | Factory-wired cable |
| Input Plug Type | Hardwired or custom to match system configuration |
| Mounting Type | Rack-mountable or wall-mounted |
Compliance & Origin
| Country of Origin | United States |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| REACH Regulation | Yes |
| Certifications | UL Listed, CSA Certified |
| Environmental Standards | RoHS, REACH |
Advanced Security Features
| Circuit Protection | Integrated overcurrent protection |
| Surge Protection | No |
| Redundancy | No built-in redundancy |
