| Manufacturer | APC |
| Model Name | Smart-UPS 2200VA LCD Rackmount |
| Manufacturer Part Number | SMT2200R2X658 |
| UPS Type | Line-interactive |
| Form Factor | Rackmount 2U |
| Rack Units | 2U |
| Nominal Output Power Capacity | 1920 Watts / 1920 VA |
| Output Voltage | 120 V |
| Input Voltage | 120 V |
| Waveform Type | Sine wave |
| Battery Type | Lead-acid |
| Battery Recharge Time | 3 hours |
| Battery Runtime (Full Load) | 6.7 minutes |
| Battery Runtime (Half Load) | 19.8 minutes |
| Hot-swappable Battery | Yes |
| User-replaceable Battery | Yes |
| Color | Black |
| Power Consumption (Standby) | 31 Watts |
| Power Requirements | 120 V at 60 Hz |

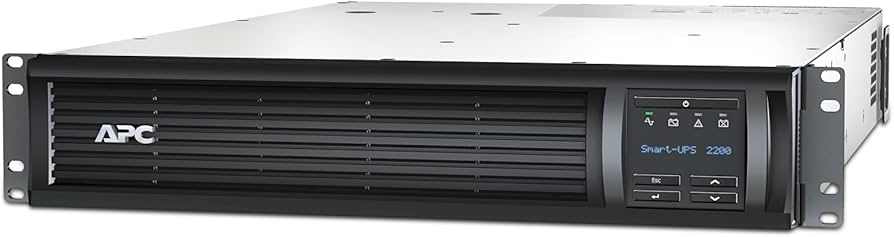

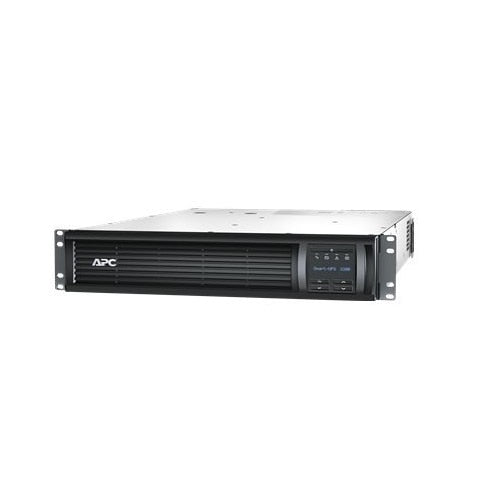

APC Smart-UPS 2200VA LCD Rackmount 2U 120V (SMT2200R2X658)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,509.00
Regular price
Sale price
$2,509.00
Unit price
per
MSRP: $3,725.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 2U rackmount UPS providing 1920 Watts / 1920 VA power output
- 120V nominal input/output with NEMA 5-20P input and 6 NEMA 5-15R + 2 NEMA 5-20R outlets
- LCD interface for detailed UPS status and configuration
- Uses reliable lead-acid battery technology
- TAA-compliant and manufactured in the United States
- 3-year repair/replacement warranty (2 years on battery)
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers robust 1920W capacity to protect mission-critical infrastructure from power failures
- Rackmountable 2U form factor saves space while supporting high-density IT environments
- TAA compliance and U.S. manufacturing ensure trusted quality for government and enterprise buyers
Product Overview
The APC Smart-UPS 2200VA LCD Rackmount (SMT2200R2X658) delivers 1920 watts / 1920 VA through a 2U rackmount form factor with 120V output and an LCD status screen for easy monitoring. It includes 6 NEMA 5-15R and 2 NEMA 5-20R outlets powered by a lead-acid battery and accepts input via a NEMA 5-20P connector. Its TAA compliance, 3-year warranty, and U.S. origin make it ideal for professional and government power backup uses.
Specifications
Product Overview
Physical & Environmental
| Width | 18.9 inches |
| Depth | 26.9 inches |
| Height | 3.4 inches |
| Net Weight | 96.35 lbs (43.7 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0 to 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Storage Elevation | 0-15000 ft (0-4572 m) |
| Audible Noise at 1 Meter | 55 dBA |
| Mounting Type | Rack-mountable |
Cloud Management & Licensing
| LCD Display | Yes |
| SmartSlot Expansion Compatible | Yes |
| Network Management Card Support | Optional (AP9630/AP9631) |
| Remote Management | Optional with network card |
Interfaces
| Input Connector Type | NEMA 5-20P |
| Output Connector Types | 6 x NEMA 5-15R, 2 x NEMA 5-20R |
| Communication Interfaces | SmartSlot, USB, Serial |
| Number of Output Connections | 8 |
| Data Line Protection | RJ-45/RJ-11 combo |
| Surge Protection | Yes |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | United States |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, ENERGY STAR |
| RoHS Compliant | Yes |
| Warranty | 3 years repair or replace (excluding battery), 2 years for battery |
Advanced Security Features
| Event Notification | Audible and visual alarms |
| Surge Energy Rating | 459 Joules |
