APC Smart-UPS VT Maintenance Bypass Panel 10-30kVA Wall Mount

VENDOR: APC Mfg Part#: SBPSU10K30FC1M1-WP UPC#: 731304218456
1 1

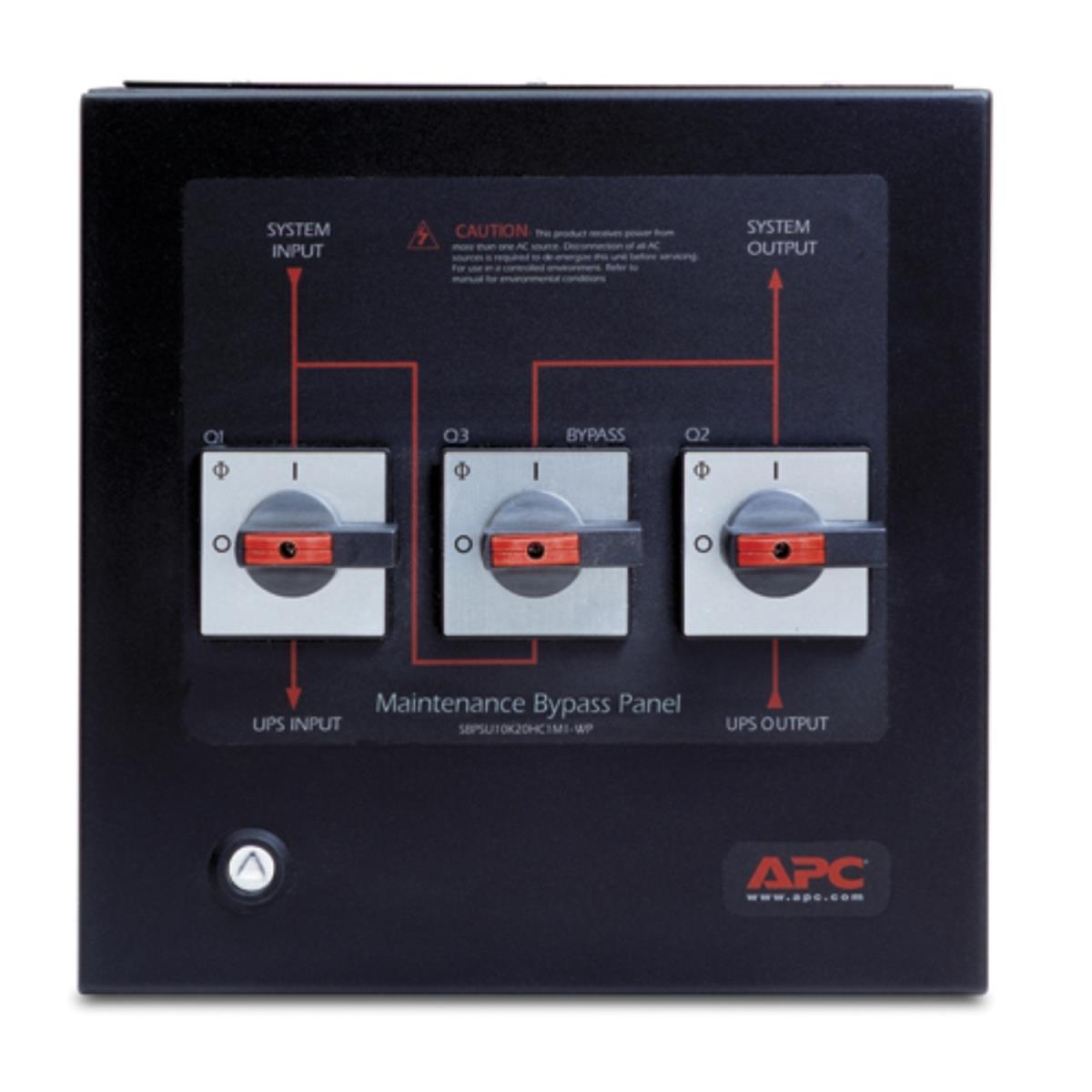

Photo is for illustration purposes only. Actual product may be different.
$5,241.00
$5,241.00
Sale Sold out
MSRP: $7,852.00
Shipping calculated at checkout.
  • Bypass switch supports UPS systems from 10 to 30 kVA at 208V
  • Wall-mountable external form factor with black enclosure
  • Hardwired input and output connectors for secure installation
  • 42-position distribution panel for efficient load management
  • Circuit breaker for integrated circuit protection
  • UL, cUL, UL 1778 safety compliance and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 30,000 VA power capacity, ideal for enterprise and industrial UPS needs
  • Wall-mountable form saves valuable floor space in power rooms or server areas
  • TAA and UL compliance ensures suitability for regulated and government environments

Product Overview

The APC Smart-UPS VT Maintenance Bypass Panel is a high-capacity power distribution accessory developed for use with UPS systems ranging from 10–30kVA at 208V. This external, wall-mounted bypass switch features hardwired input/output, a 42-position distribution panel, and circuit breaker protection to ensure safe power redirection during maintenance. With a 30,000 VA max capacity, it's suited for enterprise-level applications. Certified by UL and TAA-compliant for regulatory environments, and built in the USA, this panel is a reliable choice for secure, scalable deployment.

Specifications

Product Overview
Product Type Maintenance Bypass Panel
Compatible UPS Range 10–30 kVA
Maximum Supported Load 30,000 VA
Form Factor External wall-mount
Mounting Type Wall-mounted
Power Requirements AC 208 V
Voltage Output AC 120/208 V
Input Connector Type Hardwire
Output Connector Type Hardwire
Circuit Protection Type Circuit Breaker
Service & Support 1 year repair or replace

Physical & Environmental
Width 37.4 in
Depth 7.8 in
Height 29.5 in
Enclosure Color Black
Enclosure Type Steel
Mounting Location Indoor
UPS Battery Included No

Cloud Management & Licensing
Remote Monitoring Capability No (Not applicable for bypass panel)

Interfaces
Input Connections Hardwired
Output Connections Hardwired
Distribution Panel 42-position

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Compliance Standards UL, cUL, UL 1778

Advanced Security Features
Integrated Security Features None (passive power redirection device)
