APC Smart-UPS X 2000VA Rack/Tower Convertible, Short Depth

VENDOR: APC Mfg Part#: SMX2000LVNCUS UPC#: 731304339144
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,853.00
$3,853.00
Sale Sold out
MSRP: $5,769.00
Shipping calculated at checkout.
  • 2000VA / 1800W line-interactive UPS with pure sine-wave output
  • Short-depth 4U rack/tower convertible form factor (19.02" depth)
  • Multiple NEMA outlets: 6x 5-15R, 3x 5-20R, 1x L5-20R for device compatibility
  • Runtime of approx. 10 min 56 sec at full 1800W load
  • Pre-installed network management card for remote monitoring
  • TAA-compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers reliable power backup with 2000VA/1800W capacity for critical IT operations.
  • Compact short-depth rack-mountable design saves space in constrained enclosures.
  • Complies with TAA regulations, making it ideal for federal and institutional buyers.

Product Overview

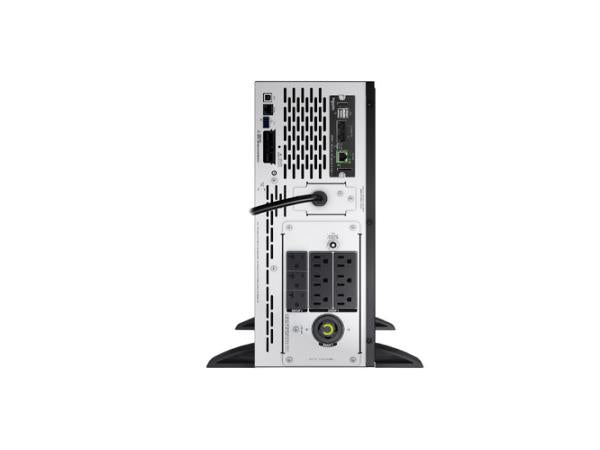

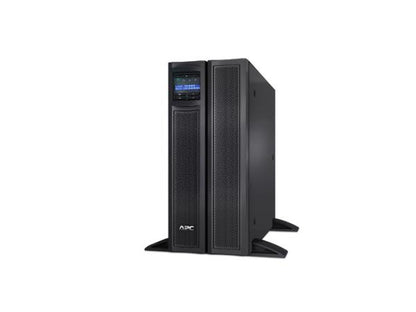

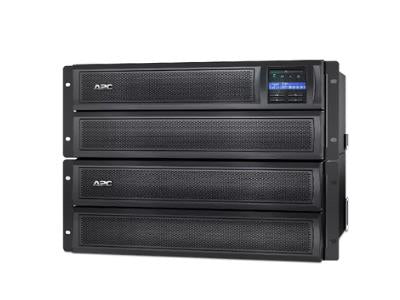

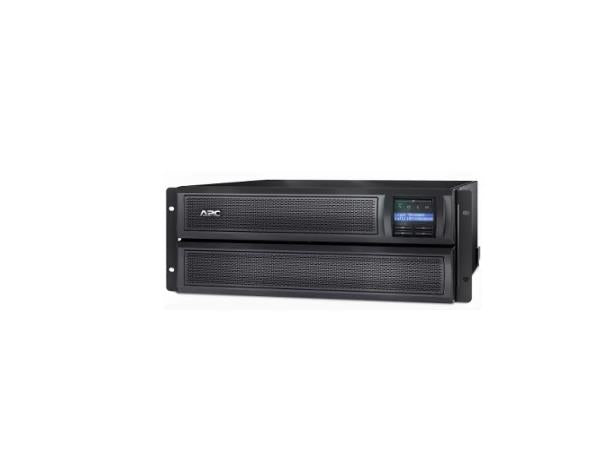

The APC Smart-UPS X 2000VA is a highly efficient and space‑conscious uninterruptible power supply designed for high-demand IT environments and TAA-compliant installations. Offering 2000VA/1800W of power through line-interactive technology, it provides robust protection while maximizing energy efficiency. Its 4U rack/tower convertible design and short 19.02-inch depth make it ideal for shallow enclosures and tight spaces.

Equipped with a NEMA 5-20P input and a rich mix of output connectors, including NEMA 5-15R, 5-20R, and L5-20R, this UPS supports a broad range of IT equipment. Its integrated network management card supports remote monitoring, while the lead-acid battery provides nearly 11 minutes of runtime at full 1800W load. Backed by a 3-year manufacturer warranty and manufactured in the USA, this unit is built for dependability in mission-critical environments.

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model APC Smart-UPS X
Form Factor Rack/Tower Convertible
Rack Height 4U
UPS Topology Line-interactive
Power Capacity 2000 VA / 1800 Watts
Voltage Output 120 V
Voltage Input 120 V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Output Frequency 50/60 Hz +/- 3 Hz (sync to mains)
Waveform Type Sine wave
Battery Type Lead-acid
Battery Runtime at Full Load 10 minutes 56 seconds (at 1800W)
Battery Recharge Time 3 hours
Hot-Swappable Batteries Yes
Replaceable Battery Yes
Weight 85.19 lb (38.64 kg)
Enclosure Color Black
Power Consumption (No Load) 32 watts

Physical & Environmental
Width 7.01 in (178 mm)
Depth 19.02 in (483 mm)
Height 17.01 in (432 mm)
Minimum Operating Temperature 32 °F (0 °C)
Maximum Operating Temperature 104 °F (40 °C)
Operating Humidity Range 0 – 95% (non-condensing)
Storage Temperature Range 5 – 113°F (-15 – 45°C)
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Acoustic Noise Level 45 dBA

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA, FCC Part 15 Class A
RoHS Compliant Yes
Warranty 3-Year Manufacturer Warranty (2 years for battery)

Interfaces
Input Connector NEMA 5-20P
Output Connectors 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-20R
Available Management Interfaces USB, Serial, SmartSlot, Ethernet (with network management card)
Network Management Card Integrated
Control Panel Multifunction LCD status and control console

Cloud Management & Licensing
Remote Management Yes, via integrated Network Management Card
Supported Management Software PowerChute Network Shutdown, APC UPS Network Management Software
SmartConnect Support No
