Products Memory, Storage and Components APC Smart-UPS X 3000VA Shor...

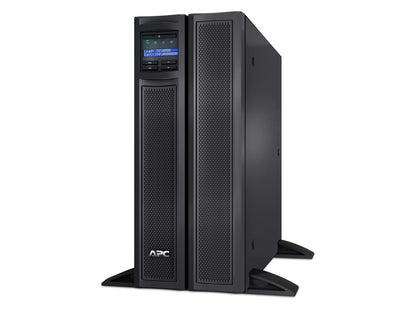

APC Smart-UPS X 3000VA Short Depth Tower SMX3000HVTUS

VENDOR: APC Mfg Part#: SMX3000HVTUS UPC#: 731304340393
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,834.00
$3,834.00
Sale Sold out
MSRP: $5,740.00
Shipping calculated at checkout.
  • Line-interactive topology with 208 V input and 2700W output power
  • SmartSlot and USB connectivity for customizable management
  • Multiple output options: 2 NEMA L6-20R, 4 IEC C13, 3 IEC jumpers, 2 IEC C19
  • Rack-mountable short depth form factor for space-constrained environments
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for rack-mount installations with a space-saving short-depth design
  • Provides 2700W of reliable power output to support critical systems and minimize downtime
  • TAA compliance and US manufacturing meet federal procurement and security standards

Product Overview

The APC Smart-UPS X 3000VA Short Depth Tower (SMX3000HVTUS) is engineered for performance in demanding rack-mounted power protection scenarios. With a robust 2700W output capacity and 208 V line-interactive topology, it supports critical infrastructure such as servers, networking equipment, and edge computing nodes. The short-depth format makes this UPS particularly suited for installations where space is at a premium, providing higher power density without compromising on accessibility or integration options.

Connectivity is a stand-out feature, offering flexible power distribution through 2 NEMA L6-20R, 4 IEC 320 C13, 3 IEC jumpers, and 2 IEC 320 C19 outlets, enabling compatibility with a broad range of IT hardware. Its SmartSlot capability allows for optional management card upgrades, while USB and other native interfaces streamline communication with monitoring systems. TAA compliance ensures its suitability for government and regulated industry applications, and the unit's US origin supports Buy American procurement practices.

Ideal for IT managers and administrators needing reliable backup and ease of integration in rack deployments, the SMX3000HVTUS minimizes downtime while delivering high efficiency. Its design exemplifies APC's commitment to manageable, scalable, and secure backup power solutions.

Specifications

Product Overview
Product Type UPS (Uninterruptible Power Supply)
Topology Line-Interactive
Mounting Form Factor Short Depth Tower / Rack-mountable
Output Power Capacity 2700 Watts / 3000 VA
Nominal Input Voltage 208V
Nominal Output Voltage 208V
Waveform Type Sine wave
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Replaceable Battery Yes
Hot-Swappable Battery Yes
Efficiency at Full Load 98%
Input Frequency 50/60 Hz ±3 Hz (auto sensing)
UPS Technology Smart-UPS with SmartSlot

Physical & Environmental
Width 8.6 inches (219 mm)
Height 17 inches (432 mm)
Depth 21.1 inches (536 mm)
Rack Height 4U
Net Weight 118 lbs (53.64 kg)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Storage Relative Humidity 0 – 95% (non-condensing)
Audible Noise 55 dBA

Cloud Management & Licensing
Management Software PowerChute Business Edition (optional)
Remote Management Optional with AP9630/AP9631 Network Management Card
Upgradeable Firmware Yes
SmartSlot Compatibility Yes
LCD Display Multifunction LCD status and control console

Interfaces

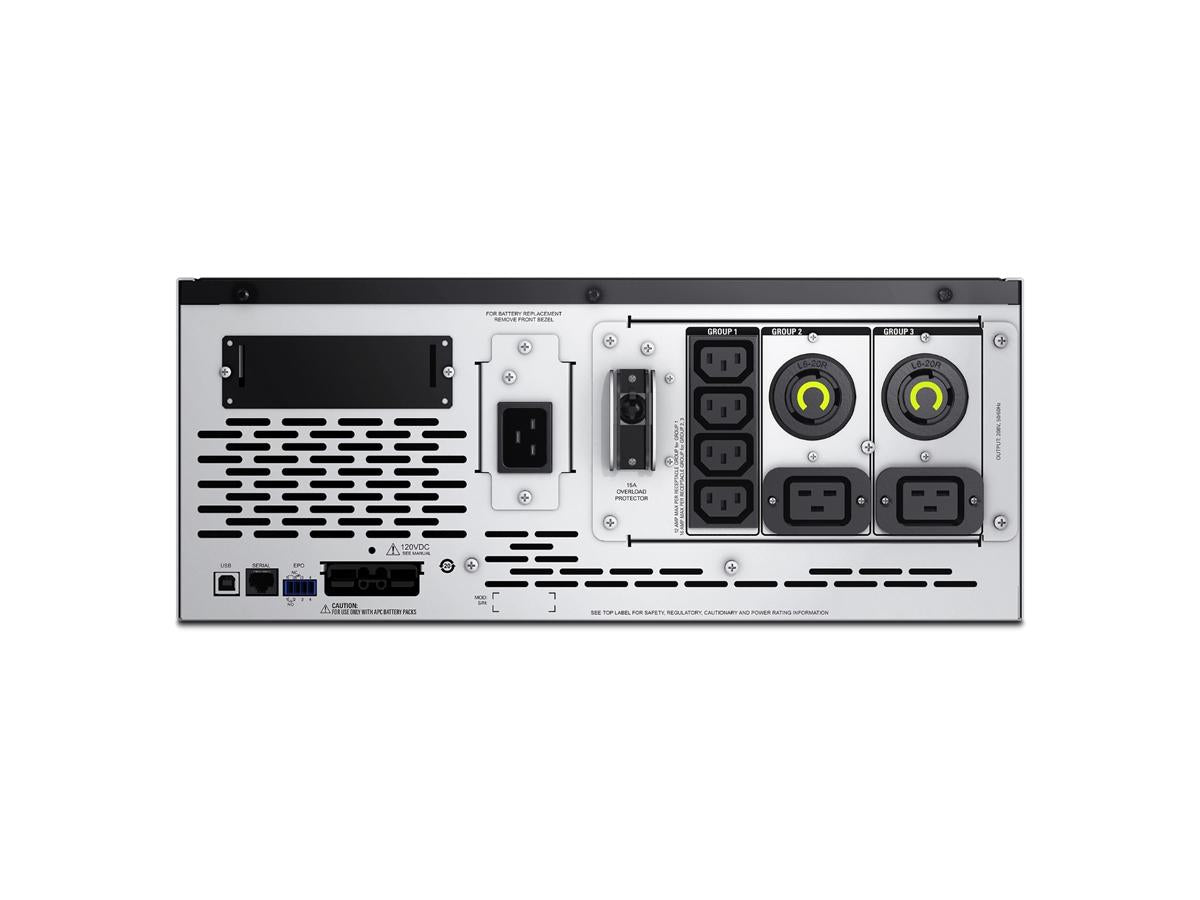

Power Output Connections 2 x NEMA L6-20R, 2 x IEC 320 C19, 4 x IEC 320 C13, 3 x IEC Jumpers
Input Connection Type NEMA L6-30P
Input Cord Length 8 ft (2.44 m)
SmartSlot Expansion Port 1 SmartSlot
USB Interface Port Yes
Serial Communication Port 1 x DB-9 RS-232

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliance Yes
Certifications UL 1778, FCC Part 15 Class A, ENERGY STAR qualified
RoHS Compliance Yes
