APC SurgeArrest Panelmount 120/240V 120KA with Surge Counter

VENDOR: APC Mfg Part#: PMP3S-A UPC#: 731304265061
1 2
Photo is for illustration purposes only. Actual product may be different.
$2,192.00
$2,192.00
Sale Sold out
MSRP: $3,305.00
Shipping calculated at checkout.
  • Supports 120V and 230V input voltage for versatile application use.
  • Hardwire 3-wire (2PH + G) connector enables secure panel integration.
  • Surge counter functionality provides operational diagnostics.
  • TAA-compliant and manufactured in the United States.
  • Conforms to UL 1283, UL 1449, and cUL safety standards.
  • Includes a 10-year manufacturer warranty for long-term support.

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-capacity surge suppression (120KA) suitable for commercial and industrial safety infrastructure.
  • TAA compliance and UL certifications make it ideal for government or federally funded installations.
  • Backed by a 10-year warranty and reliable US-based manufacturing for assured long-term performance.

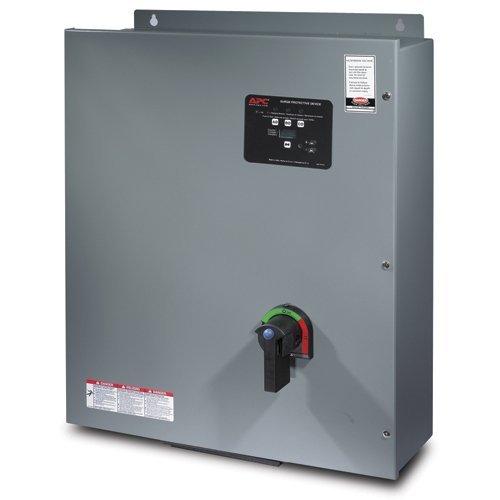

Product Overview

The APC SurgeArrest Panelmount 240/120V 120KA with Surge Counter is a robust industrial-grade surge suppressor supporting both 120V and 230V inputs. Featuring a durable hardwire 3-wire (2PH + G) connection and a surge counter, it ensures protection for mission-critical equipment. Built in a 12" x 12" x 6" grey enclosure, it meets UL 1283, UL 1449, and cUL Listed standards. This TAA-compliant device includes a 10-year warranty and is made in the United States, making it ideal for industrial and government applications that require reliable, long-term surge suppression.

Specifications

Product Overview
Product Type Surge suppressor
Form Factor Panel mount
Input Voltage Range 120V / 240V
Maximum Surge Current Capacity 120 kA
Surge Counter Yes
Power Requirements Hardwire 3-wire (2PH + G)
Enclosure Color Grey
Warranty 10 years

Physical & Environmental
Width 12 in
Height 12 in
Depth 6 in
Enclosure Type Industrial metal enclosure
Mounting Type Wall mount (panel mount)
Weight 17.6 lb
Operating Temperature Range -40°C to 85°C
Operating Humidity 0–95% non-condensing
Storage Temperature Range -40°C to 85°C

Cloud Management & Licensing
Cloud Management Capabilities No
Included Software None
Subscription Required No

Interfaces
Input Connection Type Hardwire 3-wire (2PH + G)
Number of Input Phases 2 + Ground
Data Line Protection No
Remote Monitoring Interface None

Compliance & Origin
Certifications UL 1283, UL 1449, cUL Listed
TAA Compliant Yes
Country of Origin United States
RoHS Compliance Yes
REACH Compliance Yes

Advanced Security Features
EMI/RFI Noise Rejection Yes
Surge Protection Technology MOV (Metal Oxide Varistor) based suppression
Clamp Voltage 600V L-N, 600V L-G, 600V N-G
Response Time <1 ns
Thermal Protection Yes
