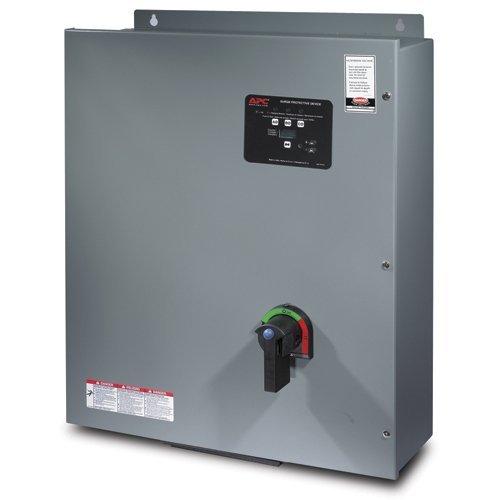

APC SurgeArrest Panelmount 240/120V 160KA with Disconnect

VENDOR: APC Mfg Part#: PMP4DS-A UPC#: 731304265108
1 2

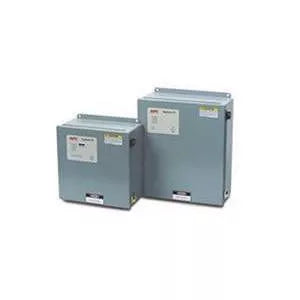

Photo is for illustration purposes only. Actual product may be different.
$3,063.00
$3,063.00
Sale Sold out
MSRP: $4,613.00
Shipping calculated at checkout.
  • Supports 120V and 230V input for versatile deployment
  • Hard wire 3-wire (2PH + G) design suitable for fixed installation
  • Includes disconnect and surge counter for maintenance tracking
  • UL 1283, UL 1449, and cUL listed for certified safety compliance
  • TAA compliant and manufactured in the United States
  • Enclosure dimensions: 20" W x 16" D x 6" H in grey finish

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for durability and long-term use with a 10-year warranty
  • Ideal for commercial and industrial settings requiring TAA-compliant gear
  • Incorporates surge counter and disconnect, reducing downtime and improving safety checks

Product Overview

The APC SurgeArrest Panelmount 240/120V 160KA with Disconnect and Surge Counter is engineered for environments where reliable power protection is critical. Designed as a hard-wired surge suppressor, it supports input voltages of 120V and 230V, making it suitable for both residential panels and industrial setups. The 3-wire (2PH + G) configuration ensures flexible integration in various power frameworks.

With a disconnect switch and surge counter, the unit streamlines monitoring and maintenance. Its UL/cUL listed panel-mount enclosure, measuring 20"x16"x6", offers a solid design for heavy-duty applications. TAA compliance and a 10-year warranty enhance long-term investment confidence.

Specifications

Product Overview
Type Hard-wired Surge Suppressor
Form Factor Panel Mount
Voltage Required 120V, 230V
Current Capacity 160 kA
Configuration 3-wire (2PH + G)
Power Switch Integrated Disconnect Switch
Surge Counter Yes
Enclosure Color Grey
Warranty 10 years

Physical & Environmental
Width 20 in
Depth 16 in
Height 6 in
Mount Type Panel Mount
Indoor/Outdoor Indoor
Enclosure Material Metal
Operating Temperature 0 to 60 °C
Storage Temperature -25 to 65 °C
Relative Humidity (Operating) 0 to 95% non-condensing
Vibration Resistance IEC 68-2-6

Advanced Security Features
Surge Suppression Technology MOV (Metal Oxide Varistor)
AC Protection Modes L-L, L-G, L-N, N-G
Noise Filtering Yes
Response Time <1 ns
Maximum Continuous Operating Voltage (MCOV) 150V L-N, 300V L-L

Interfaces
Input Connector(s) Hardwire
Number of Input Phases 2
Ground Connection Yes (G)

Compliance & Origin
Compliance Standards UL 1283, UL 1449, cUL Listed
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
REACH Compliant Yes

Cloud Management & Licensing
Remote Monitoring No
Cloud Integration No
