APC SurgeArrest PM 240/120V 80KA Non-Modular Surge Suppressor

VENDOR: APC Mfg Part#: PMP2X-A UPC#: 731304266433
1 3

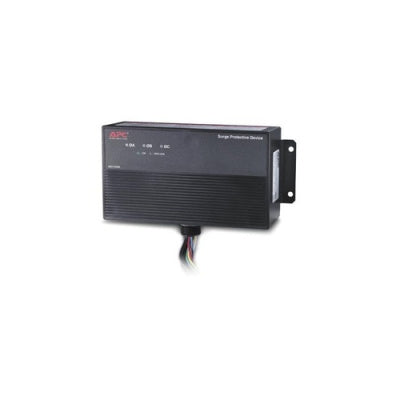

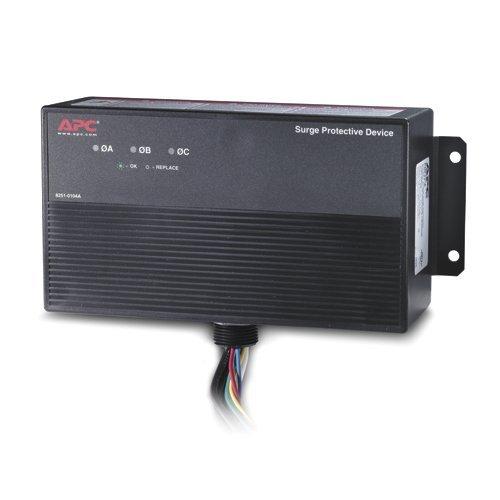

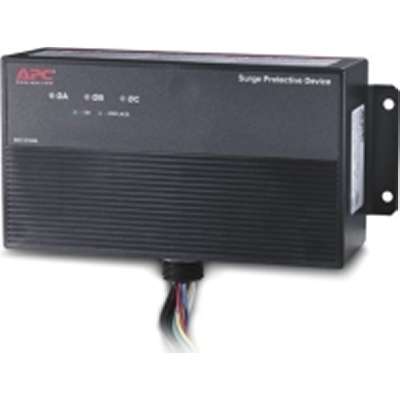

Photo is for illustration purposes only. Actual product may be different.
$478.00
$478.00
Sale Sold out
MSRP: $721.00
Shipping calculated at checkout.
  • Supports 120V and 230V input for versatile deployment
  • Standard surge suppression with 80KA capacity for critical environments
  • Hard-wire 3-wire (2PH + G) input connector for stable electrical connections
  • Compact external form factor: 3.75" W x 3.00" H x 8.63" D
  • Compliant with UL Listed and cUL Listed standards for safety
  • Includes 10-year manufacturer's warranty for extended product lifecycle

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial-grade reliability, offering surge protection up to 80KA
  • TAA-compliant and UL/cUL certified, ensuring it meets government procurement and safety standards
  • Long-term ownership value with a 10-year warranty and durable construction

Product Overview

The APC SurgeArrest PM 240/120V 80KA Non-Modular Surge Suppressor (model PMP2X-A) is a robust external-form-factor device designed for 120V and 230V applications. It features a hard-wire 3-wire connection and offers standard suppression capabilities. The unit is housed in a durable black enclosure measuring 3.75 x 3.00 x 8.63 inches. It complies with UL and cUL standards and is TAA-compliant for government use. With a 10-year warranty, this U.S.-manufactured unit ensures long-term reliability and secure protection against power surges in critical infrastructure.

Specifications

Product Overview
Product Type Surge Suppressor
Form Factor External
Application Voltage 120V, 230V
Surge Suppression Rating 80 kA
Enclosure Color Black
Warranty 10 years
Mounting Type Wall mountable
Usage Commercial / Industrial

Physical & Environmental
Width 3.75 in
Height 3.00 in
Depth 8.63 in
Operating Temperature Range -40°C to 85°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Operating Elevation 0–15,000 ft
Storage Elevation 0–50,000 ft
Enclosure Type NEMA Type 1
Humidity Tolerance 95% Non-condensing

Cloud Management & Licensing
Cloud Management None
Licensing Required No
Managed Platform Not applicable

Interfaces
Input Connector Type Hard Wire 3-wire (2PH + G)
Input Wiring Configuration 3-wire
Number of Input Phases Dual Phase
Connection Type Hardwired

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL Listed, cUL Listed
Standards Compliance ANSI/IEEE C62.41, UL 1449 3rd Edition
Environmental Compliance RoHS Compliant

Advanced Security Features
EMI/RFI Noise Filtering Yes
Thermal Protection Yes
Short Circuit Protection Yes
Overvoltage Protection Yes
Status Indicators LED status indicators
