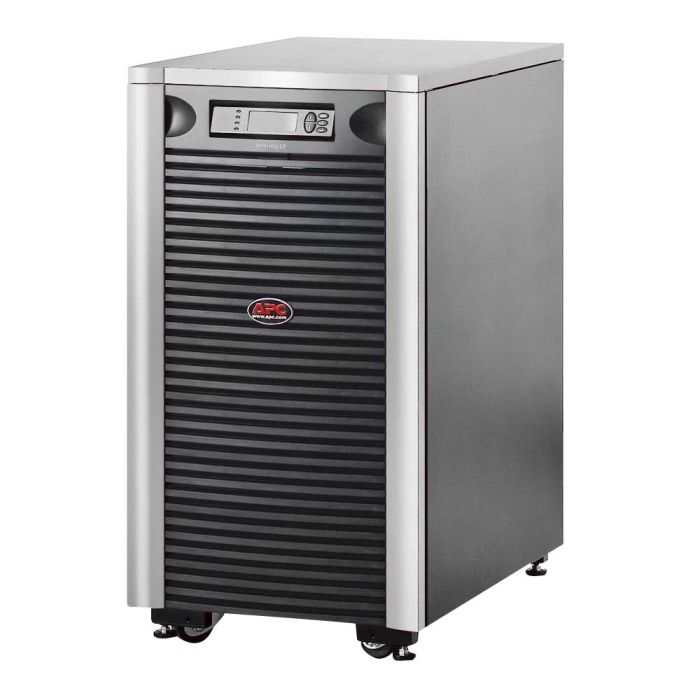

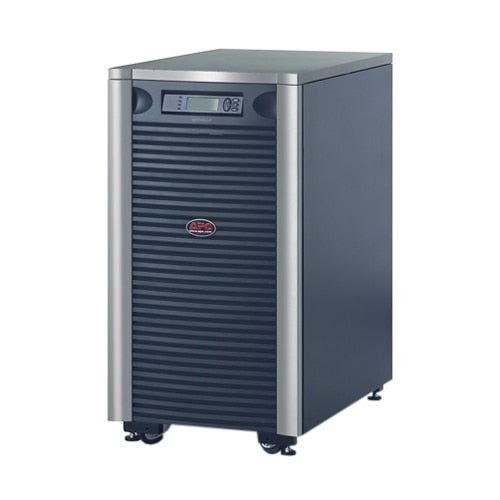

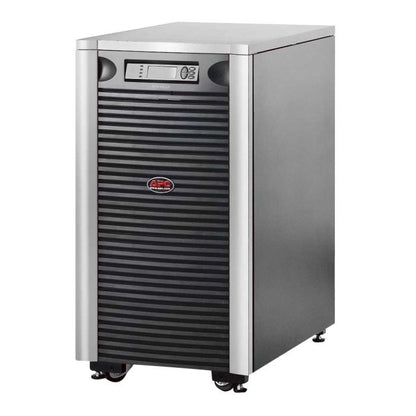

APC Symmetra LX 16kVA Rack-Mountable UPS, 12.8kW/16kVA

VENDOR: APC Mfg Part#: SYA16K16RMP
1 2
Photo is for illustration purposes only. Actual product may be different.
$37,872.00
$37,872.00
Sale Sold out
MSRP: $55,992.00
Shipping calculated at checkout.
  • Double conversion UPS technology for uninterrupted online power
  • 12.8 kW / 16,000 VA output capacity to protect critical infrastructure
  • Rack-mountable design with black and silver enclosure, ideal for data centers
  • Interfaces include RS-232, Ethernet 10/100Base-TX, and hard-wire output
  • Multiple output connectors: 4 x NEMA L14-30R, 8 x NEMA L5-20R
  • Operating range: 0–40°C and 0–95% humidity (non-condensing)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers robust 12.8kW power to support high-density computing environments
  • Double conversion technology ensures clean, reliable power delivery for sensitive systems
  • Built-in Ethernet and serial connectivity allow advanced power management and alerts

Product Overview

The APC Symmetra LX 16kVA Rack-Mountable UPS is engineered to support mission-critical systems with high-availability power delivery. With its double conversion UPS technology, this model ensures true online power conditioning and isolation, offering seamless protection against sags, surges, and blackouts. The system provides 12.8kW of power output with a total capacity of 16,000 VA, ideal for enterprise server rooms, data centers, and networking core systems requiring stable and uninterrupted operation.

Designed for robust deployment, the unit comes in a rack-mountable form factor with dimensions of 47.2 cm width, 68.8 cm depth, and 83.6 cm height. It offers multiple output options including 4 x NEMA L14-30R, 8 x NEMA L5-20R, and hard-wire 4-wire connections, enabling flexible integration into existing infrastructure. Connection and management are enhanced with RS-232 and Ethernet 10/100Base-TX support. With a lead-acid battery system and operating temperature range from 0°C to 40°C, long-term reliability is ensured even in demanding environments.

Compliant with RoHS and TAA requirements and backed by a 2-year warranty, this UPS provides not only energy assurance but also confidence in sustainability and support. Crafted in the United States, the APC Symmetra LX is a sound investment for organizations prioritizing uptime and operational stability.

Specifications

Product Overview
Product Type UPS
Model SYA16K16RMP
UPS Technology Double Conversion
Power Capacity (Watts) 12.8 kW
Power Capacity (VA) 16000 VA
Form Factor Rack-Mountable
Battery Type Lead-acid Battery
Enclosure Color Black, Silver
Warranty 2 Year Warranty

Physical & Environmental
Width 47.2 cm
Depth 68.8 cm
Height 83.6 cm
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Operating Humidity Range 0–95% non-condensing

Cloud Management & Licensing
Remote Management Interface Ethernet (10/100Base-TX)
Remote Monitoring Support Yes, via Network Management Card
Included Licensing No Software License Included

Electrical Characteristics
Output Voltage 208 V
Nominal Input Voltage 208 V
Input Connection Type Hardwired 4-wire (2PH + N + G)
Input Frequency 50/60 Hz auto-sensing
Output Frequency 50/60 Hz ±3 Hz sync to mains
Crest Factor 3:1
Waveform Type Sine wave

Interfaces
Serial Ports 1 x RS-232 (DB-9)
Ethernet Ports 1 x 10/100Base-TX RJ-45
Output Connections (Hardwire) 1 x Hard Wire 4-wire (2PH+N+G)
Output Connections (NEMA L14-30R) 4 x NEMA L14-30R
Output Connections (NEMA L5-20R) 8 x NEMA L5-20R

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin United States

Advanced Security Features
Surge Protection Yes
Voltage Regulation Yes (Online double conversion)
Power Conditioning Yes

Expansion & Scalability
Scalability Scalable Power Capacity
Hot-Swappable Modules Yes
