APC Symmetra LX 4kVA Rack-Mount Power Array

VENDOR: APC Mfg Part#: SYA4K8RMP
1 1

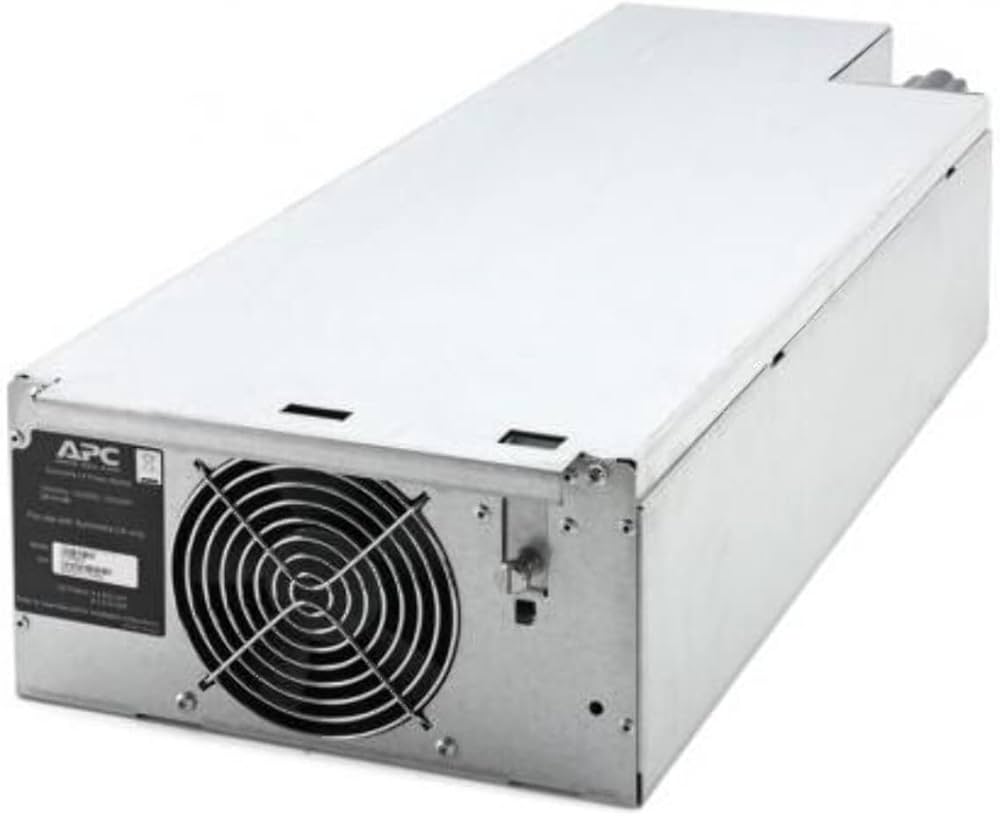

Photo is for illustration purposes only. Actual product may be different.
$19,785.00
$19,785.00
Sale Sold out
MSRP: $29,270.00
Shipping calculated at checkout.
  • Rack-mountable online power array with 3200W/4000VA output
  • Supports 240V AC input via hard-wired 4-wire (2PH+N+G) connection
  • Multiple output connections: NEMA L14-30R, L5-20R, and hard-wire compatible
  • Integrated lead-acid battery with hot-swappable maintenance support
  • Dual communication interfaces: RS-232 (9-pin D-sub) and Ethernet 10/100
  • Complies with TAA standards; Made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-density 4000 VA output in a compact rack-mountable form, ideal for enterprise IT systems
  • Advanced connectivity with RS-232 and Ethernet interfaces enables streamlined remote power management
  • Backed by a 2-year repair or replace warranty and TAA-compliant, ensuring trusted procurement and long-term use

Product Overview

The APC Symmetra LX 4kVA is a rack-mountable power array that offers 3200 Watts/4000 VA of reliable online power protection for enterprise-grade IT applications. Featuring hard-wired 4-wire input/output and multiple NEMA outlets, this system ensures smooth compatibility with critical infrastructure. Integrated lead-acid battery technology supports hot-swappable maintenance to minimize downtime. Communication options include Ethernet and RS-232 interfaces for remote management. With TAA compliance and a 2-year APC warranty, the system offers high reliability, scalability, and secure support for data center and enterprise environments.

Specifications

Product Overview
Product Type Power Array
Form Factor Rack-Mountable
Nominal Output Power 3200 W
Apparent Power Capacity 4000 VA
Power Technology Online (Double Conversion)
Battery Type Lead-acid
Battery Installed Quantity 1
Hot-swappable Batteries Yes
Scalable Runtime Yes
Redundant Configuration Yes
Color Black, Silver
Warranty 2 years repair or replace

Physical & Environmental
Width 22.52 in
Depth 18.58 in
Height 27.09 in
Mounting Type Rack-mounted / Tower convertible
Rack Units 12U
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 45°C (5°F to 113°F)
Operating Relative Humidity 0% to 95% (non-condensing)
Storage Relative Humidity 0% to 95% (non-condensing)
Operating Elevation 0 to 10000 ft
Audible Noise 50 dBA at 1 meter

Cloud Management & Licensing
Remote Management Capabilities Yes, via Ethernet or optional network management card
SmartSlot Support Yes, for add-in management modules
Included Management Software PowerChute Network Shutdown

Interfaces
Input Connector Type Hard Wire 4-wire (2PH+N+G)
Input Connection Quantity 1
Output Connector Type Hard Wire 4-wire (2PH+N+G)
Output Connection Quantity 1
Connectors Supported Multiple NEMA outlets supported optionally
Management Interface Ethernet, RS-232
Expansion Slots SmartSlot for management accessories

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
UL Listed Yes
CSA Certified Yes
CE Marking Yes

Advanced Security Features
Security Management Password-protected network access
SNMP Monitoring Supported via optional network management card
