APC Symmetra LX 8kVA Rack-Mountable UPS

VENDOR: APC Mfg Part#: SYA8K16RMP
1 1

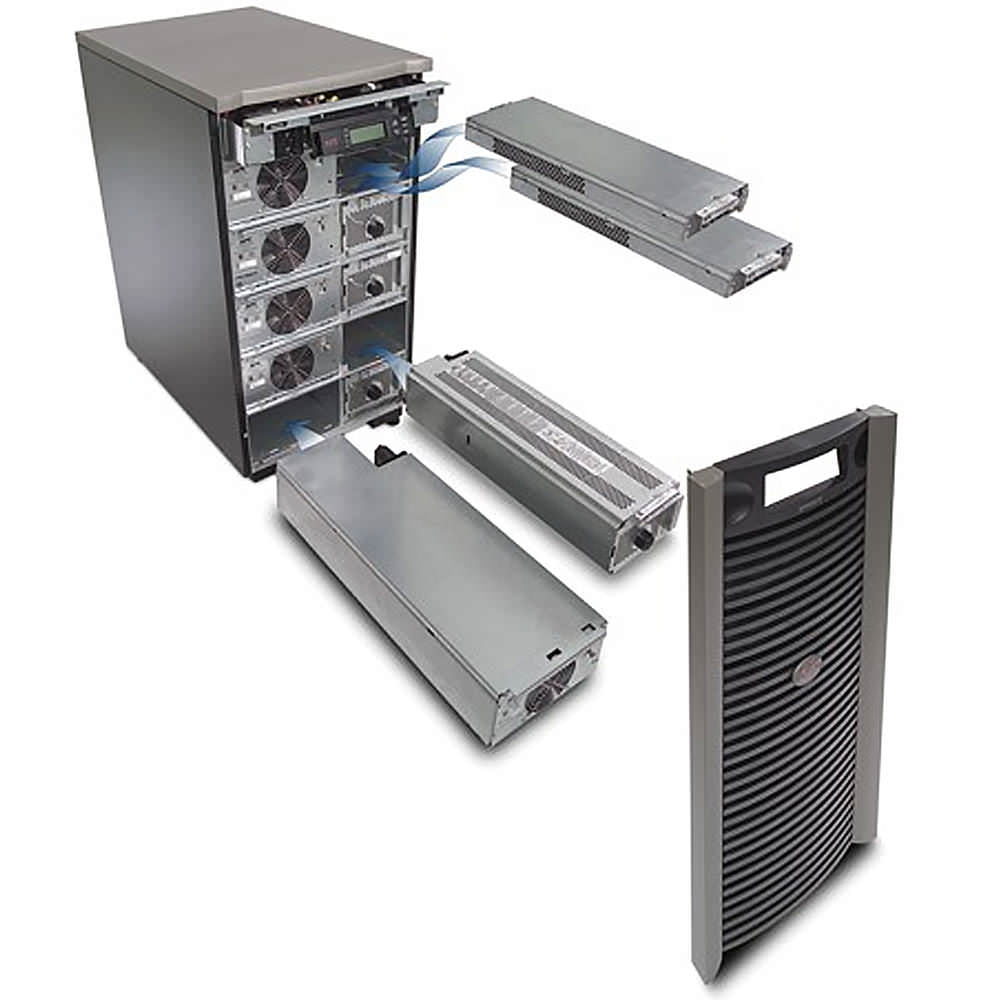

Photo is for illustration purposes only. Actual product may be different.
$24,264.00
$24,264.00
Sale Sold out
MSRP: $35,869.00
Shipping calculated at checkout.
  • 8000 VA / 12.8 kW online double-conversion UPS for critical applications
  • Rack-mountable chassis with SmartSlot expansion capability
  • Wide output voltage support: 120/208/240 V AC
  • Multiple output connectors including NEMA L14-30R and L5-20R
  • Lead-acid battery technology with field-replaceable modules
  • Ethernet 10/100 and RS-232 connectivity for remote monitoring

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-output power protection (8000 VA) ensures continuity for mission-critical systems.
  • Scalable and manageable design with SmartSlot modularity and multiple output connectors enables adaptivity to diverse infrastructure.
  • Compliance with TAA and RoHS standards assures suitability for federal and environmentally-conscious deployments.

Product Overview

The APC Symmetra LX 8kVA Rack-Mountable UPS delivers 8000 VA / 12.8 kW of reliable online power protection in a space-efficient rack-mountable design. Supporting 120/208/240 V AC output, it uses a double-conversion architecture ideal for enterprise environments. It features SmartSlot expandability, full remote management via RJ-45 and RS-232, and comes with multiple NEMA and hardwire output options. Built to sustain challenging climates (0–40°C, 95% humidity), it complies with TAA and RoHS standards and includes a 1-year warranty.

Specifications

Product Overview
Product Type Online UPS
Model APC Symmetra LX
Power Capacity (VA) 8000 VA
Power Capacity (Watts) 12800 W
Form Factor Rack-Mountable
Battery Type Lead-acid Battery
Power Architecture Double Conversion Online
Expandable Battery Runtime Yes
Hot-Swappable Modules Yes
Color Black, Silver
Power Input Type Hard Wire 4-wire (3PH + G)
Power Output Type Hard Wire 4-wire (2PH+N+G), NEMA L14-30R, NEMA L5-20R
Input Voltage 208 V
Output Voltage 120/208/240 V

Physical & Environmental
Width 19.02 in
Depth 28.58 in
Height 36.89 in
Operating Temperature Range 0 to 40 °C
Operating Humidity Range 0 to 95%
Enclosure Type Rack-mountable chassis

Cloud Management & Licensing
Cloud Monitoring Ready Yes (with optional Network Management Card)
Remote Monitoring Capable Yes
Management Platform PowerChute Network Shutdown Compatible
Licensing Required No (basic functions included)

Service & Warranty
Service & Support 1 Year Warranty
Replaceable Battery Yes
Maintenance Bypass Support Yes (optional accessory)

Interfaces
Network Interface Ethernet 10Base-T/100Base-TX (RJ-45)
Serial Interface RS-232 (9 pin D-Sub)
Expansion Slots 3 total (2 used) SmartSlot
Remote Management Interface RJ-45, RS-232
SmartSlot Support Yes

Compliance & Origin
Country of Origin United States
RoHS Compliance Yes
TAA Compliance Yes
Certifications UL listed, CE Mark, FCC Part 15 Class A

Advanced Security Features
Password Protected Management Interface Yes
Event Logging Yes
SNMP Support Yes
Environmental Monitoring Yes (via optional accessories)
