APC Symmetra PX20KW Scalable to 40KW 208V UPS

VENDOR: APC Mfg Part#: SY20K40F
1 2

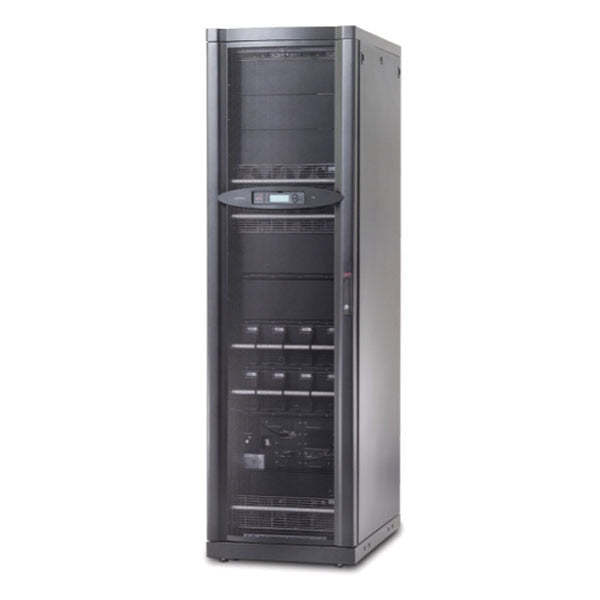

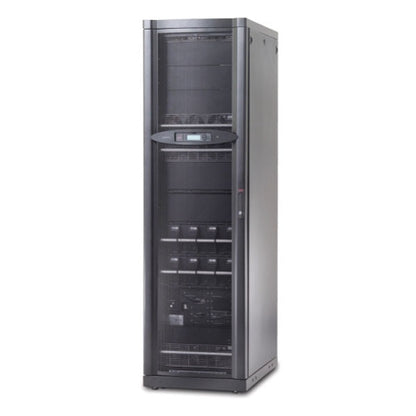

Photo is for illustration purposes only. Actual product may be different.
$46,140.00
$46,140.00
Sale Sold out
MSRP: $68,115.00
Shipping calculated at checkout.
  • 40 KW capacity with scalability from 20 KW for growing power needs
  • Double-conversion UPS technology for consistent, clean power delivery
  • Supports 120 V output, 208 V input via 5-wire (3PH + N + G) hard wire connections
  • Lead-acid battery system ensures robust and reliable energy storage
  • Operates in 0–40°C temperature and 0–95% relative humidity for critical environments
  • Comes in a 42U black enclosure with 1-year warranty and TAA/RoHS compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Highly scalable from 20 KW to 40 KW, ideal for growing enterprise power requirements
  • Double-conversion architecture ensures continuous, clean power for sensitive equipment
  • Compliance with TAA and RoHS standards makes it suitable for federal and enterprise use

Product Overview

The APC Symmetra PX20KW Scalable to 40KW 208V (SY20K40F) is a modular, double-conversion UPS designed for high-demand environments like data centers and mission-critical infrastructures. Scalable from 20 KW to 40 KW, it supports 120 V output from 208 V input via secure 5-wire hard wire connections. Built with lead-acid battery technology, it operates efficiently across a wide temperature (0–40°C) and humidity (0–95%) range. This 42U, black-enclosed system is RoHS and TAA compliant, backed by a 1-year warranty, and manufactured in the United States—making it a reliable solution for enterprise deployment.

Specifications

Product Overview
Manufacturer APC
Product Name APC Symmetra PX20KW Scalable to 40KW 208V UPS
Model Number SY20K40F
UPS Type Double Conversion (Online)
Power Capacity (Watts) 40 kW
Apparent Power (VA) 20000 VA
Scalability Scalable from 20 kW to 40 kW
Battery Type Lead-acid Battery
Enclosure Color Black
Form Factor Rack-Mountable (42U)
Rack Height 42U
Power Provided 40 kW
Included Warranty 1 Year Warranty

Physical & Environmental
Width 60 cm
Depth 90.2 cm
Height 207 cm
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Humidity Range Operating 0% to 95% (non-condensing)
Storage Temperature Range -15°C to 45°C
Acoustic Noise Level 68 dBA
Cooling Method Forced Air
Installation Environment Indoor, temperature-controlled

Cloud Management & Licensing
Remote Management Optional via Network Management Card
Management Interface APC Network Management Interface (optional)
Monitoring Capabilities Real-time alarms, event logging, SNMP support
Firmware Upgradeable Yes

Interfaces
Input Voltage 208 V
Output Voltage 120 V
Input Connector Type Hard Wire 5-wire (3PH + N + G)
Output Connector Type Hard Wire 5-wire (3PH + N + G)
Bypass Type Internal Maintenance Bypass
Communication Interfaces Serial, USB, Ethernet (optional Network Management Card)

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin United States
Certifications UL 1778, CSA, FCC Part 15 Class A, ENERGY STAR (Qualified UPS)

Advanced Security Features
Event Notification Email, SNMP trap, audible alarms
User Access Control Password-protected interface
System Protection Features Overload protection, surge protection, short-circuit protection
