| Product Type | Rack-Mountable UPS with Transformer |
| Model Name | Symmetra RM 4kVA Scalable W/Transformer |
| Manufacturer | APC |
| Manufacturer Part Number | SYH4K6RMT-P1 |
| Form Factor | Rack-Mountable |
| Rack Height | 10U |
| Power Capacity (Watts) | 2800 W |
| Power Capacity (VA) | 4000 VA |
| Redundancy | N+1 Redundant |
| Scalability | Scalable |
| Power Requirements | 208 V AC Input |
| Output Voltage | 120 V AC |
| UPS Type | Online Double Conversion |
| Included Batteries | 2 |

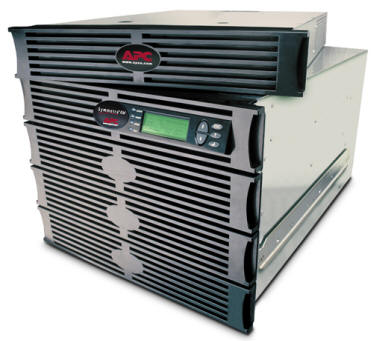

APC Symmetra RM 4kVA Rack-Mountable UPS with Transformer
Photo is for illustration purposes only. Actual product may be different.
Regular price
$13,676.00
Regular price
Sale price
$13,676.00
Unit price
per
MSRP: $20,186.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Rack-mountable UPS with 10U height and black enclosure for data center installation
- 2800 Watt / 4000 VA power capacity with scalable N+1 redundancy
- 208V AC input; 120V DC output suitable for North American systems
- Two internal lead-acid batteries for backup power resilience
- 12 NEMA 5-20R output connectors for flexible equipment support
- TAA compliant and includes US/Canada configuration
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers scalable, redundant power ideal for growing enterprise environments requiring high uptime
- Pre-configured with 12 NEMA 5-20R outputs and lead-acid battery modules for simple deployment
- TAA compliance ensures procurement eligibility for government and federally funded projects
Product Overview
The APC Symmetra RM 4kVA Scalable W/Transformer is a rack-mounted UPS delivering 2800W/4000VA with a 208V AC input and 120V output. Its N+1 redundant, scalable design ensures high-availability power for critical equipment. Features include 12 NEMA 5-20R outputs, two lead-acid batteries, and TAA compliance. With a 10U rack height and included basic support, it's well-suited for enterprise applications requiring reliable uptime.
Specifications
Product Overview
Physical & Environmental
| Width | 17.52 in |
| Depth | 19.02 in |
| Height | 28.74 in |
| Enclosure Color | Black |
| Rack Mount Size | Standard 19-inch |
| Battery Type | Lead-acid |
| Hot-Swappable Batteries | Yes |
| Cooling Type | Fan-cooled |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity | 0% to 95% non-condensing |
| Storage Temperature Range | -15°C to 45°C (5°F to 113°F) |
| Storage Elevation | 0-15000 ft |
Cloud Management & Licensing
| Remote Management | Optional via Network Management Card |
| Monitoring Capabilities | LCD display, alarm notifications, SNMP support (with add-on card) |
| Management Software Compatibility | PowerChute Network Shutdown |
Interfaces
| Input Connector | 1 x Hard Wire 3-wire (2PH + G) |
| Output Connectors | 12 x NEMA 5-20R |
| Available Slots | Interface Port for Network Management Card |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Certifications | UL Listed, CSA Certified, FCC Part 15 Class A |
| RoHS Compliance | Yes |
Advanced Security Features
| Alarm Notification | Visual and audible alarms for critical UPS conditions |
| Surge Protection | Yes |
| Automatic Self-Test | Yes |
| Overload Protection | Yes |
