APC Symmetra RM 4kVA Scalable to 6kVA N+1 Rack UPS

VENDOR: APC Mfg Part#: SYH4K6RMT-TF3
1 1
Photo is for illustration purposes only. Actual product may be different.
$13,583.00
$13,583.00
Sale Sold out
MSRP: $20,038.00
Shipping calculated at checkout.
  • - Online double-conversion UPS provides clean, regulated power at 208/240V (57–63 Hz)
  • - Scalable from 4kVA to 6kVA with N+1 redundancy for high-availability systems
  • - 2800 Watt / 4000 VA capacity for robust power delivery
  • - Includes RS-232 (DB-9) and Ethernet (RJ-45) interfaces for remote management
  • - Offers 4 x NEMA L5-20R and 2 x NEMA L6-20R output connectors
  • - TAA-compliant and manufactured in the United States for government use applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Scalable power design from 4kVA to 6kVA with N+1 redundancy ensures long-term investment protection
  • - Dual management interfaces (RS-232 and Ethernet) enable flexible, remote monitoring
  • - TAA compliance and U.S. manufacturing meet procurement standards for federal agencies

Product Overview

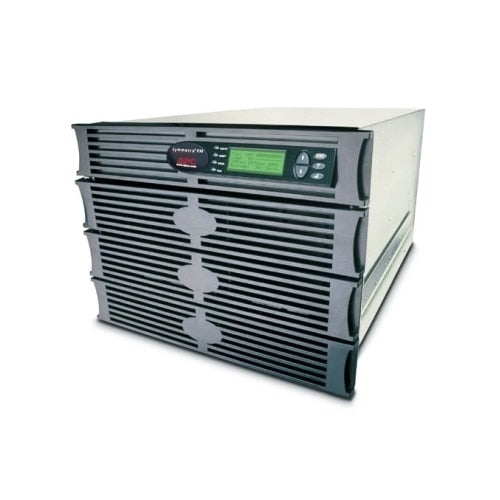

The APC Symmetra RM 4kVA Scalable to 6kVA N+1 is a rack-mountable, online UPS system that delivers 2800 Watts / 4000 VA of scalable, regulated power at 208/240V (57–63 Hz). Featuring RS-232 (DB-9) and Ethernet (RJ-45) management ports and multiple output options (4 x NEMA L5-20R, 2 x NEMA L6-20R), it ensures versatile deployment in IT environments. With N+1 redundancy and TAA compliance, it's engineered for dependable and scalable power protection in critical enterprise applications.

Specifications

Product Overview
Product Type Online Rack-Mount UPS
Scalable Power Capacity 4kVA to 6kVA
Nominal Output Power 2800 Watts / 4000 VA
Form Factor Rack-Mountable (6U)
Redundancy N+1 Redundant Architecture
Topology Double Conversion Online
Battery Type Hot-swappable VRLA batteries
Battery Modules Supported Up to 4 SYBT2 modules
Runtime (Full Load) Approximately 5 minutes
Expandable Runtime Yes
Power Requirements 208/240V AC, 57–63 Hz
Weight 203 lb (92.08 kg)

Physical & Environmental
Rack Height 6U
Dimensions (H x W x D) 10.4 x 17.5 x 28.1 in (26.4 x 44.4 x 71.3 cm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 45°C (5°F to 113°F)
Relative Humidity (Operating) 0 – 95% (non-condensing)
Operating Elevation 0 – 3,000 m (0 – 10,000 ft)
Audible Noise 55 dBA at 1 meter
Color Black

Cloud Management & Licensing
Network Management Card Support AP9630, AP9631
Remote Management Features Remote monitoring, configuration, shutdown via web or SNMP
Web Interface Yes, via optional Network Management Card
Firmware Upgradeable Yes

Interfaces
Network Management Ports RJ-45 Ethernet
Serial Interface DB-9 RS-232
SmartSlot Expansion Bays 1
Output Connectors 4 x NEMA L5-20R, 2 x NEMA L6-20R
Input Connector Hard wire 3-wire (1PH + N + G)
Communication Protocols Supported SNMP, Telnet, HTTP, HTTPS

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, FCC Part 15 Class A, CSA, CE, VDE
RoHS Compliant Yes

Advanced Security Features
Password Protection Yes
Event Notification Email, SNMP Traps, Syslog
