Products Memory, Storage and Components APC Symmetra RM XR Frame UP...

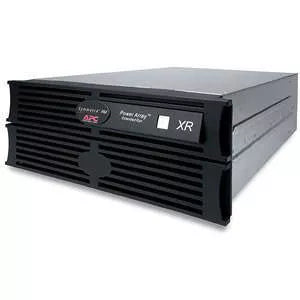

APC Symmetra RM XR Frame UPS Battery, Lead-Acid, AC 208/240 V

VENDOR: APC Mfg Part#: SYRMXR4B4
1 1
Photo is for illustration purposes only. Actual product may be different.
$9,172.00
$9,172.00
Sale Sold out
MSRP: $13,530.00
Shipping calculated at checkout.
  • Lead-Acid UPS battery designed for extended runtime applications
  • Compatible with AC input voltage of 208/240 V
  • TAA compliant for use in federally regulated environments
  • Manufactured in the United States
  • Part of APC's Symmetra RM modular UPS system

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports critical infrastructure with reliable lead-acid backup in 208/240 V environments
  • TAA compliance ensures readiness for government and federally funded projects
  • Manufactured in the USA, offering assured quality and local sourcing benefits

Product Overview

The APC Symmetra RM XR Frame (SYRMXR4B4) is a dependable UPS battery module built for scalable power infrastructure. Designed with lead-acid chemistry and supporting AC 208/240 V systems, it enhances backup power capabilities. Made in the USA and TAA compliant, it's ideal for government and regulated sector use. Part of the APC Symmetra family, it integrates smoothly into enterprise-grade UPS configurations, making it a valuable asset for critical applications.

Specifications

Product Overview
Product Type UPS Battery Module
Form Factor Rack-mountable
Model Name Symmetra RM XR Frame
Manufacturer Part Number SYRMXR4B4
Family Symmetra
Power Supply Supported AC 208/240 V
Battery Chemistry Lead-Acid
Battery Type UPS Battery Extended Runtime Frame
Expandable Runtime Yes
Hot-Swappable Yes
Weight 91.7 kg
Power Capacity 4 kVA (with additional power modules)

Physical & Environmental
Rack Unit Height 13U
Product Dimensions (H x W x D) 22.2 x 17.5 x 28.5 in (56.4 x 44.4 x 72.4 cm)
Operating Temperature 0 to 40°C
Storage Temperature -15 to 45°C
Operating Relative Humidity 0 to 95% non-condensing
Storage Relative Humidity 0 to 95% non-condensing
Operating Elevation 0 to 3000 m
Storage Elevation 0 to 15000 m
Color Black with Gray

Cloud Management & Licensing
Remote Management Capability Optional with Network Management Card
Management Interface SmartSlot and Local LCD Panel via Symmetra UPS
License Included No – sold separately
Cloud-Enabled Features Supported via APC SmartConnect (when integrated with compatible UPS)

Interfaces
Interface Type Proprietary APC Symmetra Interface
Communication Interface SmartSlot
Number of Battery Module Slots 4
Supported UPS Modules Symmetra RM UPS Systems
Connectors Included Integrated Power and Data Connectors for Symmetra Modules

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL Listed, CSA, EN 60950, NOM
RoHS Compliant Yes
REACH Compliant Yes
Environmental Compliance WEEE
