APC SYRMXR2B4 RM4U Rack Mount Ext. Run Frame with 2 SYBT2

VENDOR: APC Mfg Part#: SYRMXR2B4
1 1

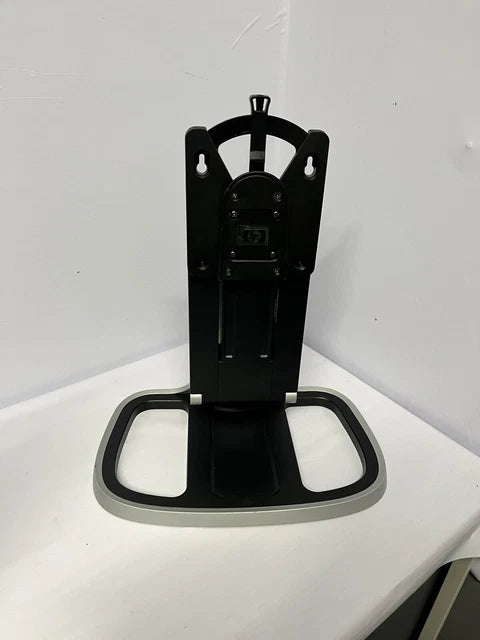

Photo is for illustration purposes only. Actual product may be different.
$6,755.00
$6,755.00
Sale Sold out
MSRP: $9,964.00
Shipping calculated at checkout.
  • 4U rack-mountable external runtime frame
  • Includes 2 SYBT2 lead-acid batteries for extended backup
  • Supports AC 208/240 V input
  • Designed for APC Symmetra RM UPS integration
  • TAA compliant for secure procurement
  • Manufactured in United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with two SYBT2 batteries, providing immediate extended runtime value.
  • TAA compliant and US-manufactured, making it suitable for government and enterprise procurement.
  • Space-saving 4U rack design optimizes valuable data center rack real estate.

Product Overview

The APC SYRMXR2B4 RM4U Rack Mount External Runtime Frame comes equipped with two SYBT2 lead-acid battery modules, making it an excellent choice for extending backup power in critical systems. With a 4U rack-mountable design, it saves space while scaling power availability effectively. This unit supports AC 208/240 V input and is TAA compliant, adding value in regulated procurement scenarios. Manufactured in the United States, it underscores adherence to high-quality standards. While it is optimized for use with Symmetra RM UPS systems, detailed output specifications are not provided.

Specifications

Product Overview
Product Type External Runtime Frame with Battery Modules
Form Factor Rack-mountable
Rack Units 4U
Included Battery Modules 2 x SYBT2
Battery Type Sealed lead-acid, maintenance-free, with suspended electrolyte
Nominal Input Voltage 208/240 V AC
Power Capacity Dependent on attached UPS system
Expandable Runtime Yes (supports additional battery packs)
UPS Compatibility APC Symmetra RM UPS systems
Redundant Battery Support Yes
Hot-swappable Batteries Yes
Battery Mounting Integrated in rack unit
Typical Recharge Time Less than 3 hours to 90%

Wireless Features
Wi-Fi Support
Antennas Included
Wireless Frequency Bands

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA, FCC Part 15 Class A
RoHS Compliance Yes
REACH Compliance Yes

Advanced Security Features
Physical Security Lockable rackmount chassis
Tamper Detection None
Data Protection Features Battery backup provided via UPS system only

Interfaces
Interface Type Proprietary battery connector for Symmetra RM series
Port Type DC interconnect cable (to UPS system)
Communication Interface UPS handles control/monitoring

Physical & Environmental
Dimensions (H x W x D) 6.89 x 17.24 x 28.39 in (175 x 438 x 722 mm)
Weight 198 lbs (89.81 kg)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Storage Elevation 0 – 50,000 ft (0 – 15,000 m)
Sound Level Whisper quiet (fanless, passive system)
Enclosure Color Black
Mounting Type 4-post rack mount

Cloud Management & Licensing
Management Interface Controlled via host Symmetra RM UPS system
Network Management Card Support Available in host UPS only
APC SmartConnect Compatible No
Licensing Required No licensing required for runtime frame
