Aruba 8360-12C Prt2Pwr3F2PS Managed 12-Port 100GbE Switch

VENDOR: HP Mfg Part#: JL708A#ACD UPC#: 190017405636
1 3

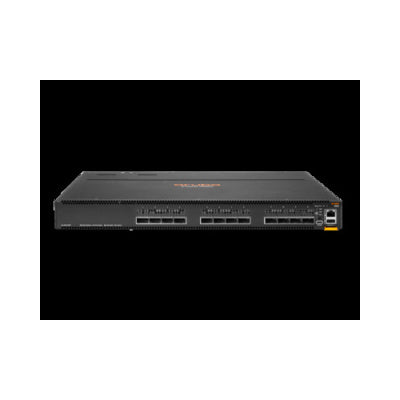

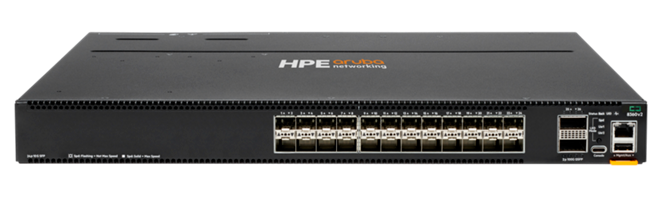

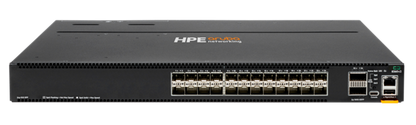

Photo is for illustration purposes only. Actual product may be different.
$39,783.00
$39,783.00
Sale Sold out
MSRP: $50,250.00
Shipping calculated at checkout.
  • 12 x 100GbE QSFP28 / 40GbE QSFP+ ports with 2.4 Tbps switching capacity
  • Layer 3 management with support for BGP, OSPFv3, PIM-SM, VRRP, and policy-based routing
  • Secure management with SSH, SFTP, SNMPv3, TACACS+, and FIPS 140-2 encryption
  • Redundant N+1 hot-plug power supplies and 3 hot-swappable fan trays
  • Jumbo frame support up to 9KB and 32MB packet buffer for heavy data flows
  • 1.8 GHz processor, 16GB RAM, and 32GB flash for high-performance operations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density 100GbE networking, ideal for core or aggregation layers in modern data centers
  • Redundant power, hot-swappable fans, and TAA compliance ensure uptime and regulatory alignment
  • Advanced Layer 3 features and security protocols deliver scalable, secure, and future-ready deployments

Product Overview

The Aruba 8360-12C Prt2Pwr3F2PS is a high-speed 12-port Layer 3 managed switch engineered for high-performance networking across enterprise and data center environments. It supports 12 x 100GbE QSFP28 interfaces and delivers switching capacity of 2.4 Tbps with ultra-low latency of 1 µs. Designed for resilience, it includes redundant power supplies, three hot-swappable fan trays, and conforms to TAA compliance. It features advanced protocol support (BGP, OSPF, VXLAN), FIPS 140-2 encryption, and robust manageability through SNMP, SSH, and CLI. Capable of handling complex routing scenarios and edge networking at scale, it comes in a 1U rack-mountable form factor, secured by a limited lifetime warranty.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Number JL708A#ACD
Form Factor 1U Rack-mountable
Chassis Airflow Front to Back
Processor 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Switching Capacity 2.4 Tbps
Latency 1 µs
Throughput 2 Mpps
MTBF 509,714 hours
Power Redundancy Yes
Power Redundancy Scheme N+1
Power Supply Units Installed 2
Max Supported Power Supplies 2
Power Consumption (Max) 550 W
Included Accessories 3 hot-swappable fan trays
Warranty Limited lifetime warranty

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Emissions and Safety Standards FCC Part 15 A, UL 60950-1, EN 55032 Class A, IEC 62368-1:2014, EN 60825-1:2014 Class 1, VCCI Class A, RoHS, ISO 7779, EMC 2014/30/EU, CISPR 32, CISPR 35, EN 61000-3-2:2014, EN 61000-3-3:2013
IEEE Standards IEEE 802.3ba, 802.3ae, 802.3z, 802.3x, 802.3ad (LACP), 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1t, 802.1ab (LLDP), 802.1AX

Advanced Security Features
Routing Protocols OSPF, EGP, BGP-4, IGMPv2/v3, VRRP, PIM-SM, GRE, ECMP, Static Routing (IPv4/IPv6), Policy-Based Routing (PBR), MLDv2
Security Features MACsec support, ACL, DHCP snooping, IGMP snooping, MLD snooping, ARP support, Port Mirroring, Congestion Control, Storm Control
Encryption Standards FIPS 140-2
Authentication Methods SSH v2, RADIUS, TACACS+
High Availability Features Hot-swappable fans and power, Redundant Power Supply
Layer 2/3 Features LACP, STP, RSTP, MSTP, Rapid PVST+, VLAN, QoS, Link Aggregation, BFD, UDLD, Loopback, MSDP, ERPS, VSX
Advanced Networking Features VXLAN, VTEP, ECN, DCB, SP Queuing, DWRR, Cisco IPSLA

Interfaces
Ethernet Ports 12 x 100GbE QSFP28 / 40GbE QSFP+
Serial Console Port 1 x Serial
USB Console Port 1 x USB-C
RJ-45 Management Port 1 x RJ-45 LAN
USB Type A Port 1 x USB Type A
Jumbo Frame Support 9 KB
VLAN Capacity 4094 VLANs per port (802.1Q)

Physical & Environmental
Width 17.4 in
Depth 16 in
Height 1.7 in
Weight 17.66 lbs
Operating Temperature (Min) 32 °F
Operating Temperature (Max) 113 °F
Operating Humidity 15 - 95% (non-condensing)
Storage Humidity 15 - 95% (non-condensing)
Voltage Required AC 120/230 V (47 - 63 Hz)

Cloud Management & Licensing
Remote Management Protocols SNMP v2c/v3, RMON, TFTP, SSH, CLI, SFTP, ICMP, NTP, IPv4/IPv6
