Belkin 2-Port DP/HDMI Universal Secure KVM Switch PP4.0

VENDOR: BELKIN Mfg Part#: F1DN102KVM-UN-4 UPC#: 745883785827
1 4
Photo is for illustration purposes only. Actual product may be different.
$945.00
$945.00
Sale Sold out
MSRP: $1,203.00
Shipping calculated at checkout.
  • 2-port Secure KVM switch supporting DisplayPort and HDMI interfaces
  • Maximum supported resolution of 4K@60Hz for high-quality visuals
  • Desktop form factor with wired connectivity for secure operation
  • TAA compliant and manufactured in the United States
  • PP4.0 compliant for heightened data security standards
  • Supports Common Access Card (CAC) authentication systems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Meets PP4.0 and TAA compliance standards, ideal for government and secure enterprise use.
  • Supports 4K resolution at 60 Hz, delivering superior image quality for professional applications.
  • Offers universal DP/HDMI support with CAC integration for maximum compatibility across secure environments.

Product Overview

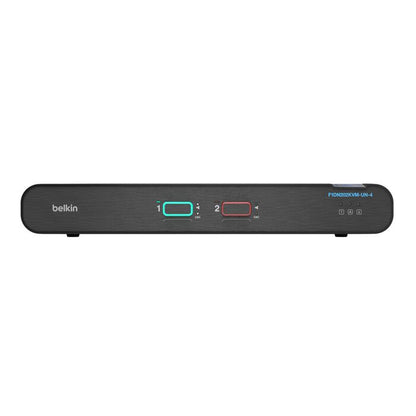

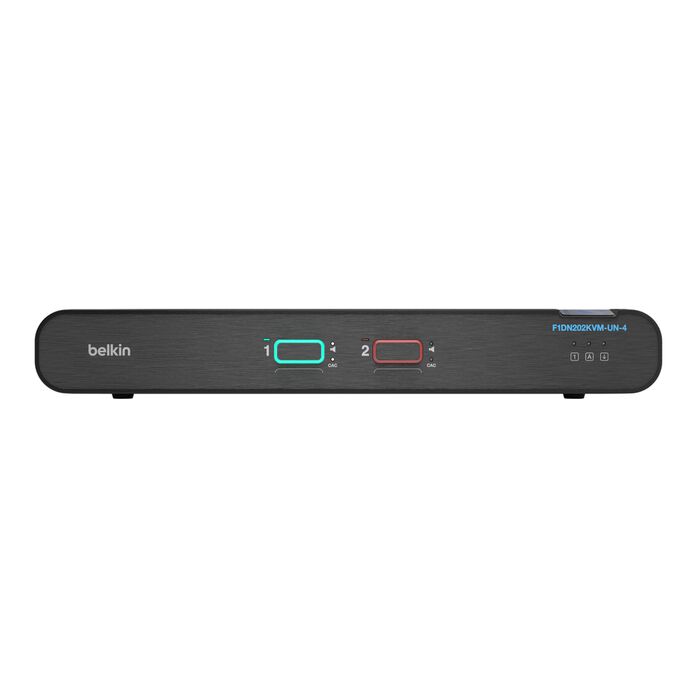

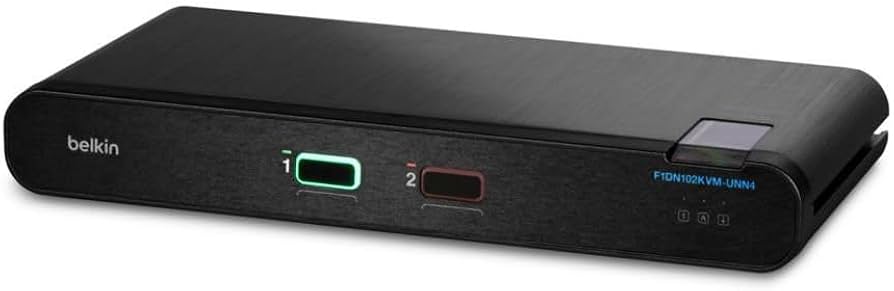

The Belkin F1DN102KVM-UN-4 is a 2-Port, single-monitor Secure KVM switch designed for secure desktop environments requiring seamless system control. It integrates video inputs via DisplayPort and HDMI, allowing users to connect and switch between two host computers while sharing a single monitor, keyboard, and mouse. With support for resolutions up to 4K at 60 Hz, this switch ensures crisp and detailed video output critical for high-resolution applications in secure workstations.

Engineered for reliability and universality, this KVM switch is part of Belkin’s PP4.0-compliant secured product family, meeting stringent government and corporate requirements for data isolation. The device is TAA compliant and made in the United States, supporting U.S. government procurement mandates. Designed in a wired desktop form factor, it ensures minimal electromagnetic interference and enhanced data integrity, specifically for classified or sensitive computing environments.

The switch also features console and host ports for expanded connectivity, and its wired design offers a secure and stable connection with minimal latency. The inclusion of CAC support ensures compatibility with identity verification systems for regulated industries such as defense, finance, and healthcare.

Specifications

Product Overview
Manufacturer Belkin
Product Name Belkin 2-Port DP/HDMI Universal Secure KVM Switch PP4.0
Model Number F1DN102KVM-UN-4
Device Type KVM Switch
Number of Computers Supported 2
Form Factor Desktop
Connectivity Technology Wired
Video Resolution Supported Up to 4K @ 60 Hz
Power Requirements External power supply (typically 12V DC, included)
UPC 745883785827

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
PP4.0 Compliant Yes
Security Certifications NIAP Protection Profile 4.0
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
Secure Switching Mechanical channel isolation (air-gap between ports)
Data Path Isolation Unidirectional data flow with no shared RAM or buffers
CAC (Common Access Card) Support Yes (CAC port for smart card readers)
Keyboard/Mouse Emulation Persistent emulation prevents leakage
Anti-Tamper Features Tamper-evident seals, active tamper detection
Buffer Overflow Protection Yes

Interfaces
Video Input Interfaces 1x DisplayPort, 1x HDMI (per computer)
Console Ports 1x DisplayPort or HDMI out, 2x USB Type-A (Keyboard/Mouse), 1x Audio Out
Host Ports Per Computer: 1x DisplayPort, 1x HDMI, 2x USB Type-A, 1x Audio
USB Hub Integrated CAC Port (addition to console USB)
Port Switching Method Front panel button only (no keyboard/MAC hotkey)

Physical & Environmental
Dimensions (W x D x H) 8.27 x 4.92 x 1.73 inches (210 x 125 x 44 mm)
Weight 2.87 lbs (1.3 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0% to 80% RH, non-condensing
Storage Humidity 0% to 80% RH, non-condensing
Cooling Fanless design (passive cooling)
Chassis Material Metal enclosure (aluminum/steel)

Cloud Management & Licensing
Cloud Management No (air-gapped system)
Licensing Requirements None (no license required)
Management Interface Front-panel buttons only
