Belkin 2-Port Dual Head DP/HDMI Secure KVM Switch with CAC, PP4.0

VENDOR: BELKIN Mfg Part#: F1DN202KVM-UN-4 UPC#: 745883800940
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,231.00
$1,231.00
Sale Sold out
MSRP: $1,566.00
Shipping calculated at checkout.
  • Supports 2 computers with dual video output via DisplayPort and HDMI
  • 4K@60Hz maximum external resolution for high-definition performance
  • NIAP Protection Profile for Peripheral Sharing Devices 4.0 compliant
  • Customizable port coloring and naming reduces human error during port switching
  • Integrated support for CAC access and authentication
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers strong data security with NIAP PP 4.0 compliance for high-assurance environments
  • Ensures clear, high-resolution dual-display output with support for 4K@60Hz
  • Facilitates operational accuracy and efficiency with customizable port labeling and coloring

Product Overview

The Belkin 2-Port Secure Desktop KVM Switch supports dual DisplayPort/HDMI video connections with 4K@60Hz resolution, enabling seamless switching between two source computers. Designed for NIAP PP 4.0 compliance, it upholds strict security standards essential for classified or sensitive workstation environments. Integrated CAC support facilitates secure authentication workflows, while customizable front panel port colors and labels help minimize user error during switching. Built in the United States and TAA compliant, this switch is geared for high-assurance government and corporate deployments.

Specifications

Product Overview
Device Type KVM Switch
Model Number F1DN202KVM-UN-4
Form Factor Desktop
Number of Connected Computers Supported 2
Power Requirements 12V DC, 2A external power adapter
Maximum Resolution 4K @ 60Hz
Video Support Dual-head DisplayPort and HDMI video
Connectivity Technology Wired
Integrated CAC Support Yes
Customizable Front Panel Labeling Yes
Weight 2.36 lbs (1.07 kg)

Physical & Environmental
Dimensions (W x D x H) 13.3 x 5.4 x 1.8 in (33.7 x 13.7 x 4.6 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0% to 80% (non-condensing)
Storage Humidity 0% to 95% (non-condensing)
Enclosure Material Metal with tamper-evident seals

Cloud Management & Licensing
Centralized Management No cloud or remote management (air-gap compliant)
Licensing Requirements None

Interfaces
Video Interfaces DisplayPort, HDMI
Number of Display Outputs per Computer 2
Peripheral Ports 4 x USB Type-A (keyboard, mouse, CAC)
CAC Port 1 x USB Type-A CAC reader port
Console Ports 2 x DisplayPort, 2 x HDMI, 3 x USB Type-A
Computer Interface Ports 2 x DP, 2 x HDMI, 6 x USB Type-B
Audio Interfaces None

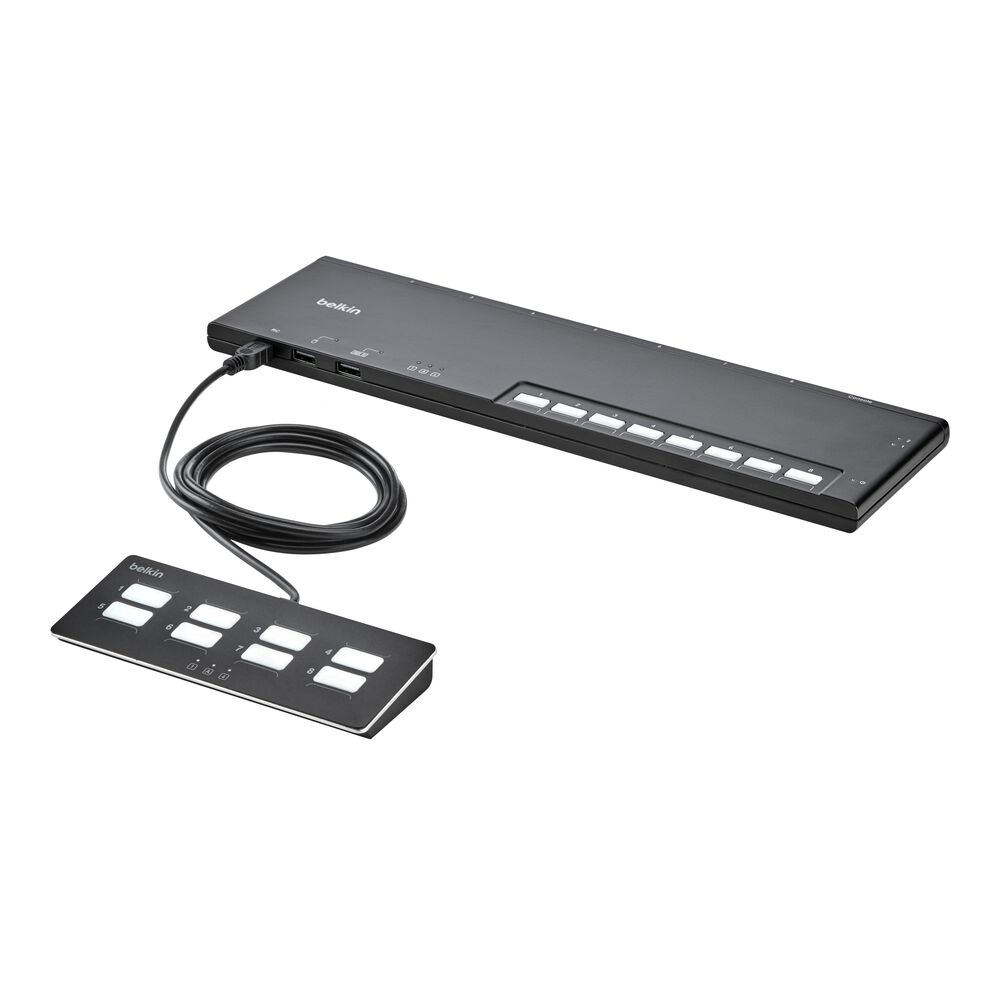

KVM Remote Control Support Compatible with Belkin KVM Remote with Integrated Keyboard

Compliance & Origin
NIAP Protection Profile NIAP PP 4.0 compliant
Common Criteria Certification Yes
TAA Compliant Yes
Country of Origin United States
Security Accreditation Designed to meet U.S. government secure switching standards
Certifications FCC Class A, UL, CE, RoHS

Advanced Security Features
Unidirectional Data Paths Yes – enforced through hardware data diodes
No Shared Resources Between Channels Yes
Tamper-Evident Seals Yes
Keyboard and Mouse Emulation Yes – prevents direct access to one channel from another
Automatic USB Device Filtering Yes – restricted to HID-class only
Secure CAC Authentication Yes – isolated CAC routing per channel
Non-Reprogrammable ROM Yes
