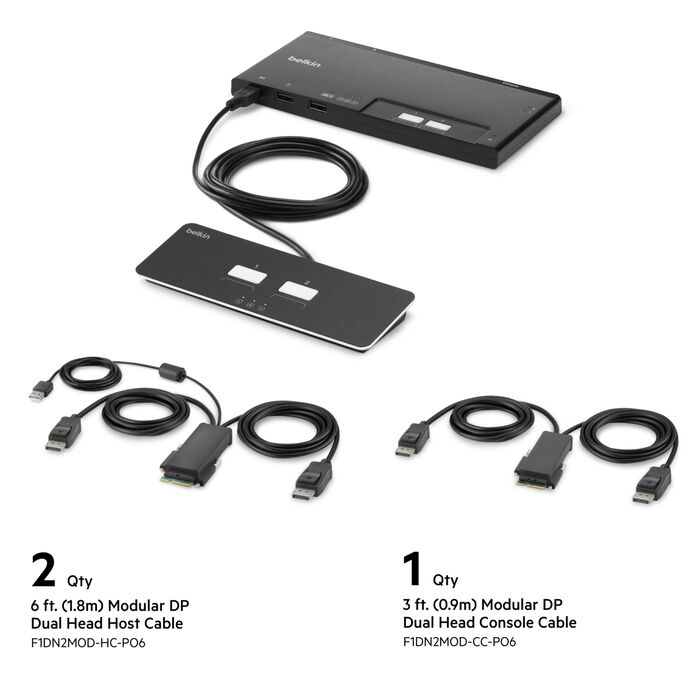

Belkin 2-Port Dual-Head DP Secure Modular KVM Switch PP4.0

VENDOR: BELKIN Mfg Part#: F1DN202MOD-PP-4 UPC#: 745883789610
1 3
Photo is for illustration purposes only. Actual product may be different.
$886.00
$886.00
Sale Sold out
MSRP: $1,128.00
Shipping calculated at checkout.
  • 2-port KVM switch supporting dual-display DisplayPort configurations
  • Supports 4K resolution at 30Hz for high-quality video output
  • Modular form factor optimized for desktop environments
  • Includes remote for flexible access control
  • Compliant with TAA regulations and made in the USA
  • Certified to Peripheral Protection Profile 4.0 (PP4.0) for high-security applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure, government-grade environments with PP4.0 certification
  • Maximizes desk space while supporting high-resolution dual-monitor setups
  • Backed by Belkin's trusted manufacturing and TAA-compliant U.S. production

Product Overview

The Belkin F1DN202MOD-PP-4 is a 2-Port Secure Modular KVM Switch ideal for high-security dual-monitor DisplayPort setups. Offering 4K@30Hz resolution, this device enables seamless switching between two systems while maintaining clarity and performance. Its modular desktop design promotes efficient use of workspace. With TAA compliance and manufacture in the United States, it is well-suited for sensitive deployment environments. The inclusion of Peripheral Protection Profile 4.0 certification ensures robust data isolation for mission-critical applications.

Specifications

Product Overview
Product Type Secure Modular KVM Switch
Manufacturer Belkin
Model F1DN202MOD-PP-4
Form Factor Desktop
Number of Computers Supported 2
Display Support Dual-head DisplayPort
Maximum Video Resolution 3840 x 2160 @ 30Hz (4K@30Hz)
Power Requirements External power adapter (included)
Connectivity Technology Wired
Switching Method Button on unit or remote port selector

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Trade Agreements Act (TAA) Compliant
Certifications NIAP Common Criteria PP4.0, FCC, UL, CE

Advanced Security Features
Security Certification NIAP Protection Profile v4.0
Peripheral Isolation Full peripheral emulation and isolation
Unidirectional Data Flow Yes
Tamper-Evident Seals Yes
Keyboard & Mouse Device Filtering Yes

Interfaces
Host Interface Type Modular Host Interface (requires separate Dongles)
Video Interface DisplayPort 1.2
USB Interface USB Type-A (keyboard and mouse)
Number of DisplayPort Inputs per Computer 2
Number of USB Type-A Ports (for peripherals) 2
Remote Port Selector Interface Mini-DIN
Audio Interface No audio switching

Physical & Environmental
Dimensions (W x D x H) 7.7 x 3.2 x 2.1 in (195.6 x 81.3 x 53.3 mm)
Weight 2.4 lbs (1.09 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% non-condensing
Storage Humidity 0% to 95% non-condensing
Enclosure Material Metal

Cloud Management & Licensing
Cloud Management Not supported
Software Licensing Not applicable
