Products Memory, Storage and Components Belkin 4-Port Dual Head DVI...

Belkin 4-Port Dual Head DVI Secure KVM Switch with Remote - F1DN204MOD-DD-4

VENDOR: BELKIN Mfg Part#: F1DN204MOD-DD-4 UPC#: 745883789634
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,223.00
$1,223.00
Sale Sold out
MSRP: $1,558.00
Shipping calculated at checkout.
  • - Supports up to 4 connected computers
  • - Dual-head DVI-D video output with resolutions up to 3840x2160 @30Hz
  • - Compliant with NIAP PP PSD 4.0 for secure KVM environments

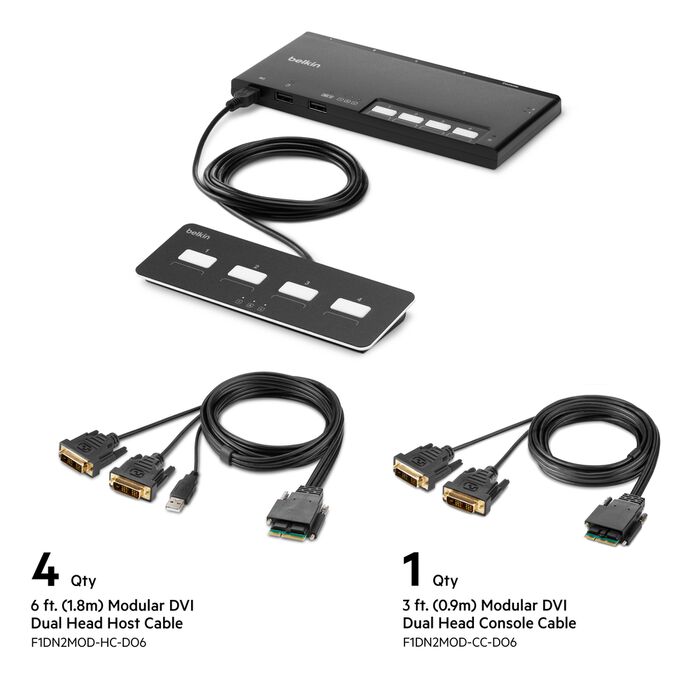

  • - Includes Belkin F1DN204MOD-BA-4 Modular Switch Base Unit
  • - Features tamper-evident packaging for secure transport
  • - TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure, multi-domain environments with NIAP PP PSD 4.0 compliance.
  • Enables dual-display productivity with high-resolution DVI support up to 4K.
  • Trusted for sensitive operations with TAA compliance and secure, tamper-evident packaging.

Product Overview

The Belkin F1DN204MOD-DD-4 is a 4-port modular secure KVM switch with dual-head DVI-D support, enabling seamless control of four systems from one console. It meets the NIAP PP PSD 4.0 compliance standard, ensuring high-assurance security in sensitive environments. With 4K resolution at 30Hz support, tamper-evident packaging, and TAA compliance, this switch is ideal for secure, high-performance command centers and classified network operations.

Specifications

Product Overview
Product Type Secure Modular KVM Switch
Model F1DN204MOD-DD-4
Form Factor Desktop
Number of Computers Supported 4
Monitor Support Dual-head
Video Resolution Supported Up to 3840 x 2160 @ 30Hz (4K UHD)
Device Type KVM Switch
Power Supply External power adapter
Power Consumption 15W (typical)
Power Input 12V DC, 3A

Physical & Environmental
Dimensions (WxDxH) 17.3 x 6.7 x 2.0 in (44 x 17 x 5 cm)
Weight 7.05 lbs (3.2 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% non-condensing
Storage Humidity 0% to 95% non-condensing
Chassis Material Metal

Cloud Management & Licensing
Cloud Management Not supported
Licensing Requirements None
Remote Control Includes remote control module via RJ-45

Interfaces
Computer Ports 4 x DVI-D dual-link, 4 x USB Type B, 4 x Audio In/Out (3.5mm)
Console Ports 2 x DVI-D, 3 x USB Type A, 2 x Audio Out (3.5mm)
USB Hub Dedicated peripheral isolation per port
User Console Keyboard/Mouse Interface USB
Video Interface Type DVI-D Dual Link
Max Video Bandwidth 165 MHz per channel
Supported Audio Type Analog Stereo
Remote Control Interface RJ-45 (for included remote)

Compliance & Origin
NIAP Certification PP PSD 4.0 Compliant
TAA Compliant Yes
Tamper Evident Packaging Yes
Regulatory Standards FCC Class A, UL, CE
Country of Origin United States
RoHS Compliance Yes

Advanced Security Features
Security Profile Designed for high-security environments with strict data path isolation (air gap), no memory buffer, and unidirectional video paths
Keyboard and Mouse Emulation Always-on emulation prevents intrusion
Port Selection Front-panel push buttons; remote control supported
Data Path Isolation No data leakage between ports; full channel-to-channel isolation
USB Peripheral Security Filtered USB ports to prevent unauthorized device access
