Belkin 8-Port Dual Monitor Secure KVM Switch F1DN208KVM-UN-4

VENDOR: BELKIN Mfg Part#: F1DN208KVM-UN-4 UPC#: 745883800988
1 5
Photo is for illustration purposes only. Actual product may be different.
$3,157.00
$3,157.00
Sale Sold out
MSRP: $4,020.00
Shipping calculated at checkout.
  • 8-port secure KVM switch with dual monitor (DP/HDMI) support
  • Supports up to 4K resolution per display
  • Compliant with NIAP Protection Profile 4.0 (PP4.0)

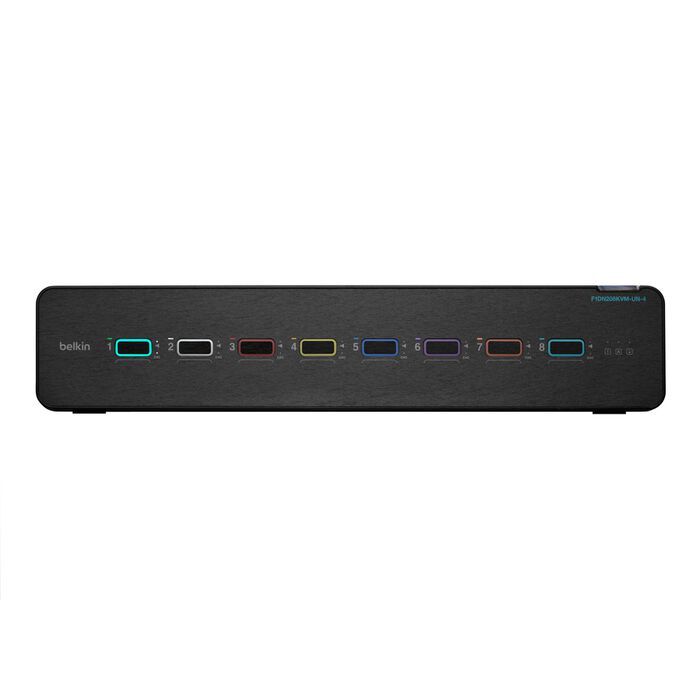

  • Customizable port coloring and naming for reduced user error
  • Supports both desktop and rack-mount form factors
  • Made in the USA and TAA-compliant for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ensures high data integrity and cybersecurity compliance with NIAP PP4.0 certification
  • Facilitates multi-monitor workflows with dual 4K display support on each port
  • Minimizes operational errors with customizable port identification and integrated keyboard remote control

Product Overview

The Belkin F1DN208KVM-UN-4 is an advanced 8-port Secure KVM Switch designed for high-assurance desktop environments requiring dual monitor support. This second-generation switch supports both DisplayPort and HDMI video interfaces with full 4K resolution, ensuring clarity and consistency across all connected systems. Its form factor supports desktop and rack-mount installations, offering flexibility for various deployment scenarios. Built in adherence to the NIAP Protection Profile version 4.0 (PP4.0), it addresses stringent security measures for peripheral switching in secure installations.

With wired connectivity and USB host ports, this KVM switch supports seamless switching and control over eight systems simultaneously. It features customizable port coloring and front-panel ID naming to minimize user error during port switching. An integrated remote with keyboard supports smart color-coded ID mapping. This TAA-compliant device, made in the United States, offers dual-monitor support and a compact 17.2 x 8.1 x 3.5-inch footprint—ideal for compact or secure deployments.

Engineered for critical environments like defense, finance, and healthcare, this KVM switch boosts computing efficiency and user accuracy while ensuring top-tier cybersecurity compliance.

Specifications

Product Overview
Product Type Secure KVM Switch
Number of Computers Supported 8
Monitor Support Dual Monitor
Max Resolution 4K
Form Factor Desktop
Additional Form Factor Rack-Mountable
Model Number F1DN208KVM-UN-4
Enclosure Color Black
Power Requirements 100-240V AC, 50-60Hz
Power Consumption 25W (typical)
Included Accessories Belkin F1DN208KVM-UN-4 Secure Universal 2nd Gen 8-Port, Dual Monitor Switch

Wireless Features
Wireless Connectivity

Compliance & Origin
NIAP Protection Profile Version 4.0 (PP4.0)
TAA Compliant Yes
Compliant Standards UL, CE, FCC Class A, RoHS
Country of Origin United States

Advanced Security Features
Secure Switching Standards NIAP PSD PP 4.0
USB Device Filtering Yes
Keyboard and Mouse Emulation Always-On Emulation
Tamper-Evident Seals Yes
Intrusion Detection Active chassis intrusion detection
Isolation Between Channels Full USB port and signal path isolation

Interfaces
Video Interfaces Supported DisplayPort, HDMI
Number of Ports 8
Display Connections 8 x DisplayPort, 8 x HDMI
USB Host Ports 8 x USB Type B
Console USB Ports 2 x USB Type A
Keyboard/Mouse Interface USB
Remote Control Interface RJ-45
Audio Support No

Physical & Environmental
Width 17.2 in
Depth 3.5 in
Height 8.1 in
Weight 9.7 lbs (4.4 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Humidity (operating) 0% to 80% RH, non-condensing
Cooling Passive (fanless)
Mount Type Rack-mount brackets included

Cloud Management & Licensing
Cloud Management Not Supported
Management Interface Front Panel Controls and Remote Keyboard
Licensing Requirements None
Color-Coded Port Management Yes, customizable port coloring and front-panel ID labeling
