| Product Type | Secure KVM Switch |
| Model Name | Modular 8-Port 1-Head Base SKVM with Remote PP4.0 |
| Manufacturer Part Number | F1DN108MOD-BA-4 |
| Form Factor | Desktop / Rack-mountable (with optional brackets) |
| Number of Computers Supported | 8 |
| Number of Users Supported | 1 |
| Modular Architecture | Yes |
| Remote Control Support | Yes, via Remote Control Module (included) |
| Power Input | 100–240V AC, 50/60Hz |
| Power Consumption | Max 20W |
| Weight | 2.75 lbs (1.25 kg) |

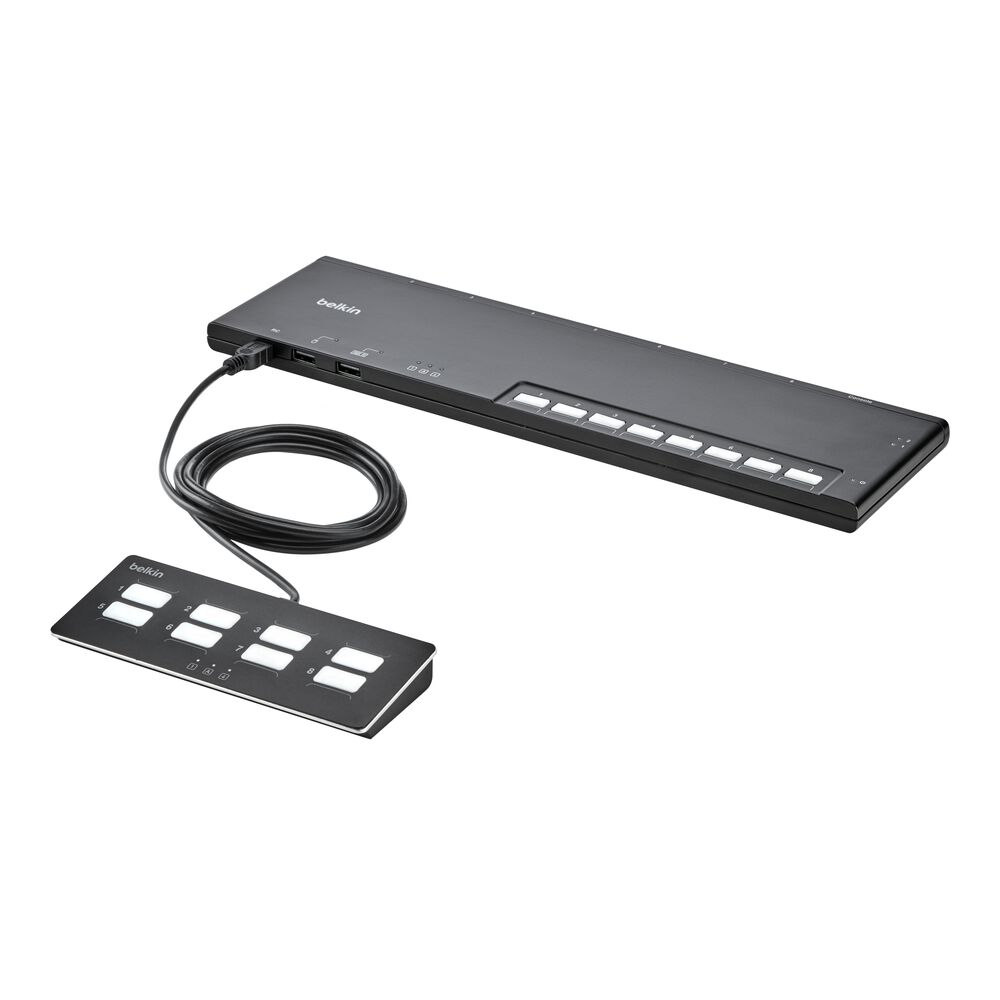

Belkin Modular 8-Port 1-Head Base SKVM with Remote PP4.0
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,181.00
Regular price
Sale price
$1,181.00
Unit price
per
MSRP: $1,505.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 8-port modular KVM switch for centralized hardware control
- TAA-compliant for use in federally regulated environments
- Remote switching capabilities compatible with PP4.0
- Made in the United States, supporting domestic sourcing policies
- Modular base design for flexible integration
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Enhances IT efficiency by consolidating control of up to eight systems using one console.
- Complies with TAA requirements, making it suitable for government and regulated deployments.
- Made in the USA, supporting procurement policies that favor domestic products.
Product Overview
The Belkin Modular 8-Port 1-Head Base SKVM with Remote PP4.0 is a powerful and secure KVM solution that consolidates management for up to eight systems. Engineered for TAA compliance and modular scalability, it supports high-security use cases in enterprise and public-sector environments. Remote capabilities and compatibility with PP4.0 standards empower off-site server access and flexible deployment. Made in the United States, it's ideal for regulated industries requiring reliable, centralized control of networked systems.
Specifications
Product Overview
Physical & Environmental
| Dimensions (WxDxH) | 17.2 × 5.7 × 1.72 in (437 × 145 × 44 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 0% to 80% (non-condensing) |
| Rack Mountable | Optional |
| Color | Black/Silver |
Cloud Management & Licensing
| Cloud Management Support | No |
| Management Interface | Local (via remote module) |
| Licensing Requirements | None |
Interfaces
| Number of KVM Ports | 8 |
| Console Ports | 1 video, 2 USB, 1 audio (3.5 mm) |
| KVM Port Type | Custom Modular KVM Host Ports (via Cables) |
| Video Output Type | DisplayPort |
| USB Ports | 2 × USB Type-A (for keyboard and mouse) |
| Audio Support | Yes, stereo out (3.5 mm) |
| Remote Port Interface | RJ-45 (for Remote Control Module) |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | United States |
| Certifications | FCC, ICES, CE, VCCI, RCM |
| Security Profile | PP4.0 certified |
| Compliance Standards | Common Criteria, NIAP Protection Profile 4.0 |
Advanced Security Features
| Secure Switching Technology | Unidirectional data path enforcement |
| Peripheral Isolation | USB port filtering and device whitelisting |
| Tamper-Evident Design | Yes |
| Active Anti-Tampering | Yes |
| Keyboard/Mouse Emulation | Yes, full-time emulation |
| Custom CAC Port Isolation | Optional with CAC port module |
