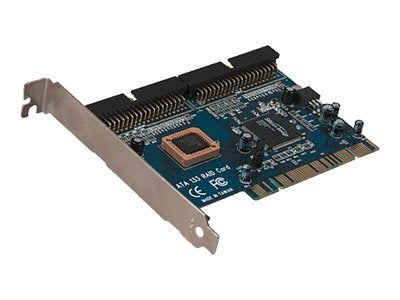

Belkin Ultra ATA/133 PCI Card 133 MBps F5U098V

VENDOR: BELKIN Mfg Part#: F5U098V UPC#: 722868569573
1 3
Photo is for illustration purposes only. Actual product may be different.
$59.00
$59.00
Sale Sold out
MSRP: $70.00
Shipping calculated at checkout.
  • Storage controller with 2 channels for up to 4 ATA-133 devices
  • PCI plug-in card form factor for desktop expansion
  • Supports hard drives, CD/DVD drives, and MO disk drives
  • Data transfer rate up to 133 MBps
  • Features 2 x 40-pin internal IDC interfaces
  • Compliant with TAA and backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed 133 MBps data transfer, ideal for storage-intensive applications
  • Supports up to four storage devices, maximizing system upgrade potential
  • Backed by a limited lifetime warranty, ensuring long-term dependability

Product Overview

The Belkin Ultra ATA/133 PCI Card, model F5U098V, is a plug-in storage controller engineered to enable high-speed connection of ATA-133 drives via standard PCI interface. It supports data transfer rates up to 133 MBps and connects up to 4 devices through two 40-pin internal IDC connectors. Compatible with hard drives, CD/DVD drives, and MO disk drives, this card enhances legacy system potential. With TAA compliance, country-of-origin: Taiwan, and a limited lifetime warranty, it is ideal for institutional or enterprise expansion needs.

Specifications

Product Overview
Device Type Storage controller
Form Factor Plug-in card
Product Family Storage Devices
Product Subcategory IDE / EIDE
Manufacturer Part Number F5U098V
UPC 722868569573
Power Requirements Supplied via PCI bus
Warranty Limited lifetime warranty

Physical & Environmental
Card Height Standard-profile
Dimensions Approx. 4.7 in x 2.6 in (120 mm x 66 mm)
Weight Approx. 0.15 lbs (0.07 kg)
Operating Temperature 0°C to 55°C
Storage Temperature -20°C to 70°C
Operating Humidity 5% to 90% non-condensing

Cloud Management & Licensing
Management Interface
Cloud-Based Management
Licensing Required No

Interfaces
Host Interface PCI
Interface Standard ATA-133 (Ultra ATA/133)
Data Transfer Rate 133 MBps
Number of Storage Channels 2
Internal Connector Type 40-pin IDC
Number of Internal Ports 2
Maximum Supported Drives 4
Supported Drives Hard drive, CD drive, DVD drive, MO disk drive

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
Certifications FCC, CE

Advanced Security Features
RAID Support No (non-RAID controller)
Drive Password Security
Hardware Encryption
Access Control Features
