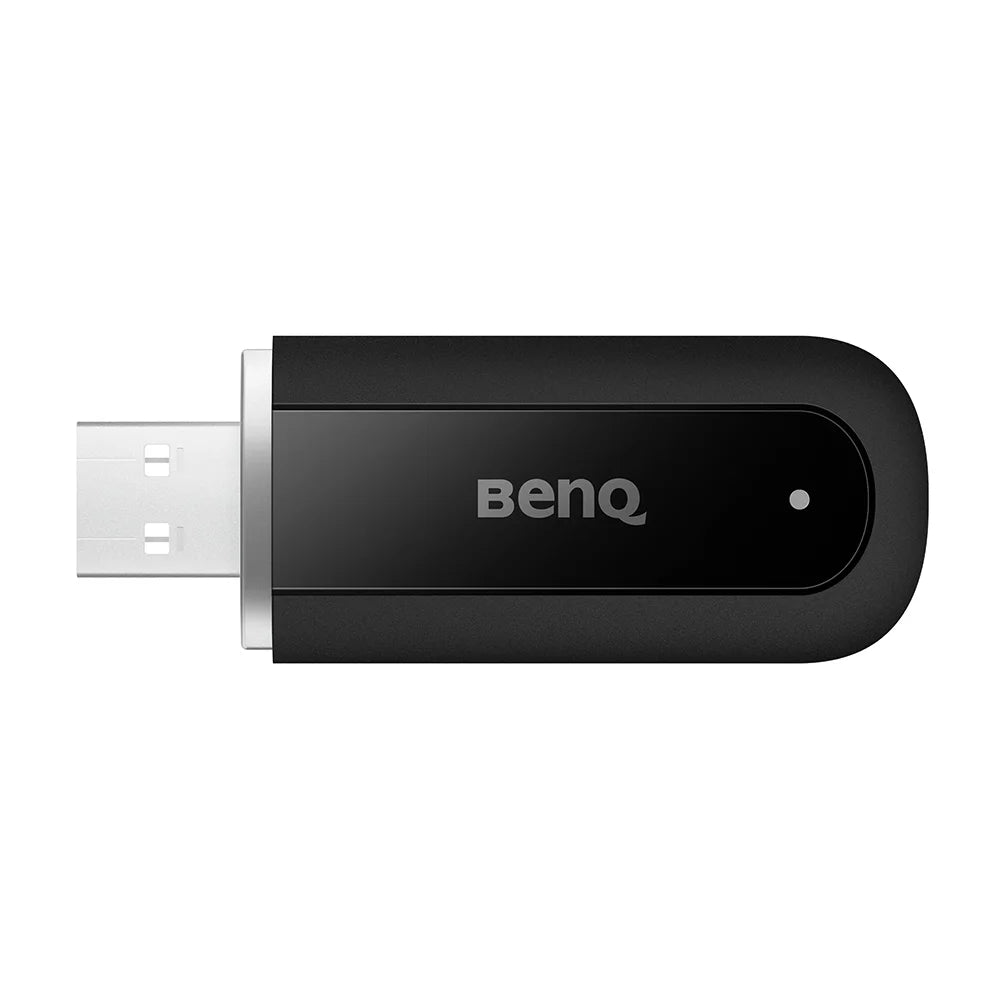

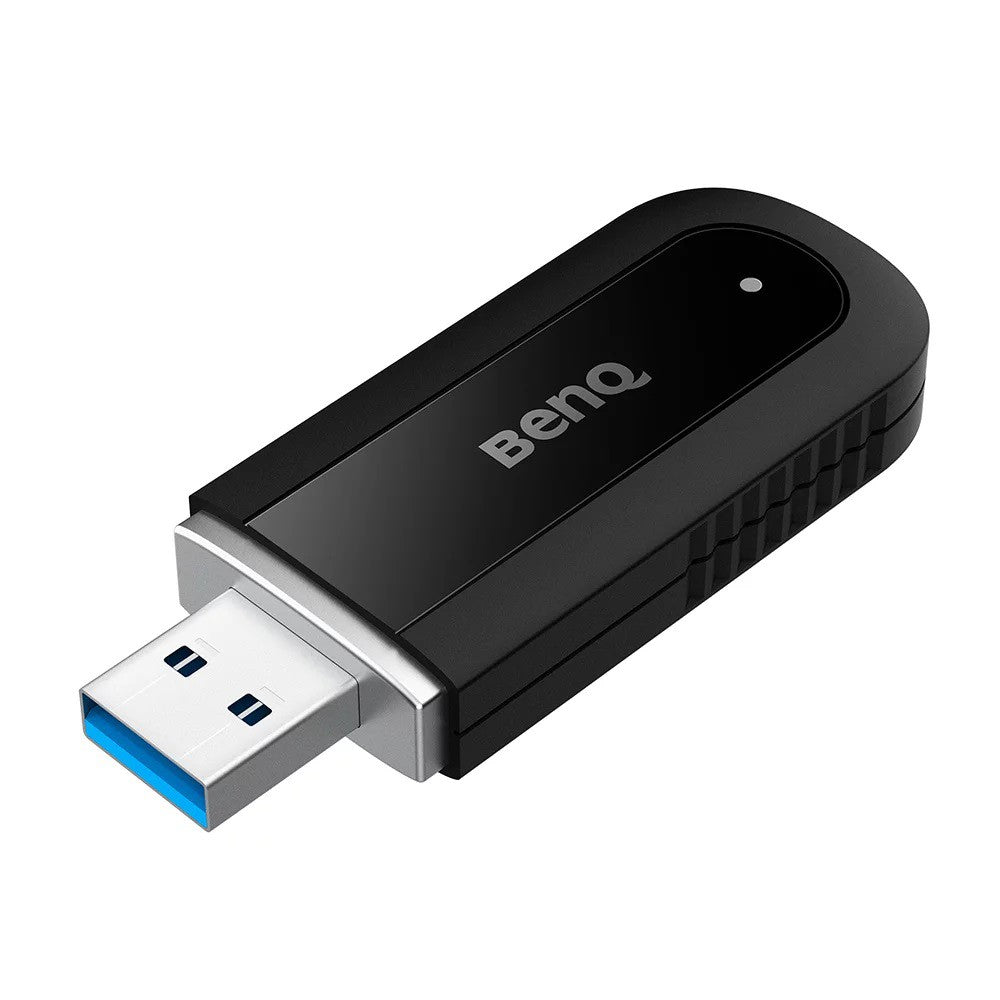

BenQ InstaShare Button for RM03/RP03, USB-C, Wi-Fi 5

VENDOR: BENQ Mfg Part#: 5A.F7V28.BP1 UPC#: 840046045999
1 2
Photo is for illustration purposes only. Actual product may be different.
$418.00
$418.00
Sale Sold out
Shipping calculated at checkout.
  • USB-C interface with external form factor and wireless connectivity
  • Supports Wi-Fi 5 (IEEE 802.11ac) on the 5 GHz band
  • 4K resolution output and 2T2R MIMO technology for reliable streaming
  • High-grade security including WPA2/WPA3 and AES-256 encryption
  • Compact design (2.6 x 2.6 x 0.9 in) with USB power and plug-and-play functionality
  • Maximum operating range of 49 ft in open space

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables seamless wireless presentation on BenQ RM03/RP03 devices when used with the TDY31 dongle
  • Advanced wireless performance with 4K resolution, 2T2R MIMO, and Wi-Fi 5 for enterprise-grade meetings
  • Strong data security through WPA3, WPA2, and AES-256 encryption ensures compliance with modern IT standards

Product Overview

The BenQ InstaShare Button is a wireless presentation adapter designed for the RM03 and RP03 display series. It operates over USB-C and enables high-speed Wi-Fi 5 communication on the 5 GHz band, ensuring seamless 4K content sharing. With 2T2R MIMO technology and support for WPA3 and AES-256 encryption, it offers secure and reliable connectivity up to 49 feet. The device is plug-and-play and powered via USB, housed in a compact 2.6 x 2.6 x 0.9 inch silver gray form factor. A 2-year warranty is included. Must be used in conjunction with the TDY31 dongle.

Specifications

Product Overview
Product Type Network media streaming adapter
Manufacturer BenQ
Model Number 5A.F7V28.BP1
UPC 840046045999
Form Factor External
Power Requirements USB powered
Color Silver gray
Maximum Operating Range (Open Space) 49 ft
Supported Display Resolution Up to 4K (3840x2160)
Compatible Displays BenQ RM03 and RP03 series

Wireless Features
Wi-Fi Standard Wi-Fi 5 (802.11ac)
MIMO Technology 2T2R MIMO
Frequency Band 5 GHz
Encryption Protocols Supported WPA2-Enterprise, WPA3-Personal, WPA2-Personal, AES-256
Wireless Transmission Features Low latency wireless display sharing with 4K support

Compliance & Origin
Country of Origin China
TAA Compliant No
Compliance Standards IEEE 802.11ac, AES-256, Plug and Play

Advanced Security Features
Encryption Algorithm AES-256
Wireless Security Protocols WPA3-Personal, WPA2-Enterprise, WPA2-Personal

Interfaces
Interface Type USB-C
Connectivity Technology Wireless
Bus Type USB-C

Physical & Environmental
Width 2.6 in
Depth 2.6 in
Height 0.9 in
Operating Temperature (Min) 32 °F (0 °C)
Operating Temperature (Max) 104 °F (40 °C)
Operating Humidity Range 10% - 80%

Cloud Management & Licensing
Cloud Management Support
Licensing Requirements
Bundled Software/Features InstaShare software support (BenQ ecosystem)

Additional Information
Usage Notes Requires use with InstaShare Button Receiver (TDY31 dongle)
Warranty 2-year limited hardware warranty
Plug-and-Play Yes
Presentation Switching Support Yes
