Products Memory, Storage and Components Bosch DIP-4420IG-00N Divar ...

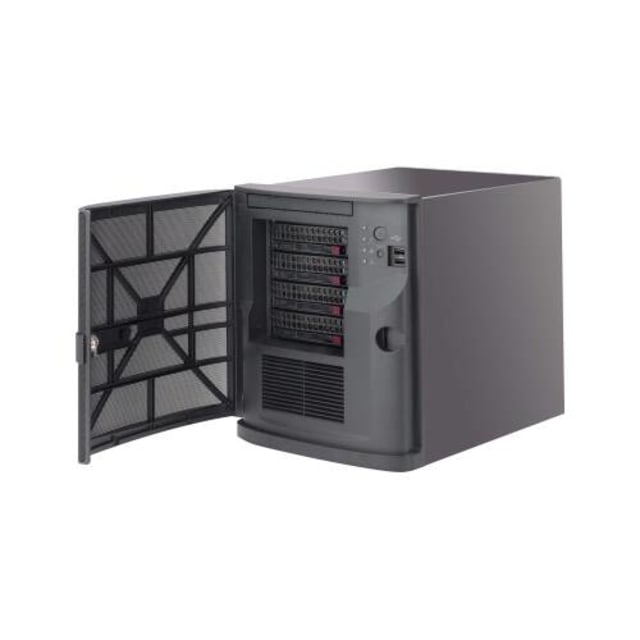

Bosch DIP-4420IG-00N Divar IP All-in-One 4000 Video Server, 32ch, TAA

VENDOR: BOSCH Mfg Part#: DIP-4420IG-00N UPC#: 800549624695
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,092.00
$4,092.00
Sale Sold out
Shipping calculated at checkout.
  • Supports up to 32 video channels for IP surveillance applications
  • Intel Core i3-10100E CPU and 8 GB RAM for reliable multi-channel processing
  • 256GB SSD for OS, supports up to 36 TB via Serial ATA interface
  • Dual Gigabit Ethernet ports for high-speed redundant network connectivity
  • Video outputs include HDMI x2 and DisplayPort x1; USB 3.2 Gen2 x4 for peripheral support
  • TAA, NDAA, and IEC 62443 compliant with Trusted Platform Module 2.0 for enhanced security

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and institutional use with full TAA and NDAA compliance
  • Flexible storage architecture supports up to 36 TB, allowing future-proofed scalability
  • Comprehensive connectivity including dual Gigabit Ethernet and modern video/audio ports enhances deployment flexibility

Product Overview

The Bosch Divar IP all-in-one 4000 DIP-4420IG-00N is a versatile video server optimized for managing 32 IP video channels. It features an Intel Core i3 CPU, 8 GB RAM, and Windows Server IoT 2022, plus a 256GB SSD OS drive. This model does not include internal storage but supports up to 36 TB via Serial ATA drives. Complying with TAA and global regulatory standards such as NDAA and IEC 62443, it’s built for secure applications. Connectivity includes dual Gigabit Ethernet, dual HDMI, DisplayPort, USB 2.0 and USB 3.2 Gen2 interfaces. With TPM 2.0 support and a compact form factor, it addresses scalable and reliable surveillance requirements in sensitive environments.

Specifications

Product Overview
Type Video server
Form Factor Compact desktop
Video Channels Supported 32
Processor Intel Core i3-10100E
Graphics Intel UHD Graphics 630
Memory Installed 8 GB
Operating System Microsoft Windows Server IoT 2022
Operating System Drive 256 GB SSD
Storage Capacity Supported Up to 36 TB
Power Requirements 100 - 240 V AC, 50/60 Hz
Weight 12.13 lbs

Physical & Environmental
Width 9.4 in
Depth 8.3 in
Height 11.1 in
Minimum Operating Temperature 32 °F
Maximum Operating Temperature 104 °F
Operating Humidity Range 8% - 90% (non-condensing)

Cloud Management & Licensing
Management Interface Local and network-based via Windows Server IoT 2022 tools
Licensing Type OEM Microsoft Windows Server license included
Cloud Support Supports integration with Bosch Video Management System (BVMS)

Interfaces
Network Interface 10/100/1000Base-T Ethernet
Network Ports 2 x RJ-45 (Gigabit Ethernet)
HDMI Ports 2
DisplayPort 1 x DisplayPort
USB 2.0 Ports 2
USB 3.2 Gen2 Ports 4
Audio Input 1 x 3.5 mm mini-phone
Audio Output 1 x 3.5 mm mini-phone
Internal Drive Interface Serial ATA (SATA)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
NDAA Compliant Yes
Compliance Standards UL, VCCI, BSMI, SABS, CB, FCC, RoHS, WEEE, KC, China RoHS, RCM, NDAA, IEC 62443, UKCA, CMIM, NRCS LOA

Advanced Security Features
Trusted Platform Module (TPM) TPM 2.0
Secure Hardware Compliance IEC 62443 certified
