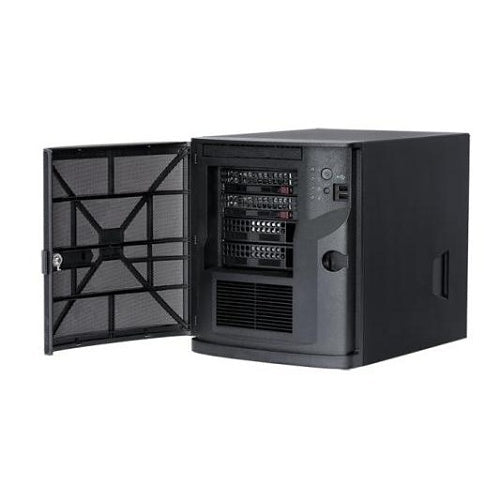

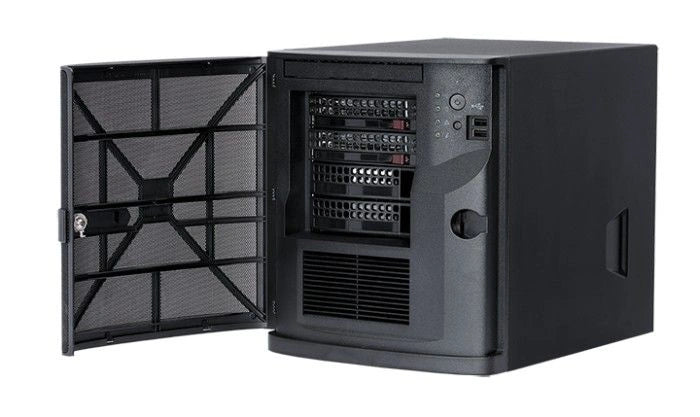

Bosch DIP-4424IG-2HD Management Appliance, 2x4TB, 32-Channel Video Server

VENDOR: BOSCH Mfg Part#: DIP-4424IG-2HD UPC#: 800549624701
1 2
Photo is for illustration purposes only. Actual product may be different.
$5,196.00
$5,196.00
Sale Sold out
Shipping calculated at checkout.
  • 32-channel video server with networked support for large-scale surveillance
  • Equipped with 2 x 4TB SATA hard drives for a total of 8TB local storage
  • Powered by Intel Core i3-10100E CPU and 8GB RAM for smooth processing
  • Offers HDMI x2, DisplayPort x1, USB 2.0 x2, USB 3.2 Gen2 Type C x4 for versatile I/O
  • Dual 10/100/1000Base-T Ethernet ports ensure fast, reliable network integration
  • Supports operating temperatures from 32°F to 104°F and 8–90% non-condensing humidity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • All-in-one solution reduces complexity and total cost of ownership by integrating recording, management, and storage
  • Scalable 32-channel support and 8TB storage enable mid-to-large surveillance deployments
  • Backed by a 5-year warranty and built in the U.S., ensuring long-term reliability and TAA compliance

Product Overview

The Bosch DIP-4424IG-2HD Management Appliance is an all-in-one video server with 2x4TB hard drives and support for 32 video channels, offering 8GB of RAM and powered by an Intel Core i3-10100E processor. It features dual HDMI and DisplayPort outputs, USB 3.2 Gen2 Type-C connectivity, and Gigabit Ethernet support. Built to operate within harsh conditions and compliant with TAA regulations, this preconfigured system allows seamless surveillance integration with centralized storage and network capability. It is housed in a compact, rugged enclosure and backed by a comprehensive 5-year warranty.

Specifications

Product Overview
Device Type Video server
Product Description Bosch Divar IP all-in-one 5000 DIP-4424IG-2HD Management Appliance - video server - 32 channels
Model DIP-4424IG-2HD
Processor Intel Core i3-10100E
Installed RAM 8 GB
Supported Video Channels 32
Form Factor Desktop/Rugged enclosure
Power Requirements 120 / 230 V
Frequency 50/60 Hz
Power Consumption 145 Watt
Warranty 5 years

Storage
Total Installed Storage 8 TB
Drive Configuration 2 x 4 TB
Drive Type HDD
Drive Capacity 4 TB (each)
Installed Drive Quantity 2

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes

Advanced Security Features
System Protection TPM 2.0, BIOS password protection, role-based access
Video Data Encryption Yes (AES encryption supported)
Secure Logins Role-based user management and password policies

Interfaces
Video Output Ports 2 x HDMI, 1 x DisplayPort
USB Ports 2 x USB 2.0, 4 x USB 3.2 Gen2 Type-C
Ethernet Ports 2 x 10/100/1000Base-T
Network Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T
Hard Drive Interface Serial ATA

Physical & Environmental
Width 9.4 in
Depth 8.3 in
Height 11.1 in
Weight 14.33 lbs
Minimum Operating Temperature 32 °F
Maximum Operating Temperature 104 °F
Operating Humidity 8 - 90% (non-condensing)

Cloud Management & Licensing
Preconfigured OS & VMS Yes, pre-installed Bosch Video Management System
Licensing Included 32-channel license included
System Management Interface Web-based management, local GUI
