BOSCH Fixed Dome 8MP HDR IP Camera NDE-5704-A

VENDOR: BOSCH Mfg Part#: NDE-5704-A UPC#: 800549994057
1 1

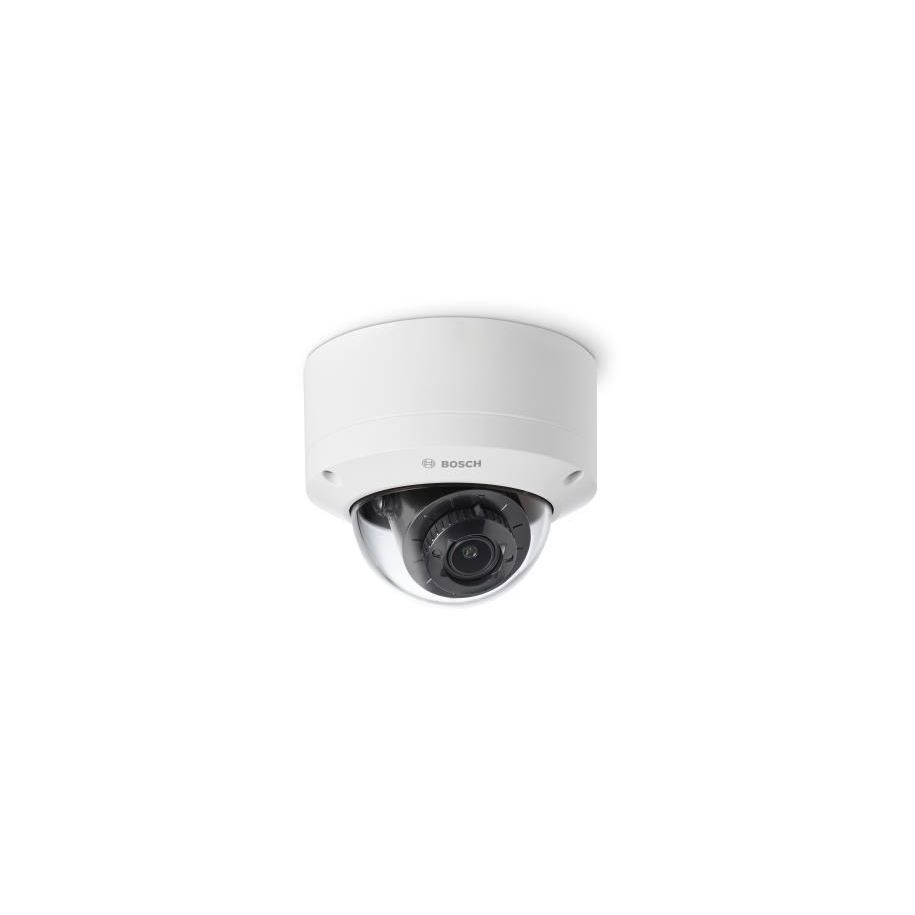

Photo is for illustration purposes only. Actual product may be different.
$1,538.00
$1,538.00
Sale Sold out
Shipping calculated at checkout.
  • 8MP resolution with HDR imaging for high-detail surveillance
  • 3.4–10.2mm varifocal lens for flexible field-of-view configuration
  • IP66 weatherproof housing suitable for outdoor use
  • IK10-rated vandal resistance for high-impact environments
  • TAA compliant and manufactured in Portugal
  • CMOS sensor for improved low-light performance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for durability with IP66 and IK10 ratings, ensuring operation in outdoor and high-traffic environments.
  • TAA compliance makes it a trusted choice for government and regulated industry deployments.
  • Adjustable 3.4–10.2mm lens enhances usability across diverse surveillance scenarios, from wide overviews to targeted monitoring.

Product Overview

Fixed dome 8MP IP66 IK10 IR - Dome - CMOS - 8MP - 3.6-10 mm - 1-30

Specifications

Product Overview
Product Type Fixed Dome IP Camera
Image Sensor Type 1/1.8-inch CMOS
Max Resolution 3840 x 2160 (4K UHD)
Effective Pixels 8 Megapixels
Lens Type Motorized Varifocal Lens
Focal Length 3.6 – 10 mm
Aperture F1.5 – F2.4
Horizontal Field of View 109° – 34°
IR Illumination Distance Up to 40 m (131 ft)
Day/Night Function Yes, with IR Cut Filter
HDR Yes, High Dynamic Range (120 dB)
Min. Illumination 0.007 lux (color); 0 lux with IR
Power Requirements 12 VDC / PoE (802.3af Class 3)
Power Consumption Up to 9 W
Form Factor Outdoor Fixed Dome
Mount Type Surface or Pendant Mount (via accessories)
Ingress Protection Rating IP66
Vandal Resistance Rating IK10
Weight Approximately 860 g (1.9 lb)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Portugal
TAA Compliant Yes
Certifications CE, FCC, UL, cUL, EN 60950-1, EN 50130-4
Environment Standards RoHS, REACH

Advanced Security Features
Encryption Support HTTPS, TLS 1.2, SRTP
Password Protection Multi-level user authentication
Signed Firmware Yes
Secure Boot Yes
Trusted Platform Module (TPM) Yes

Interfaces
Network Interface 10/100 Base-T Fast Ethernet, RJ-45
Video Compression Formats H.265, H.264, MJPEG
Streaming Triple Streaming
Edge Storage microSD/microSDHC/microSDXC slot (up to 2 TB)
Audio Support Two-way audio via optional microphone and speaker
Audio Compression AAC, G.711, L16
Alarm I/O 1 input / 1 output

Physical & Environmental
Dimensions (D x H) 145 mm x 132 mm (5.7 in x 5.2 in)
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 5% to 93% RH, non-condensing
Color White with Clear Bubble
Material Aluminum Housing, Polycarbonate Bubble

Cloud Management & Licensing
Remote Configuration Supported via Bosch Configuration Manager
ONVIF Compliance Profile S, G, T
Cloud Integration Bosch Remote Portal supported
Licensing Model No license required for basic use
