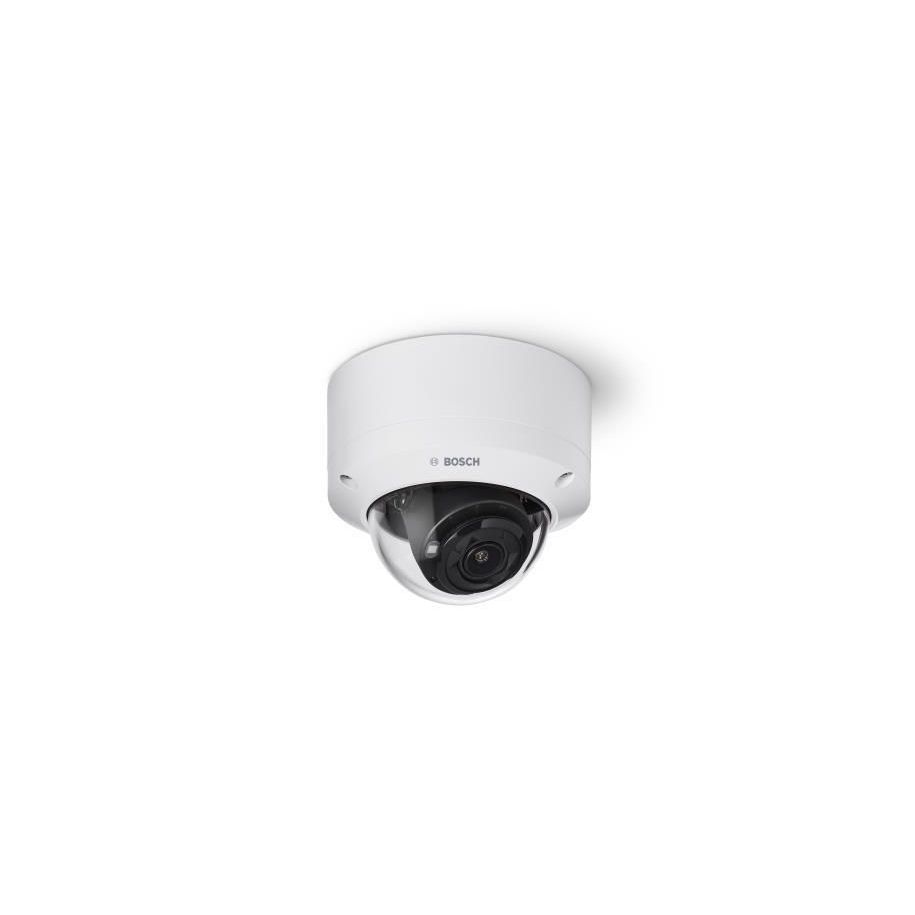

Bosch Fixed Dome 8MP HDR IR IP Camera NDE-5704-AL

VENDOR: BOSCH Mfg Part#: NDE-5704-AL UPC#: 800549994064
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,663.00
$1,663.00
Sale Sold out
Shipping calculated at checkout.
  • 8MP high-resolution imaging for detailed surveillance
  • HDR support to manage complex lighting environments
  • 3.4–10.2mm motorized zoom lens for versatile field of view
  • Integrated IR illumination for night-time visibility
  • IP66 rating for water and dust resistance
  • IK10 rating for vandal resistance and outdoor durability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High-definition 8MP resolution and HDR ensure critical details are captured even in variable lighting.
  • Built with IP66 and IK10 ratings for reliable operation in outdoor or high-risk installations.
  • Complies with TAA regulations, making it suitable for federal and regulated commercial projects.

Product Overview

Fixed dome 8MP HDR 3.2-10.5mm IP66 IR IO - Dome - CMOS - 8MP - 3.4-10.2mm - 1-30

Specifications

Product Overview
Product Type Fixed Dome Network Camera
Image Sensor Type 1/2.5" Progressive Scan CMOS
Maximum Resolution 3840 x 2160 (8MP UHD)
Lens Type Motorized Varifocal
Focal Length 3.2 – 10.5 mm
Aperture F1.6 – F3.3
Field of View (Horizontal) 106° – 33°
Field of View (Vertical) 56° – 19°
Day/Night Functionality Yes, with automatic IR-cut filter
IR Illumination Range Up to 40 m (131 ft)
High Dynamic Range (HDR) Yes, up to 120 dB
Minimum Illumination (Color) 0.04 lux
Minimum Illumination (B/W) 0 lux with IR
Form Factor Fixed Dome
Power Requirements PoE (IEEE 802.3af, Class 3) or 12 VDC
Power Consumption Typical 6.1 W / Maximum 12.0 W
Weight 0.82 kg (1.81 lb)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Portugal
TAA Compliant Yes
Certifications CE, FCC, UL, cUL, EN 60950-1, RCM
RoHS Compliant Yes

Advanced Security Features
Password Protection Yes
Firmware Signing Yes, RSA signature-based
Encrypted Communication HTTPS, SRTP, TLS 1.2/1.3
Edge-Based Video Analytics Essential Video Analytics included
Tamper Detection Yes

Interfaces
Network Interface 1 x RJ-45 10/100Base-T Ethernet
Video Compression H.265, H.264, MJPEG
Audio Support 2-way audio (1 in / 1 out), G.711, AAC
Alarm I/O 2 inputs / 1 output
Local Storage MicroSD/SDHC/SDXC card slot up to 2 TB
ONVIF Compatibility Profile S, Profile T, Profile G

Physical & Environmental
Housing Material Aluminum and polycarbonate dome
Outdoor Rating IP66
Vandal Resistance IK10
Operating Temperature -30°C to +50°C (-22°F to +122°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 5% – 93% (non-condensing)
Dimensions (Ø x H) 145 x 130 mm (5.7 x 5.1 in)

Cloud Management & Licensing
Web-Based Management Interface Yes, via Bosch Configuration Manager or web browser
Cloud Connectivity Bosch Remote Portal supported
License Requirements No license required for basic functionality
