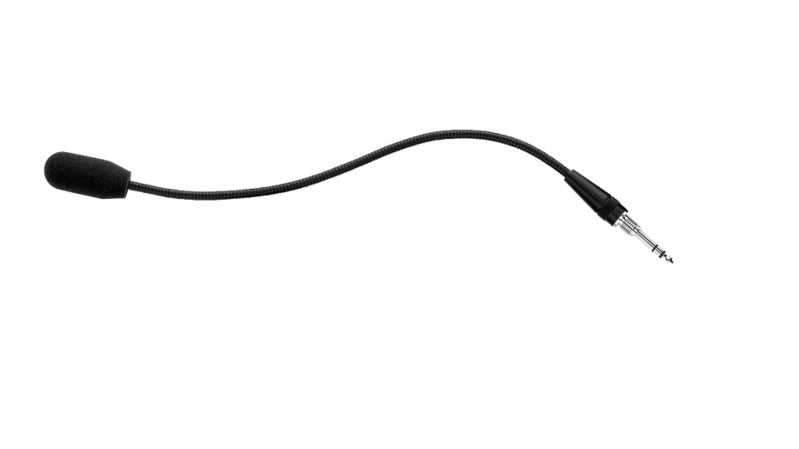

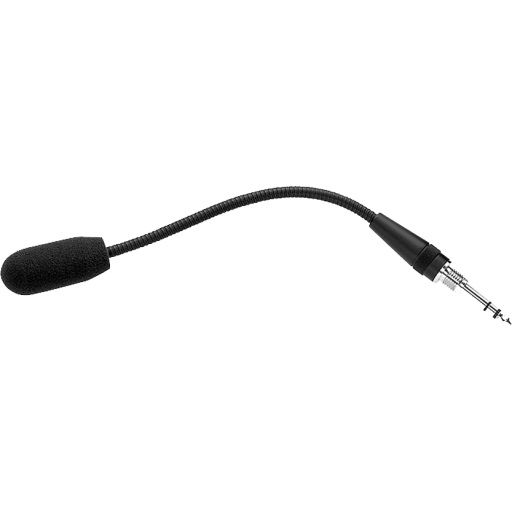

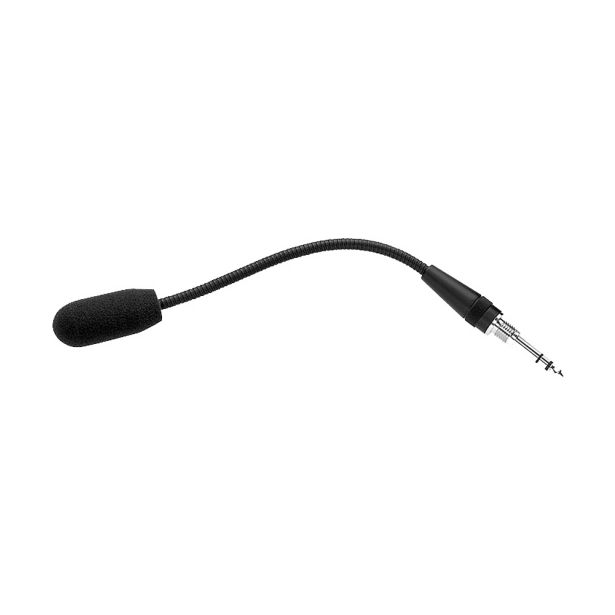

BOSCH MCP-90-8 Gooseneck Microphone, 8-inch

VENDOR: BOSCH Mfg Part#: MCP-90-8 UPC#: 800549444798
1 3
Photo is for illustration purposes only. Actual product may be different.
$288.00
$288.00
Sale Sold out
MSRP: $391.00
Shipping calculated at checkout.
  • Electret microphone element for efficient voice capture
  • 8-inch (20.3 cm) gooseneck design for discreet installation
  • Trade Agreements Act (TAA) compliant
  • Manufactured in the United States
  • Designed for structured AV and voice communication environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance ensures suitability for U.S. government and institutional procurement.
  • Compact 8-inch size and electret element offer optimized performance in limited-space settings.
  • Built in the United States for assured sourcing and regulatory compatibility.

Product Overview

The BOSCH MCP-90-8 is a compact, high-performance gooseneck microphone purpose-built for speech applications in structured AV environments such as lecture halls, courtrooms, and professional conferencing systems. With an 8-inch (20.3 cm) neck and an electret microphone element, it delivers focused voice capture while maintaining a discreet form factor—ideal wherever a low-profile setup is needed. Its streamlined configuration helps reduce ambient noise pickup for clean, intelligible audio reproduction.

Manufactured in the United States and compliant with TAA (Trade Agreements Act), the MCP-90-8 meets procurement standards for government, educational, and institutional sectors. Though the connectivity and signal output details are not provided, the simplicity of design suggests integration with BOSCH’s communication systems or third-party platforms via standard microphone-compatible interfaces.

Robust construction and minimal maintenance requirements also make this model a practical choice for long-term installations. Its electret element implies low power consumption without sacrificing voice fidelity, further supporting use in environments with continuous microphone activity. Specific technical features such as frequency response or polar pattern were not disclosed in the available data.

Specifications

Product Overview
Product Type Gooseneck Microphone
Microphone Element Electret Condenser
Form Factor Fixed Gooseneck
Neck Length 8 inches (20.3 cm)
Application Speech / Voice Capture
Power Requirements Phantom Power 12 to 48 VDC
Mounting Type Flush Mount (via base connector)
Color Black

Physical & Environmental
Weight Approx. 115 g (0.25 lb)
Operating Temperature Range -5°C to +45°C (23°F to 113°F)
Storage Temperature Range -40°C to +70°C (-40°F to 158°F)
Relative Humidity (Operating) 5% to 95% non-condensing
Neck Material Flexible Steel with Plastic Covering
Shock Resistance Built-in internal shock-mount

Audio Specifications
Polar Pattern Cardioid
Frequency Response 100 Hz to 16 kHz
Sensitivity -43 dBV/Pa (7 mV/Pa)
Maximum SPL 125 dB SPL
Impedance 250 ohms
Signal-to-Noise Ratio >58 dB
Equivalent Noise Level 36 dB SPL (A-weighted)
Phantom Power Requirements 12 to 48 VDC (2 mA max)

Cloud Management & Licensing
Cloud Managed No
Included Software Not Applicable
Remote Configuration No

Interfaces
Output Connector Type XLR 3-pin
Signal Output Type Balanced Low Impedance
Connectivity Technology Wired
Connection Interface Standard Microphone Interface

Compliance & Origin
Country of Origin United States
TAA Compliance Yes
Certifications CE, FCC, RoHS
Lead-Free Status RoHS Compliant
Trade Compliance TAA Compliant

Advanced Security Features
Tamper Resistance Yes (for installed applications)
