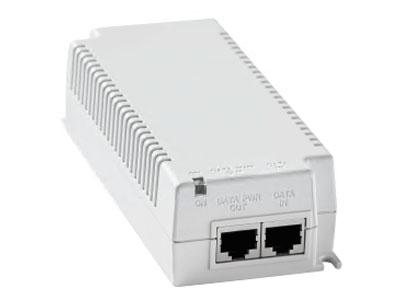

Bosch NPD-6001C-EBT 60W IEEE 802.3bt Outdoor Power Adapter

VENDOR: BOSCH Mfg Part#: NPD-6001C-EBT UPC#: 800549625074
1 2
Photo is for illustration purposes only. Actual product may be different.
$616.00
$616.00
Sale Sold out
Shipping calculated at checkout.
  • 60W power output supporting IEEE 802.3bt standard
  • Single-port PoE injector for outdoor deployment
  • 100–240VAC wide input range for global compatibility
  • TAA compliant for government and institutional use
  • Manufactured in Israel

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-power outdoor PoE applications requiring 60W output
  • TAA compliance ensures suitability for government-regulated procurement
  • Supports international installations with 100–240VAC input compatibility

Product Overview

60W IEEE 802.3BT SINGLE PORT 100-240VAC INPUT OUTDOOR. TAA COMPLIANT

Specifications

Product Overview
Product Type Outdoor Power over Ethernet (PoE) Injector
Model NPD-6001C-EBT
Power Output 60W
PoE Standard IEEE 802.3bt Type 3 (PoE++)
Form Factor Outdoor wall- or pole-mountable unit
Input Voltage 100-240 VAC
Input Frequency 50/60 Hz
Power Consumption (Max) 65W
Operating Mode Midspan Injector
Power Output Per Port Up to 60W

Wireless Features

Compliance & Origin
Country of Origin Israel
TAA Compliant Yes
Certifications UL, cUL, CE, FCC Part 15B Class B, IEC 62368-1
RoHS Compliant Yes
WEEE Compliance Yes
REACH Compliance Yes

Advanced Security Features
Overload Protection Yes
Short Circuit Protection Yes
Over-voltage Protection Yes
Over-temperature Protection Yes

Interfaces
Ethernet Ports 2 (1 Data In, 1 Data & Power Out)
Interface Type RJ-45 (Shielded)
Port Speed 10/100/1000 Mbps
Network Interface Gigabit Ethernet
PoE Output Pin Assignment 4/5(+), 7/8(–) and 3/6(+), 1/2(–) for Type 3

Physical & Environmental
Dimensions (H x W x D) 165 mm x 75 mm x 43.5 mm
Weight 0.55 kg (approx)
Mounting Options Wall or pole mount
Enclosure Type Outdoor-rated, rugged aluminum housing
Operating Temperature -40°C to +50°C
Storage Temperature -40°C to +85°C
Operating Humidity Up to 95% (non-condensing)
Cooling Passive cooling (fanless)
Ingress Protection (IP) Rating IP66
Surge Protection 6kV Ethernet, 6kV AC power
DC Output Connector Integrated into RJ-45 Ethernet port

Cloud Management & Licensing
Cloud Management No
Managed via Web Interface No
Licensing Requirements None
