| Product Type | UHF Wireless Beltpack Transceiver |
| Audio System Type | Portable Audio |
| Communication Channels | 2 |
| Frequency Band | UHF Band A3 |
| Headset Type | 4F Headset Included |
| Form Factor | Beltpack |
| Power Source | Battery Powered |
| Battery Type | AA Alkaline |
| Battery Installed Qty | 6 |
| Typical Battery Life | Up to 12 hours |
| Weight | Approx. 0.9 lbs (without batteries) |
BOSCH TR-80N A3 R4 US UHF Beltpack, 2CH, Band A3, 4F Headset

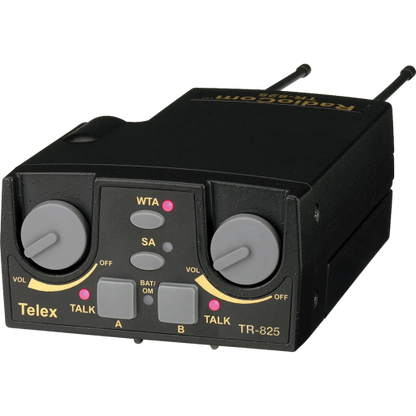

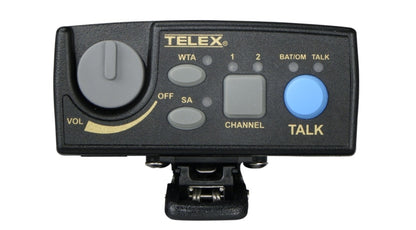

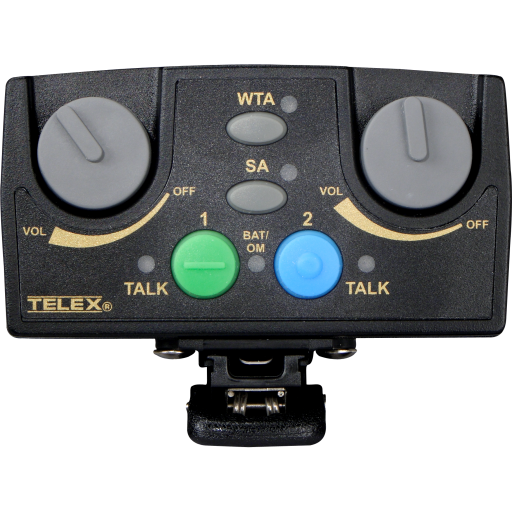

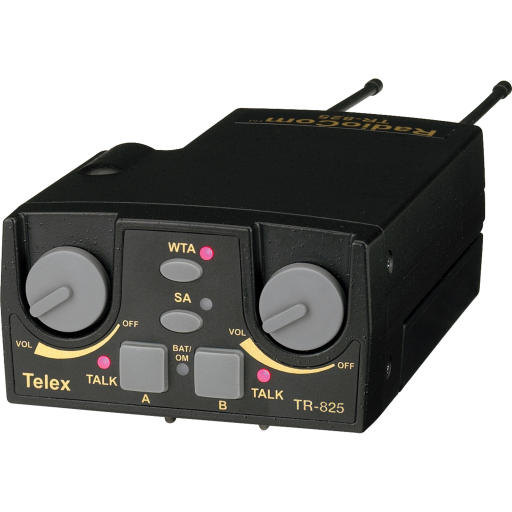

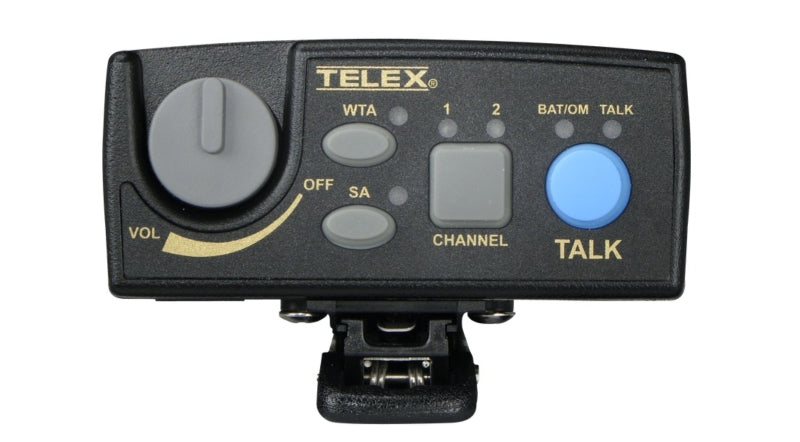

Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,680.00
Regular price
Sale price
$2,680.00
Unit price
per
MSRP: $3,603.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Dual-channel UHF operation on Band A3
- Includes 4F headset for professional audio clarity
- Compact design: 3.75"W x 1.65"D x 5.05"H
- Operates with 6 installed batteries
- TAA compliant for federal procurement
- Manufactured in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Dual-channel UHF support offers flexibility and signal reliability in professional communication environments.
- TAA compliance ensures suitability for government and enterprise procurement processes.
- Compact dimensions and six-battery power make it ideal for portable, extended use in the field.
Product Overview
The BOSCH TR-80N A3 R4 US UHF beltpack is engineered for dual-channel communication over Band A3, equipped with a 4F headset for effective audio performance. Its compact dimensions (3.75 in W × 1.65 in D × 5.05 in H) and six-battery configuration provide mobility and extended operation. Designed and manufactured in the United States, the unit is also TAA compliant, making it ideal for both commercial and federal applications where reliable, portable audio communication is essential.
Specifications
Product Overview
Wireless Features
| Wireless Technology | UHF |
| Operating Frequency Range | 482 – 502 MHz (Band A3) |
| Channels Supported | 2 Independent Audio Channels |
| Modulation Type | Frequency Modulation (FM) |
| Antenna Type | Internal or Optional External Antenna |
| RF Output Power | Up to 50 mW |
| Channel Spacing | 25 kHz |
| Audio Frequency Response | 150 Hz – 7 kHz |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliance | Yes |
| FCC Certification | Part 74 Compliant |
| RoHS Compliance | Yes |
| WEEE Compliance | Yes |
Advanced Security Features
| Encryption Support | No |
| Secure Channel Switching | Manual Channel Selection for Interference Mitigation |
Interfaces
| Headphone Output | Yes |
| Microphone Input | Yes (via headset connector) |
| Control Interface | Front Panel Controls |
| Connector Type | 4-pin female XLR |
Physical & Environmental
| Width | 3.75 Inch |
| Depth | 1.65 Inch |
| Height | 5.05 Inch |
| Housing Material | High-Impact Polycarbonate |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 0% to 95% Non-Condensing |
Cloud Management & Licensing
| Remote Management Capability | No |
| Licensing Requirements | May require FCC license depending on application |
