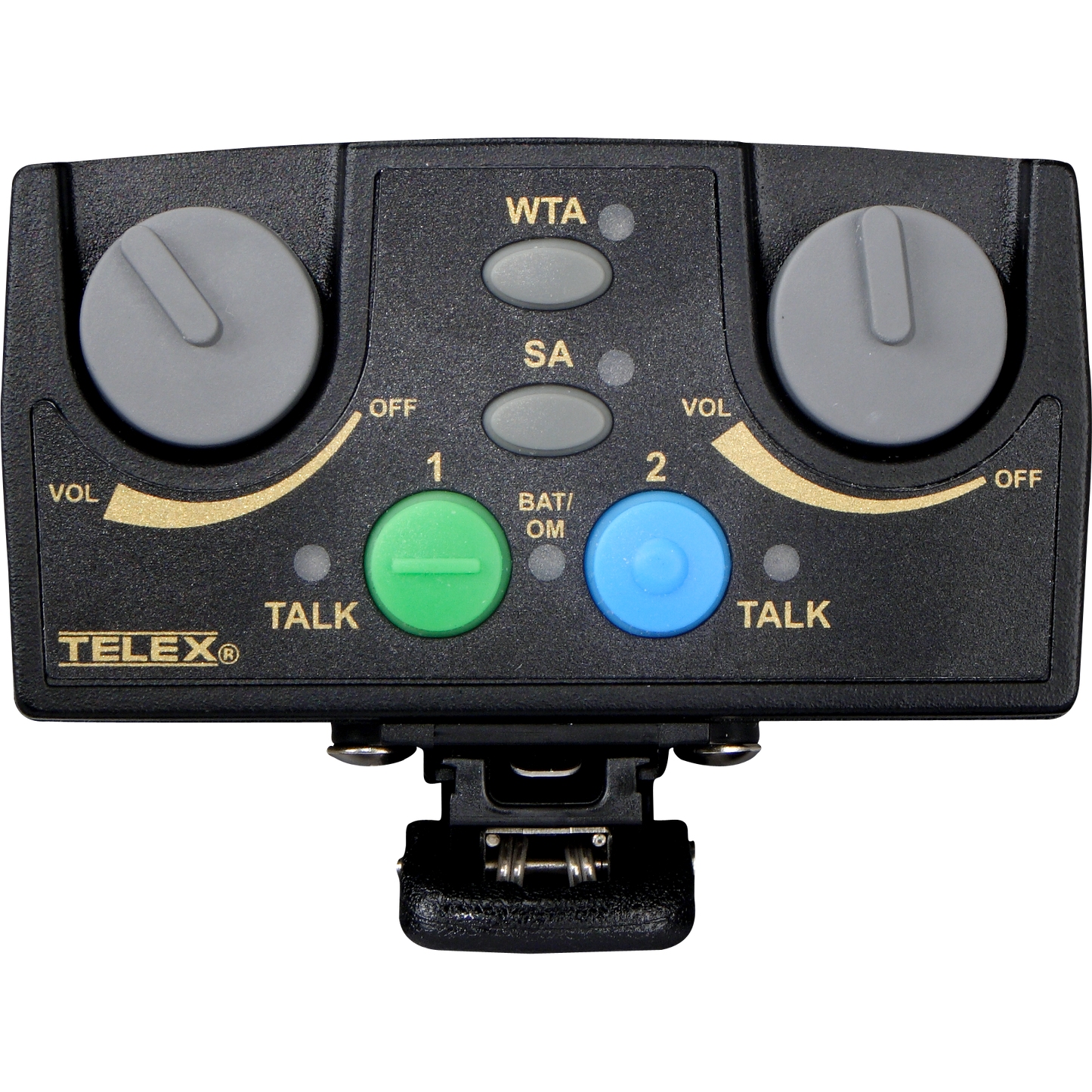

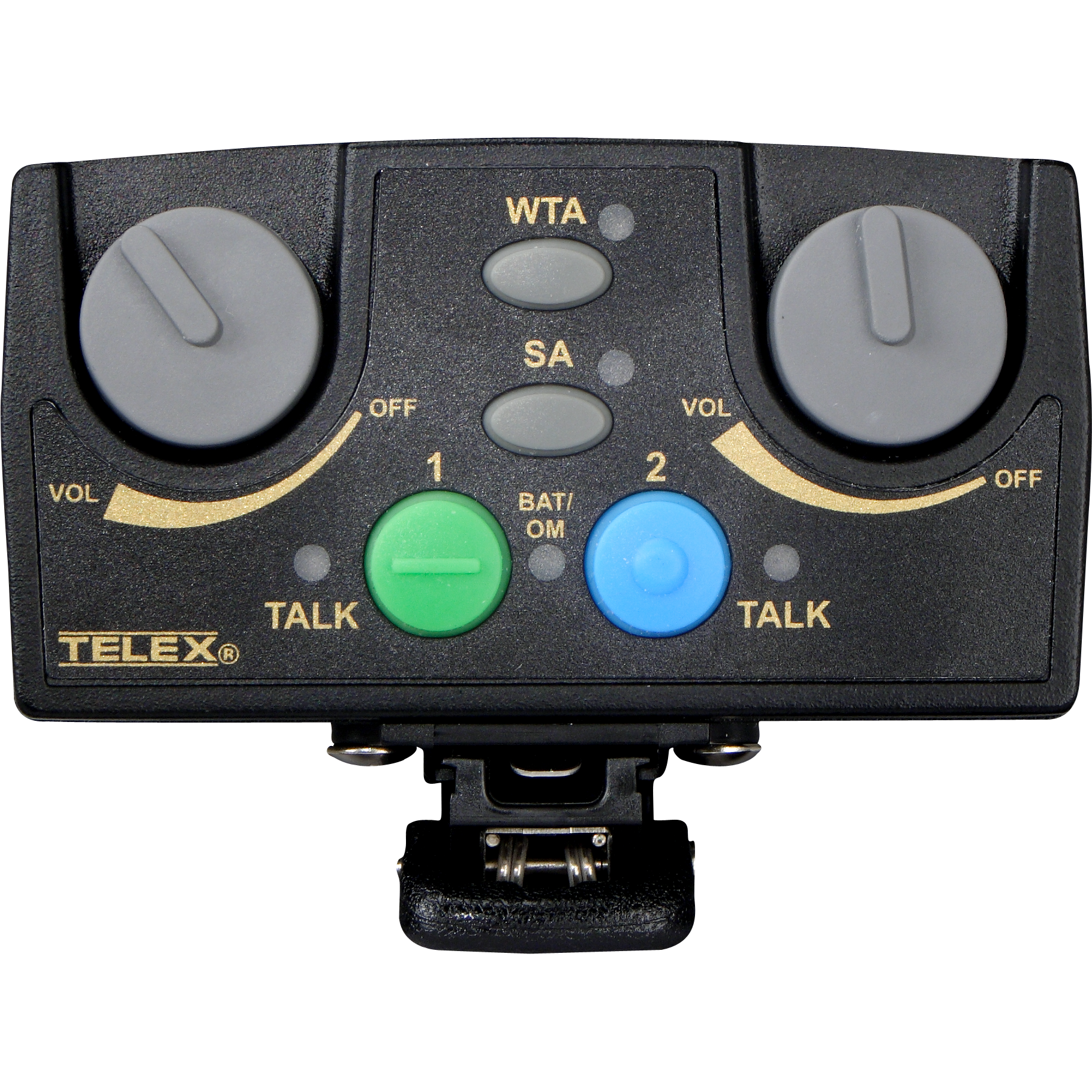

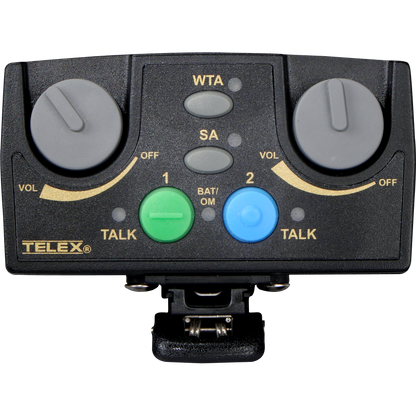

BOSCH TR-80N B3 R4 US UHF Beltpack, 2CH, Band B3, 4F Headset

VENDOR: BOSCH Mfg Part#: TR-80N B3 R4 US UPC#: 800549890205
1 4
Photo is for illustration purposes only. Actual product may be different.
$2,674.00
$2,674.00
Sale Sold out
MSRP: $3,603.00
Shipping calculated at checkout.
  • 2-channel UHF audio communication system
  • Operates on Band B3 for specialized frequency use
  • Includes 4F headset for improved audio clarity
  • Supports 6 installed batteries for extended use
  • Compact dimensions: 3.75" W x 1.65" D x 5.05" H
  • TAA-compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and federally funded projects due to TAA compliance and US manufacturing origin
  • Extended field operation supported by ability to install 6 batteries, reducing downtime during usage
  • Compact and wearable design enhances mobility for users in live events or broadcast production environments

Product Overview

The BOSCH TR-80N B3 R4 US UHF Beltpack is a 2-channel communication device operating in Band B3, ideally suited for professional portable audio use. With a compact size (3.75" x 1.65" x 5.05") and ability to support 6 installed batteries, it ensures mobility and long operation. The included 4F headset boosts clarity in noisy conditions. TAA-compliant and made in the United States, it is suitable for government or enterprise-level implementations requiring reliable communication in the field.

Specifications

Product Overview
Product Type UHF Wireless Beltpack Transmitter
Channels 2
Frequency Band UHF Band B3
Form Factor Portable, Beltpack
Power Source Battery
Battery Type AA Alkaline (x6)
Battery Installed Quantity 6
Headset Type 4F Headset (included)
Typical Battery Life Up to 10 hours

Wireless Features
RF Range 470 to 530 MHz (Band B3)
Modulation Type FM (Frequency Modulation)
RF Output Power 50 mW
Transmission Type UHF Wireless
Channel Spacing 250 kHz
Tuning Steps 25 kHz
Number of Selectable Frequencies Up to 2400

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC Part 74, IC, CE
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
Encryption No encryption supported (analog system)
Tamper Detection No
Authentication Methods Not applicable for analog RF

Interfaces
Headset Connector 4-pin Female XLR
Antenna Connector Fixed Antenna
Control Interface 2-Channel Selector Switch, Gain Control, On/Off Power Switch

Physical & Environmental
Width 3.75 in
Height 5.05 in
Depth 1.65 in
Weight Approximately 0.9 lb (without batteries)
Operating Temperature -4°F to 131°F (-20°C to 55°C)
Storage Temperature -40°F to 185°F (-40°C to 85°C)
Operating Humidity 0 to 95% RH (non-condensing)
Housing Material Impact-resistant Polycarbonate
Color Black

Cloud Management & Licensing
Remote Management No
Licensing Requirements Streamlined licensing for TV-band wireless under FCC Part 74
