| Product Type | UHF Beltpack Transceiver |
| Form Factor | Beltpack |
| Number of Channels | 2 |
| Frequency Band | Band FD (482–506 MHz) |
| Included Accessories | 4F-compatible Headset |
| Battery Type | AA alkaline or NiMH rechargeable |
| Battery Quantity | 6 |
| Typical Battery Life | 10–12 hours |
| Power Supply Type | Battery Operated |
| Weight | Approx. 13.5 oz (0.38 kg) without headset |

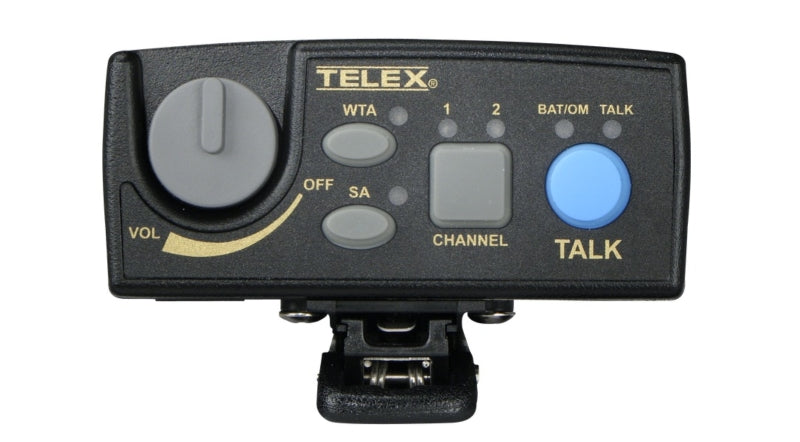

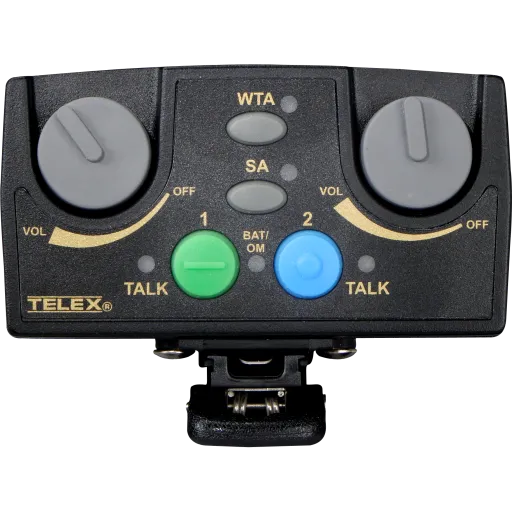

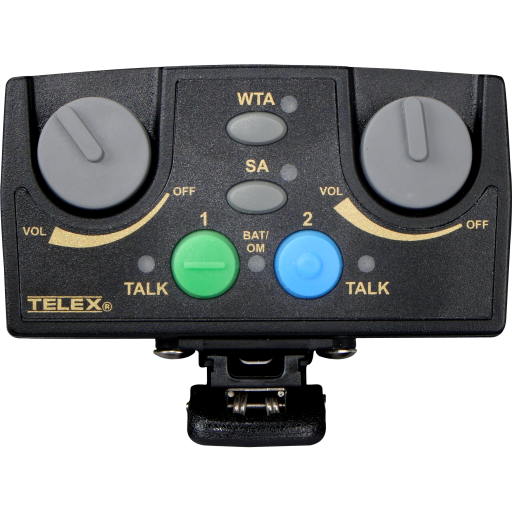

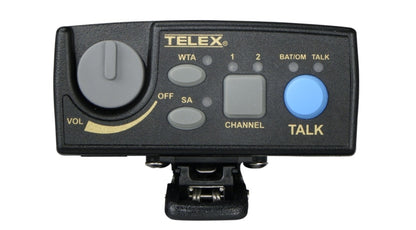

BOSCH TR-80N-FDR UHF Beltpack 2CH with 4F Headset, Band FD
Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,674.00
Regular price
Sale price
$2,674.00
Unit price
per
MSRP: $3,603.00
Shipping calculated at checkout.
Couldn't load pickup availability
- - 2-channel UHF operation for clear audio communication
- - Compatible with 4F headset for secure and comfortable use
- - Operates on 6 installed batteries for extended runtime
- - Compact form factor: 3.75" W x 1.65" D x 5.05" H
- - TAA compliant and manufactured in the United States
- - Designed for portable audio system applications
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- - Ideal for professional applications requiring portable, secure 2-channel UHF communication
- - TAA compliance and US origin make it suitable for government and commercial procurement
- - Six-battery configuration supports long-duration use in the field or during extended events
Product Overview
The BOSCH TR-80N-FDR is a high-performance UHF beltpack designed for portable audio communication, supporting 2-channel operation in Band FD. It includes a 4F-compatible headset and operates on 6 batteries for extended usage. Compact and lightweight, it measures 3.75" W x 1.65" D x 5.05" H. Made in the USA and TAA compliant, this unit is built for reliability in professional environments such as broadcasting or security services.
Specifications
Product Overview
Wireless Features
| Modulation Method | FM |
| RF Output Power | 50 mW typical |
| Receive Sensitivity | Less than 1 μV for 12 dB SINAD |
| Squelch Control | Tone-coded squelch |
| Frequency Selection | Factory tuned to specific frequencies in Band FD |
| Channel Spacing | 25 kHz |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| FCC Certification | Part 74 Subpart H |
| RoHS Compliant | Yes |
Advanced Security Features
| Secure Audio Transmission | No (standard FM analog transmission) |
Interfaces
| Headset Connector | 4-pin Female XLR |
| Antenna Type | Fixed external antenna |
| Intercom Channel Selector | Two-channel toggle switch |
| Volume Controls | Dual rotary level controls |
| Mic Mute Switch | Yes - push-to-talk or latch mode |
| Function Indicators | LED indicators for channel and power |
Physical & Environmental
| Width | 3.75 in (95.25 mm) |
| Height | 5.05 in (128.27 mm) |
| Depth | 1.65 in (41.91 mm) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to +70°C (-4°F to 158°F) |
| Humidity (Non-Condensing) | Up to 92% |
| Enclosure Material | Rugged ABS Plastic |
