Products BOSCH TR-80N-FDR5 UHF Beltp...

BOSCH TR-80N-FDR5 UHF Beltpack, 2CH, Band FD with 5F Headset

VENDOR: BOSCH Mfg Part#: TR-80N-FDR5 UPC#: 800549933292
1 4

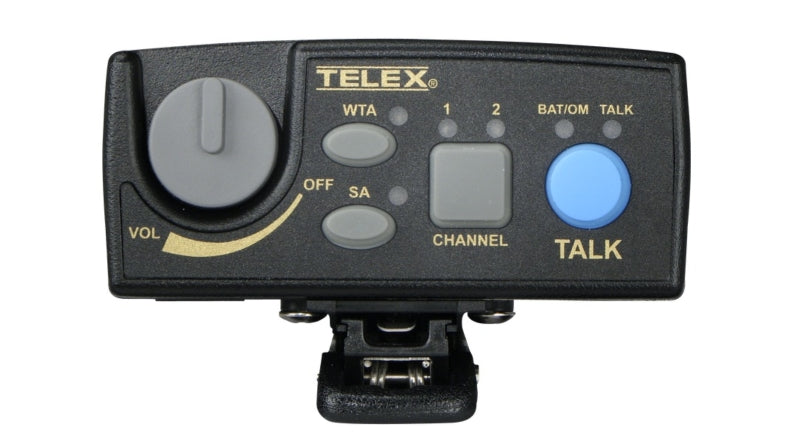

Photo is for illustration purposes only. Actual product may be different.
$2,671.00
$2,671.00
Sale Sold out
MSRP: $3,599.00
Shipping calculated at checkout.
  • - Two-channel UHF communication supported
  • - Operates in Band FD frequency range
  • - Includes 5F headset for hands-free use
  • - Compact dimensions: 3.75" W x 1.65" D x 5.05" H
  • - Powered by six installed batteries
  • - TAA compliant and made in the USA

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for professional-grade communications in compact form, maximizing user mobility and ease of integration.
  • - TAA compliance and U.S. manufacturing make it ideal for government or enterprise procurement teams with strict sourcing criteria.
  • - Includes a 5F headset and Band FD compatibility, ensuring ready-to-use and broad interoperability with existing systems.

Product Overview

The BOSCH TR-80N-FDR5 is a professional-grade UHF beltpack receiver designed for two-channel communication, featuring Band FD support and an included 5F headset. Its compact design—measuring 3.75" x 1.65" x 5.05"—makes it ideal for mobile use in broadcast or industrial environments. Powered by six batteries, it's built for extended runtime with minimal downtime. Proudly manufactured in the USA and TAA compliant, it's well-suited for government and enterprise applications.

Specifications

Product Overview
Product Type UHF Beltpack Receiver
Channels Supported 2
Band FD
Headset Included Yes (5F Headset)
Power Source Battery
Battery Type AA
Number of Batteries Required 6
Battery Life Up to 10 hours (typical, depending on usage)
Form Factor Beltpack
Mounting Options Belt Clip

Wireless Features
Wireless Frequency Band FD Band (482–502 MHz)
RF Technology UHF Analog
Channel Spacing 25 kHz
Modulation Type FM
Operating Range Up to 1,200 ft (line of sight)
Number of Selectable Frequencies 36 per channel

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
FCC Certification Part 74
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
Encryption No (Analog System)

Interfaces
Audio Output Connector Headset Jack (standard 5-pin XLR)
Antenna Connector Fixed Antenna
Channel Selection Manual or Preset
Audio Channels 2-Way Communication

Physical & Environmental
Width 3.75 in
Height 5.05 in
Depth 1.65 in
Weight Approximately 0.95 lb (without batteries)
Operating Temperature -4 °F to 131 °F (-20 °C to 55 °C)
Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)
Operating Humidity 0% to 95% RH, non-condensing
Enclosure Material Durable ABS plastic

Cloud Management & Licensing
Remote Management Support No
