| Product Type | Dual-Channel UHF Wireless Beltpack System |
| Model Number | TR-825 H3 5 US |
| Included Accessories | 5M Headset |
| Band | UHF Band H3 (611–636 MHz) |
| Channels Supported | 2 |
| Form Factor | Beltpack Transmitter |
| Power Source | Battery Powered |
| Battery Type | AA Alkaline |
| Number of Batteries Required | 6 |
| Typical Battery Life | Up to 8–10 hours |

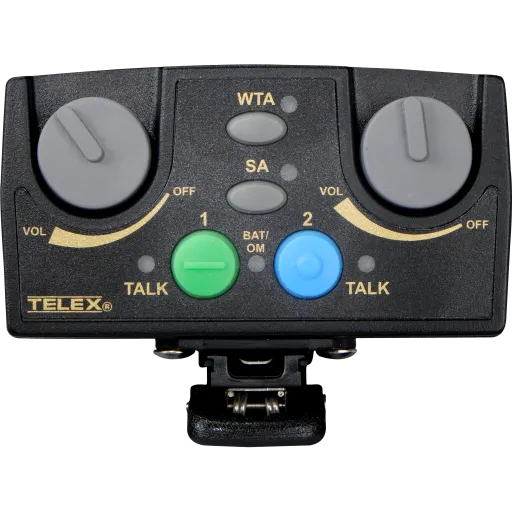

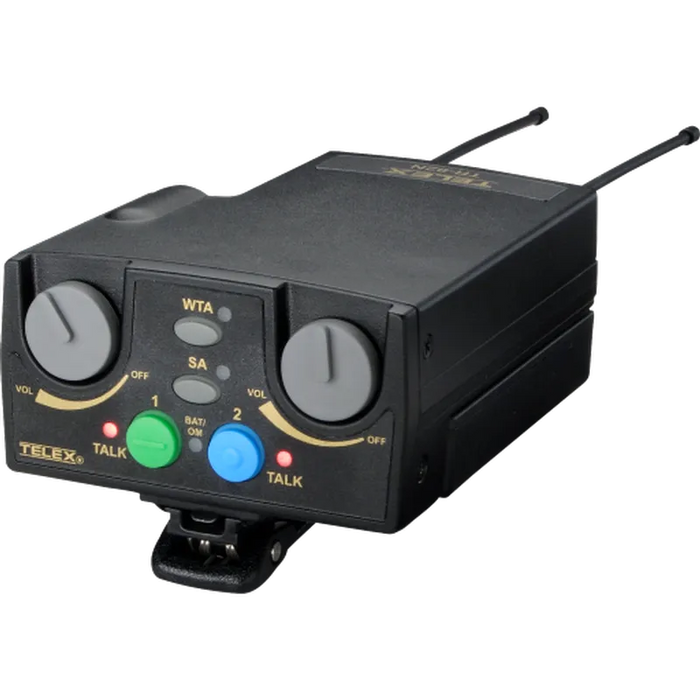

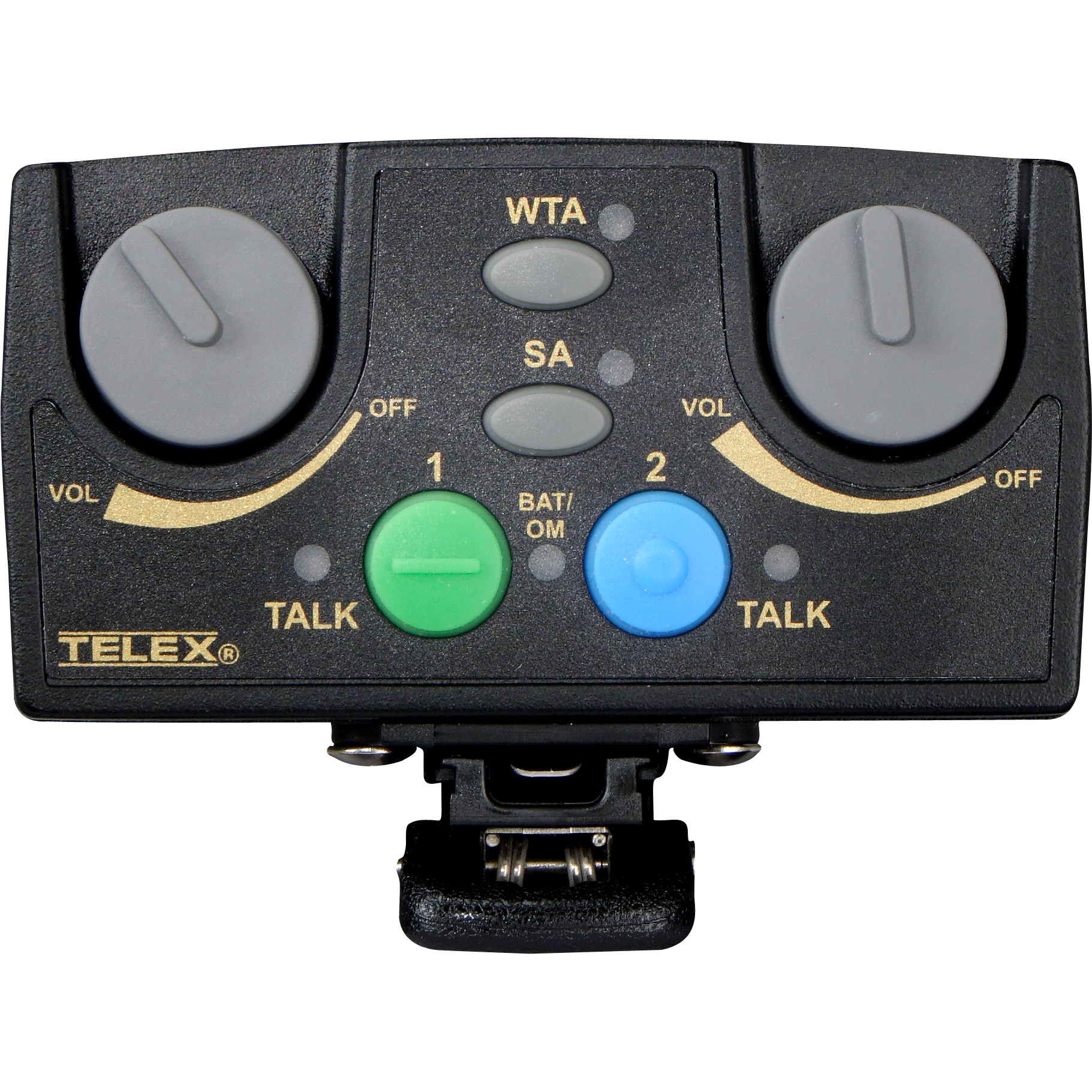

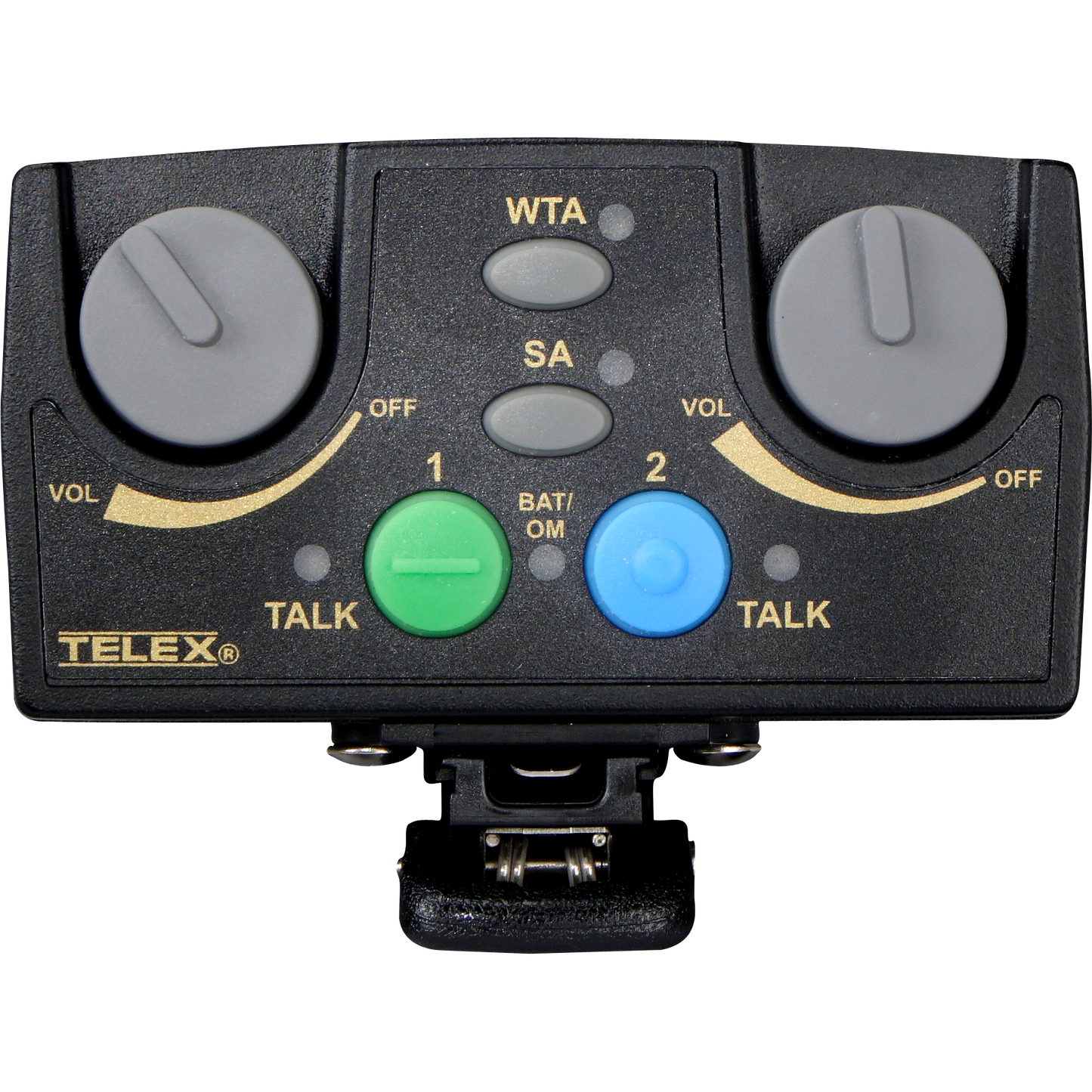

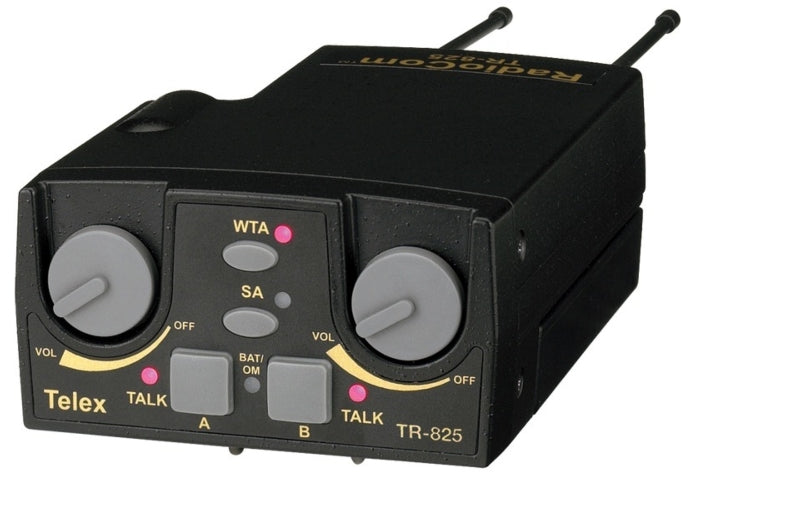

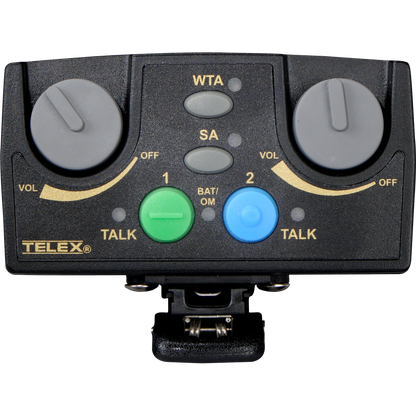

BOSCH UHF Beltpack 2CH Band H3 with 5M Headset
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,513.00
Regular price
Sale price
$3,513.00
Unit price
per
MSRP: $4,737.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Dual-channel UHF audio system
- Operates in Band H3 frequency range
- Compact dimensions: 3.75" W x 2.02" D x 5.35" H
- Powered by 6 batteries for extended usage
- Includes 5M headset for hands-free operation
- Manufactured in the United States; TAA compliant
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Dual-channel UHF operation provides robust and interference-resistant communication.
- TAA compliance makes this unit eligible for federal or government procurement contracts.
- Compact and portable with integrated 5M headset for maximum usability in dynamic environments.
Product Overview
The BOSCH UHF Beltpack TR-825 H3 5 US is a dual-channel, portable audio solution with integrated 5M headset designed for professional live communication. Its Band H3 UHF operation ensures clear transmission, while its compact size and six-battery power design support mobility and extended runtime. Manufactured in the United States and TAA compliant, it meets the standards required for government or institutional use.
Specifications
Product Overview
Wireless Features
| Frequency Range | 611 MHz – 636 MHz (Band H3) |
| Wireless Technology | UHF |
| Antenna Type | Internal or attached antenna |
| Channel Selection | Manual or auto-select |
| Interference Protection | Tone squelch and DCS |
| Compatible Receivers | TR-800 or similar Bosch UHF systems |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| FCC Certification | Part 74 compliant |
| RoHS Compliance | Yes |
| WEEE Compliance | Yes |
Advanced Security Features
| Encryption Technology | Not supported |
| Secure Channel Switching | Manual secured frequency coordination |
Interfaces
| Audio Input | TA4F connector (headset input) |
| Audio Channels | 2 independent channels |
| Headset Interface | 5-pin mini XLR |
| Modulation Type | FM (Frequency Modulation) |
| RF Output Power | 50 mW |
| Transmission Range | Up to 100 meters (line of sight) |
Physical & Environmental
| Width | 3.75 inches |
| Depth | 2.02 inches |
| Height | 5.35 inches |
| Weight | Approx. 0.9 lb (without batteries) |
| Mounting Type | Belt Clip |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity (non-condensing) | 0% – 95% |
Cloud Management & Licensing
| Remote Management | |
| Software Licensing |
