BRIGHTSIGN SIX-PIN Phoenix Connector for Series Three Players

VENDOR: BRIGHTSIGN Mfg Part#: GPIO-TB-6
1 4

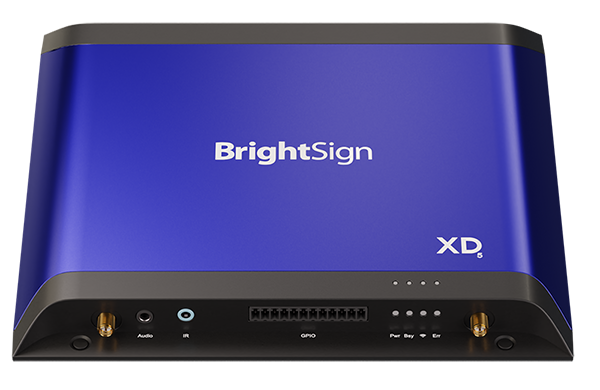

Photo is for illustration purposes only. Actual product may be different.
$4.00
$4.00
Sale Sold out
MSRP: $5.00
Shipping calculated at checkout.
  • - Six-pin Phoenix connector for GPIO interface
  • - Compatible with BRIGHTSIGN Series Three HD, XD, and XT players
  • - Designed for digital signage and AV integration
  • - TAA compliant for government and enterprise installations
  • - Country of origin: Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Specifically designed to integrate seamlessly with BRIGHTSIGN Series Three players for enhanced GPIO functionality
  • - TAA compliance ensures suitability for government and enterprise AV projects
  • - Compact connector form factor supports streamlined, space-saving installations

Product Overview

Six-pin Phoenix connector for use with Series Three HD, XD, and XT player GPIO interface

Specifications

Product Overview
Product Type Six-pin Phoenix Connector
Compatible Devices BrightSign Series 3 HD, XD, and XT players
Connector Type Phoenix-style terminal block
Number of Pins 6
Mounting Type Pluggable terminal block
Form Factor Modular terminal connector
Application GPIO interface connection
Weight 10 g
Power Requirements Passive (no power required)

Physical & Environmental
Dimensions (W x H x D) 24 mm x 11 mm x 13 mm
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Operating Humidity 10% to 90% (non-condensing)
Flammability Rating UL94 V-0
Contact Material Brass, tin-plated
Housing Material Thermoplastic (UL 94 V-0)
Color Green

Cloud Management & Licensing
Cloud Management Not Applicable
License Requirement Not Applicable

Interfaces
Interface Type GPIO contact interface
Number of Interface Contacts 6
Connector Gender Female (mates with male Phoenix pins on player)
Wire Connection Type Screw terminal
Supported Wire Gauge 16–28 AWG

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
CE Certified Yes
REACH Compliance Yes
UL Recognized Yes

Advanced Security Features
Security Features None (passive hardware accessory)
