BRIGHTSIGN XT1145 Expanded I/O Ultra-HD Media Player

VENDOR: BRIGHTSIGN Mfg Part#: XT1145 UPC#: 854529008258
1 4

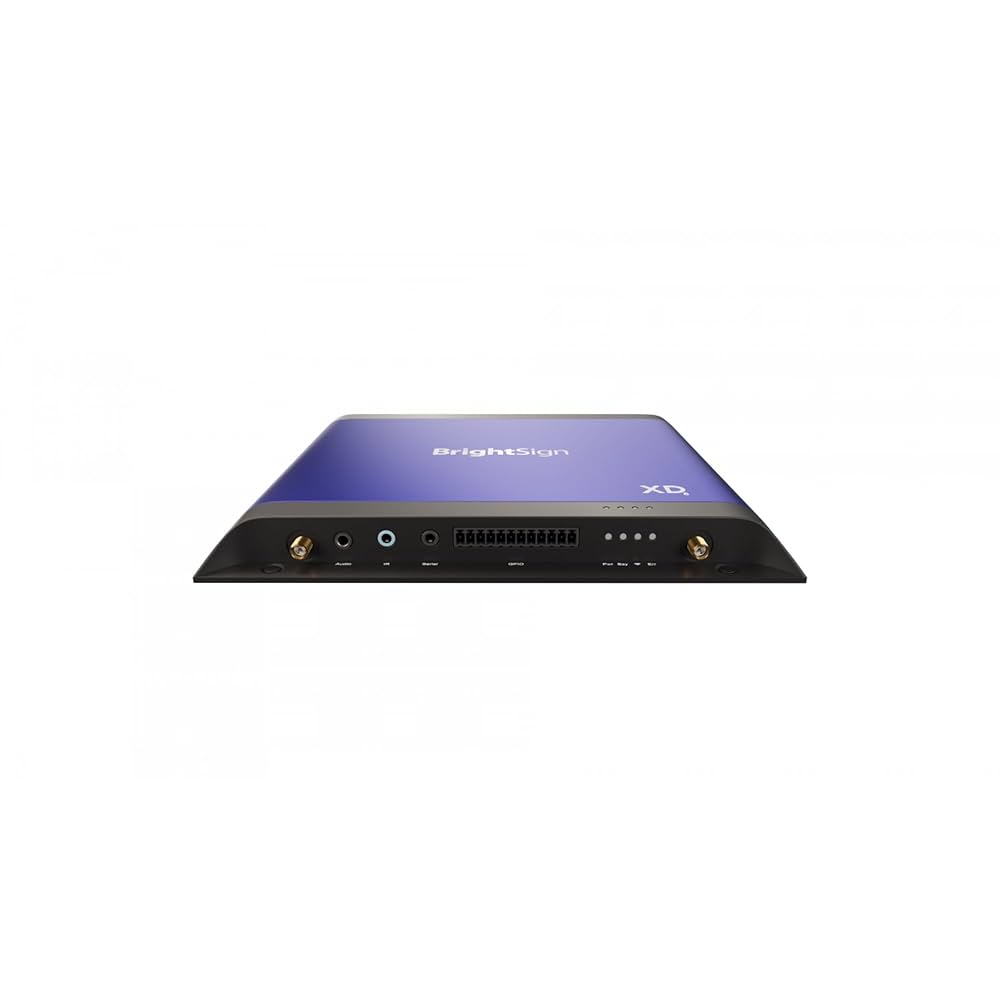

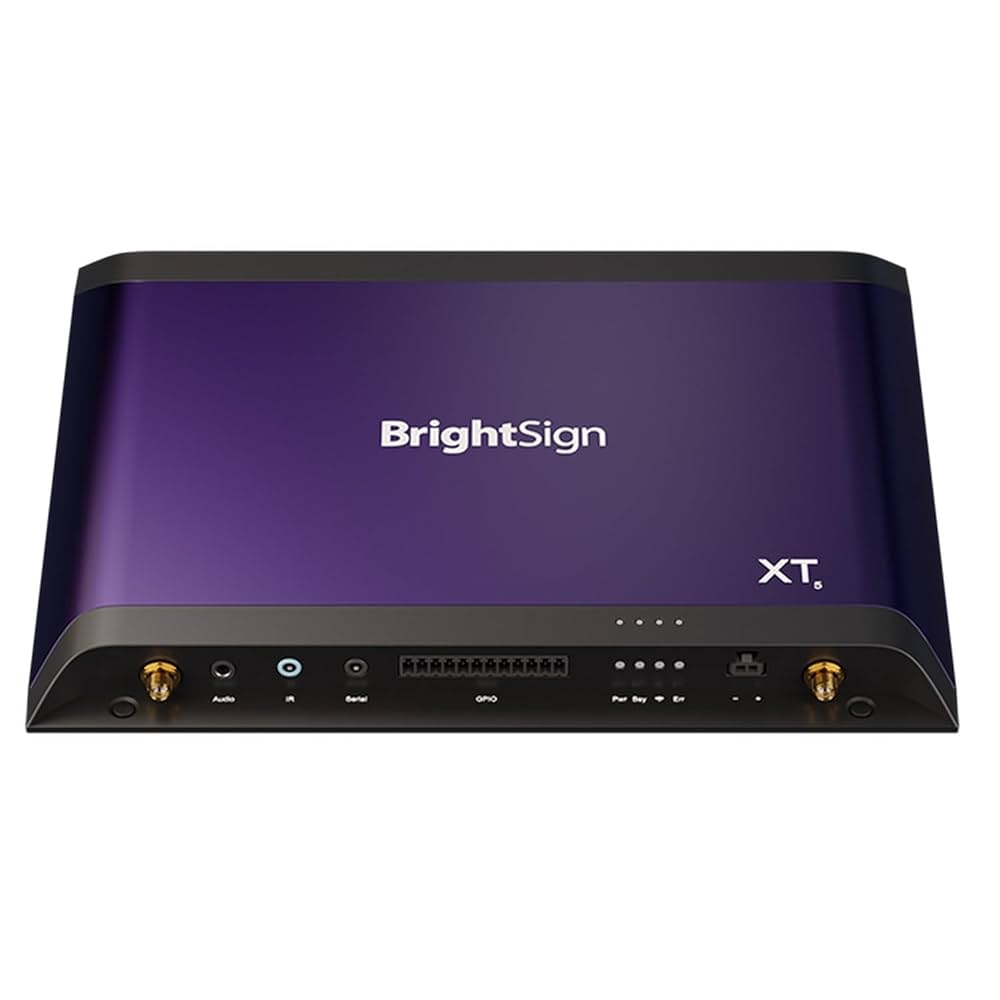

Photo is for illustration purposes only. Actual product may be different.
$1,044.00
$1,044.00
Sale Sold out
MSRP: $1,327.00
Shipping calculated at checkout.
  • Supports ultra-high video resolutions up to 8K60p and 3D motion graphics
  • Expanded I/O package: HDMI input, dual USB, Gigabit Ethernet with PoE+, GPIO, IR, digital audio, serial
  • Compact dimensions: 238.62 mm (W) x 185.9 mm (D) x 19.19 mm (H)
  • 12V / 3A voltage input for energy-efficient operation
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers premium video from 1080p to 8K60p for stunning display quality in digital signage environments
  • Comprehensive I/O options allow seamless integration with a wide range of control systems and AV infrastructure
  • Ultra-thin, compact design with PoE+ support simplifies deployment and reduces cable clutter in tight installations

Product Overview

POWERFUL ULTRA-THIN PLAYER DELIVERING THE HIGHEST QUALITY VIDEO FROM 1080P TO 8K60P & PLAYING 3D MOTION GRAPHICS AT HIGH FRAME RATES. EXPANDED I/O PACKAGE WITH GB ETHERNET SUPPORTING POE+, GPIO, IR DIGITAL AUDIO, SERIAL, DUAL USB AND HDMI INPUT PORTS

Specifications

Product Overview
Product Type Digital Signage Media Player
Model XT1145
Form Factor Compact Ultra-Thin
Video Output Resolutions Up to 8K60p
Graphics Capability Advanced 3D motion graphics with high frame rates
RAM 4GB
Storage Type microSD, M.2 SSD (SATA/NVMe)
Weight 907 g
Power Requirements 12V / 3A DC
Power over Ethernet (PoE+) Supported

Wireless Features
Wi-Fi Optional with USB Wi-Fi module
Bluetooth Optional with USB Bluetooth module
Wireless Antennas Optional external via USB modules

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
RoHS Compliance Yes
FCC Certification Part 15 Class B
CE Certification Yes
UL Certification Yes

Advanced Security Features
Secure Boot Supported
File System Security Encrypted file system support
Content Encryption AES-128/256
Network Security HTTPS, 802.1x, firewalled updates

Interfaces
Ethernet Port 1 x Gigabit Ethernet (RJ-45)
USB Ports 2 x USB Type-A
HDMI Output 1 x HDMI 2.0a
HDMI Input 1 x HDMI 2.0
Serial Port 1 x RS-232
GPIO 8-pin bi-directional GPIO
Audio Output Digital Audio via HDMI
IR Control 1 x 3.5mm IR In/Out
Storage Expansion 1 x microSD slot, 1 x M.2 (SATA or NVMe)

Physical & Environmental
Width 238.62 mm
Height 19.19 mm
Depth 185.9 mm
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 70°C
Operating Humidity 10% to 85% non-condensing
Mounting Options Wall or shelf mountable

Cloud Management & Licensing
Cloud Management Platform BrightSign BSN.Cloud
Included Licensing No subscription required for core features
Remote Monitoring Supported via BSN.Cloud Control Cloud
Content Scheduling Supported via BrightAuthor:connected or BSN.Cloud
