Products Memory, Storage and Components BUFFALO TeraStation 51220RH...

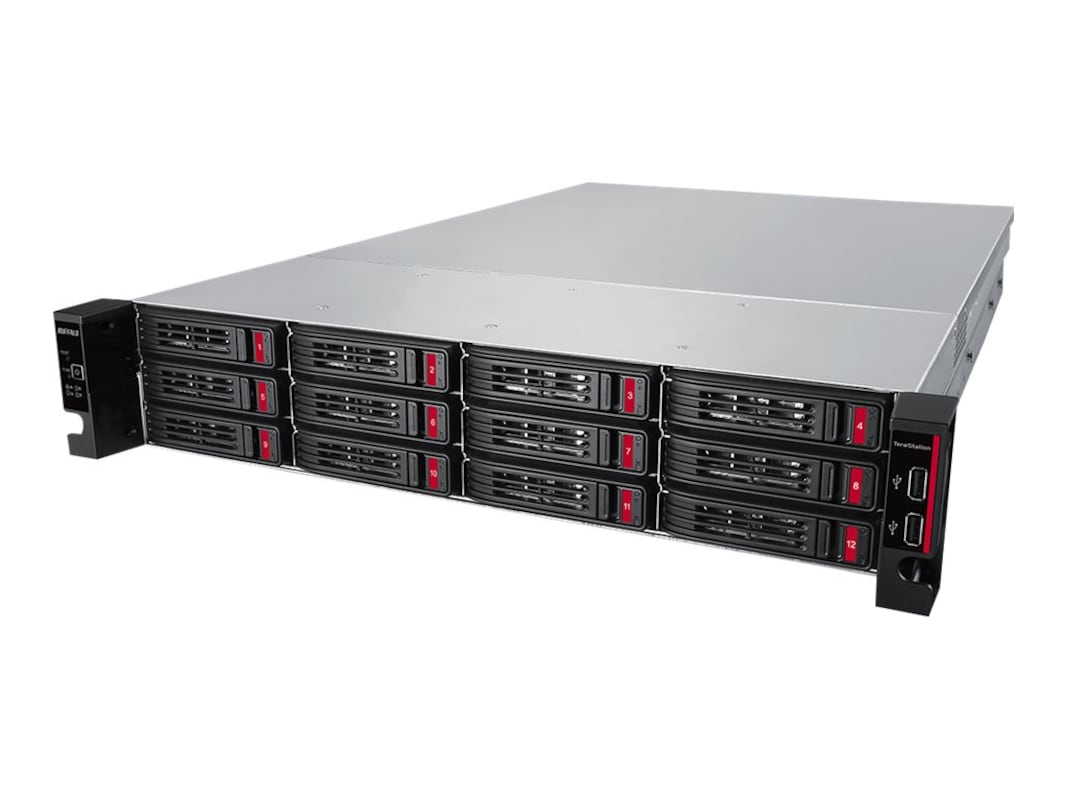

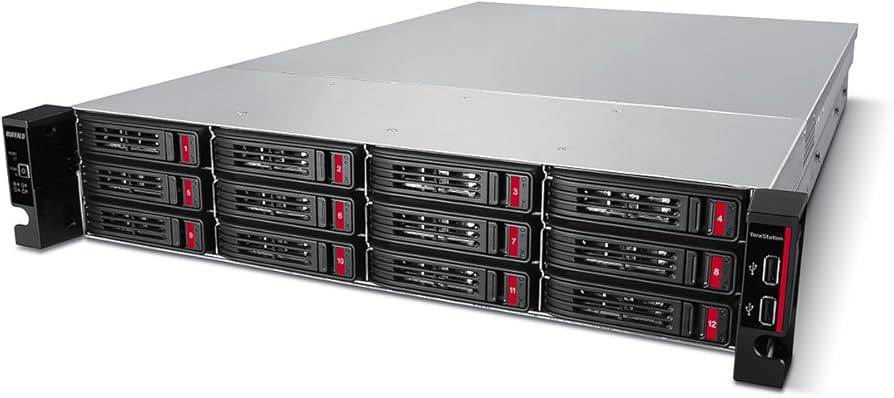

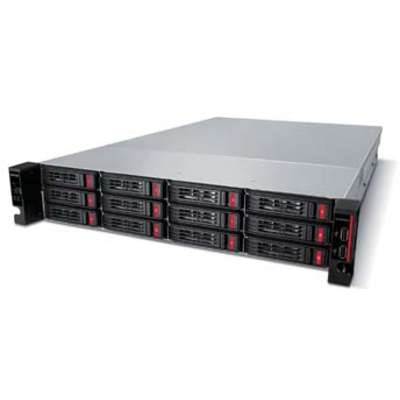

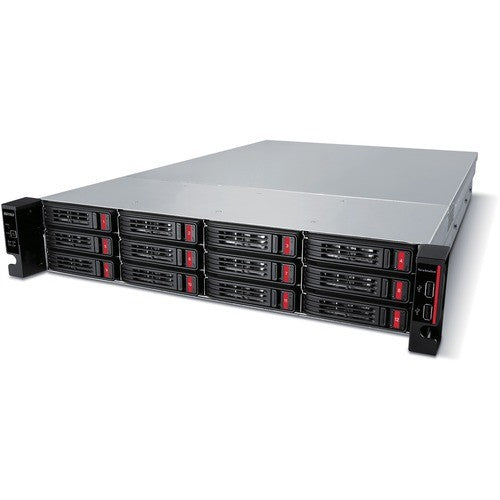

BUFFALO TeraStation 51220RH 32TB 12-Bay NAS Rackmount

VENDOR: BUFFALO TECHNOLOGY Mfg Part#: TS51220RH3204 UPC#: 747464135427
1 4
Photo is for illustration purposes only. Actual product may be different.
$5,742.00
$5,742.00
Sale Sold out
MSRP: $7,268.00
Shipping calculated at checkout.
  • - 32TB of total storage pre-installed using 4 x 8TB enterprise hard drives
  • - 12 total drive bays with 8 open bays for future expansion
  • - 2U rackmount form factor with rail kit included
  • - Dual 10GbE network interfaces for high-speed data transfer
  • - RAID and iSCSI support for data protection and virtualization
  • - TAA-compliant and manufactured in Japan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Offers significant scalability with 8 vacant drive bays, allowing custom expansion without replacing existing hardware
  • - Enterprise-grade reliability with RAID support and Japanese manufacturing origin ensures robust performance and longevity
  • - TAA compliance makes it suitable for use in government and regulated industries

Product Overview

The BUFFALO TeraStation 51220RH is a high-performance 2U rackmount NAS designed for enterprise-grade storage. With 32TB capacity via 4x8TB enterprise drives and 8 open bays, it supports flexible expansion and advanced RAID/iSCSI configurations. Dual 10GbE ports support high-speed throughput ideal for large file workflows. The unit is TAA-compliant and made in Japan, and includes a rail kit for rack deployment.

Specifications

Product Overview
Product Type Network Attached Storage (NAS)
Form Factor 2U Rackmount
Pre-installed Storage Capacity 32 TB
Drive Bays 12
Installed Drives 4 x 8TB Enterprise HDD
Expandable Drive Bays 8
Drive Form Factor Supported 3.5-inch
Supported RAID Levels RAID 0, 1, 5, 6, 10, 51, 60, JBOD
Power Supply Type Internal
Redundant Power Supply Yes
Power Requirements AC 100-240V, 50/60Hz
Power Consumption (Max) Approx. 150W
Cooling Type Active (fans)

Wireless Features
Wi-Fi Support

Compliance & Origin
TAA Compliant Yes
Country of Origin Japan
Certifications VCCI, FCC Class A, CE, RoHS

Advanced Security Features
User Authentication Active Directory Integration, Local User Management
Access Control User/Group Permissions, IP Address Filtering
Data Encryption AES 256-bit Encryption for Volume
Security Protocols HTTPS, SFTP, SSH
Physical Security Kensington Security Slot

Interfaces
LAN Ports 2 x 10GbE (SFP+)
Additional LAN Ports 2 x 1GbE (RJ-45)
USB Ports 2 x USB 3.0, 2 x USB 2.0
Data Transfer Rate Up to 20 Gbps aggregate (with 10GbE)
Supported Network Protocols SMB, AFP, FTP, SFTP, NFS, iSCSI, SNMP, HTTP/HTTPS
Serial Console Port Yes

Physical & Environmental
Width 17.6 inches (448 mm)
Depth 27.5 inches (700 mm)
Height 3.5 inches (88 mm)
Weight Approx. 35.7 lbs (16.2 kg) without drives
Operating Temperature 5°C to 35°C (41°F to 95°F)
Non-Operating Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 20% to 80% (non-condensing)
Non-Operating Humidity 10% to 90% (non-condensing)
Cooling Fans 2 x Redundant Hot-swappable Fans

Cloud Management & Licensing
Management Interface Buffalo NAS Navigator, Web-Based GUI with Advanced Admin
Remote Access Support Yes (Via WebAccess and VPN)
Bundled Software NovaBACKUP (up to 10 licenses)
Cloud Backup Integration Supports Amazon S3, Dropbox, Microsoft Azure
