Products Memory, Storage and Components BUFFALO TeraStation 5420RN ...

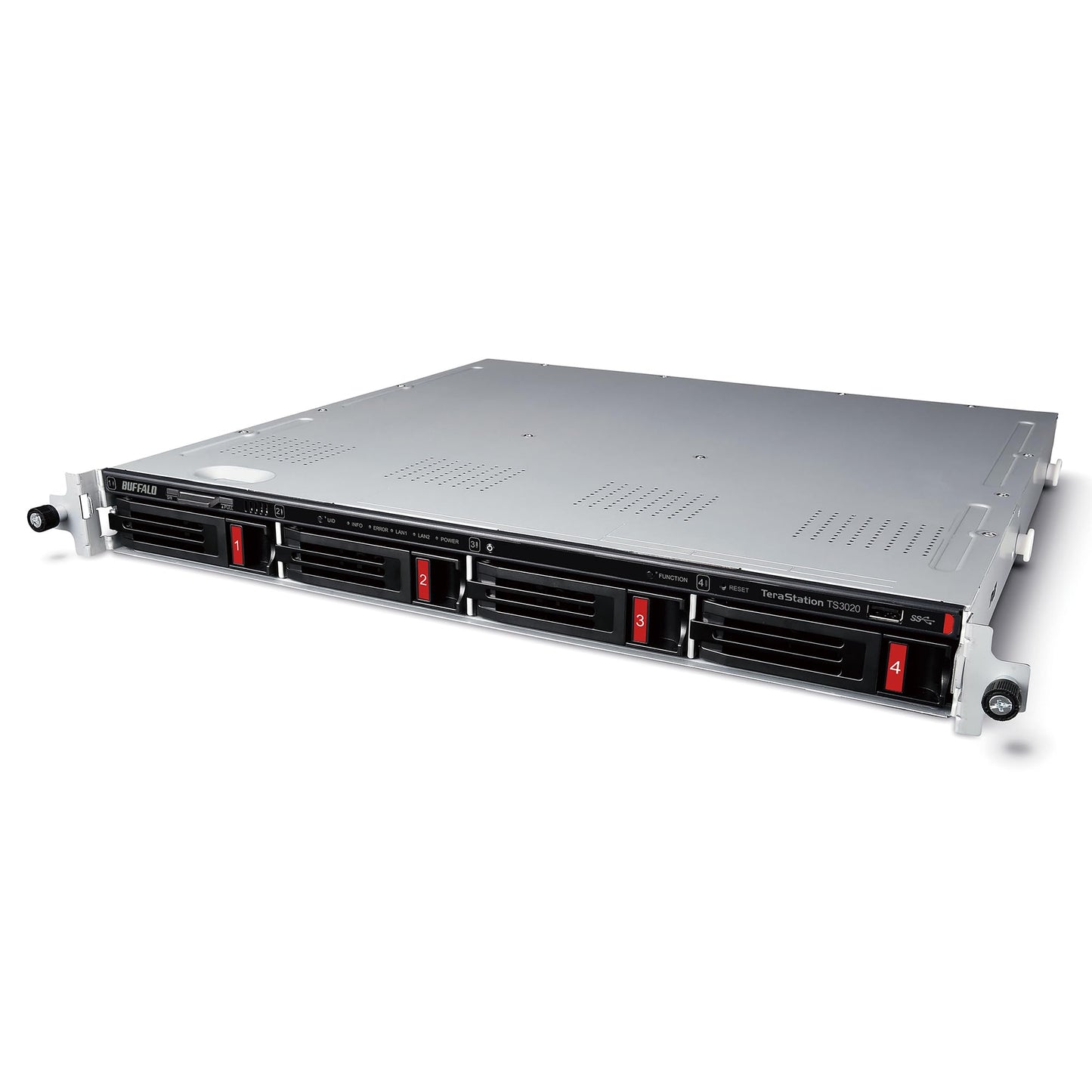

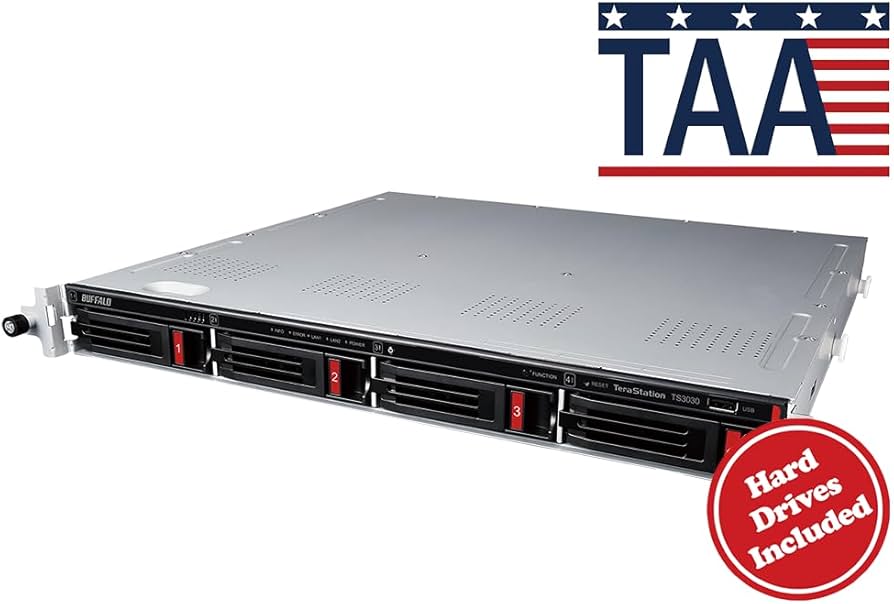

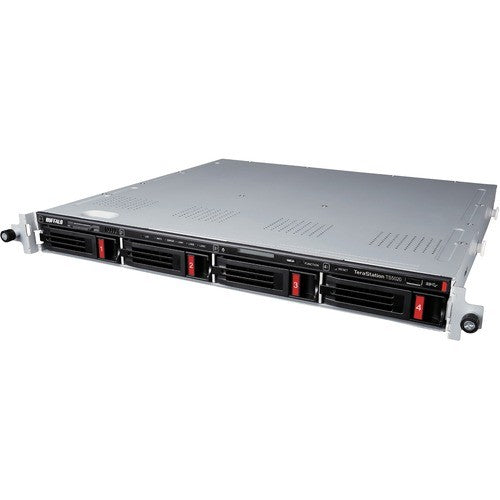

BUFFALO TeraStation 5420RN NAS 80TB 1U Rackmount

VENDOR: BUFFALO TECHNOLOGY Mfg Part#: TS5420RN8004 UPC#: 747464135908
1 5
Photo is for illustration purposes only. Actual product may be different.
$4,254.00
$4,254.00
Sale Sold out
MSRP: $6,150.00
Shipping calculated at checkout.
  • 80TB total capacity using 4x 20TB NAS hard drives
  • Intel Atom C3338 processor for efficient performance
  • 8GB DDR4 ECC memory for system stability and data integrity
  • 1x 10GbE RJ-45 and 2x 1GbE ports for high-speed network connectivity
  • Support for RAID 0, 1, 5, and JBOD configurations
  • TAA compliant and includes 3-year TeraStation VIP warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 80TB of pre-configured storage in a compact 1U form factor, minimizing rack space usage
  • Equipped with 10GbE networking and ECC memory, ensuring high performance and data integrity for business-critical applications
  • TAA compliance and 3-year elite warranty support make it ideal for public sector and enterprise deployments

Product Overview

The BUFFALO TeraStation 5420RN NAS is a rackmount storage solution engineered for businesses requiring reliable, high-capacity network storage. Housed in a 1U chassis, the system includes four 20TB NAS-grade hard drives for a total of 80TB. It supports RAID 0, 1, 5, and JBOD configurations for performance and redundancy.

With an Intel Atom C3338 processor and 8GB ECC DDR4 memory, the TeraStation 5420RN ensures dependable performance. It features 10GbE and dual 1GbE ports for high-speed connectivity and three USB 3.0 Type-A ports for flexible expansion. A SATA 3.0 (6Gb/s) interface supports optimal data transfer rates.

TAA compliance and an included 3-year VIP warranty make this NAS solution suitable for federal applications and mission-critical environments. A rail kit is included for streamlined rack integration, making it a valuable asset for both enterprise and SMB deployments.

Specifications

Product Overview
Product Type Rackmount NAS
Form Factor 1U Rackmount
Total Storage Capacity 80TB
Drive Bays 4
Drive Type 3.5" SATA NAS-grade HDD
Included Drive Capacity 4 x 20TB
Processor Intel Atom C3338 Dual-Core 1.5 GHz (Burst up to 2.2 GHz)
Memory 8GB ECC DDR4
Power Supply Internal AC 100-240V, 50/60Hz
Power Consumption (Max) Approx. 90W
RAID Support RAID 0/1/5/JBOD
Included Accessories Rail kit, Ethernet cables, power cord
Warranty 3-Year VIP Warranty

Wireless Features
Integrated Wireless

Compliance & Origin
Country of Origin Japan
TAA Compliant Yes
Certifications FCC, VCCI, RoHS
UPC 747464135908

Advanced Security Features
Encryption AES 256-bit Volume Encryption
User Access Control Yes—per-share and per-user permissions
Firewall Integrated IP Filter
Antivirus Support Supports third-party antivirus (not included)
Secure Erase Yes
Event Logging Syslog Support, Internal Logging

Interfaces
LAN Ports 1 x 10GbE RJ-45, 2 x 1GbE RJ-45
USB Ports 3 x USB 3.0 Type-A
Drive Interface SATA 3.0 (6 Gb/s)
Data Transfer Rate Up to 10 Gbps (WAN/LAN)
Network Protocols SMB, AFP, FTP/FTPS, SFTP, NFS, HTTP/HTTPS, SNMP

Physical & Environmental
Dimensions (H x W x D) 44 x 430 x 430 mm (1.73 x 16.93 x 16.93 in)
Weight Approx. 8.5 kg (18.7 lbs)
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% - 80% (non-condensing)
Noise Level Approx. 35 dB
Cooling 1 x Redundant Cooling Fan

Cloud Management & Licensing
Management Interface Web-Based GUI
Cloud Integration Microsoft Azure, Dropbox, Amazon S3
Remote Access Buffalo WebAccess, FTP, SFTP
Data Backup Services NovaBACKUP (Windows), rsync, replication
User Management Active Directory Integration, Local User Management
