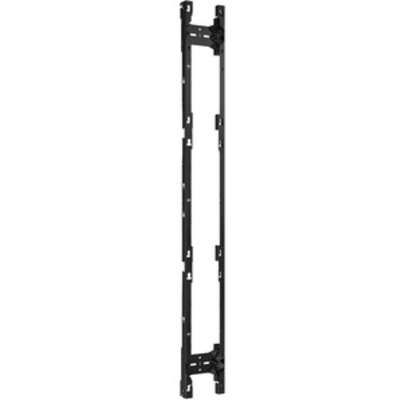

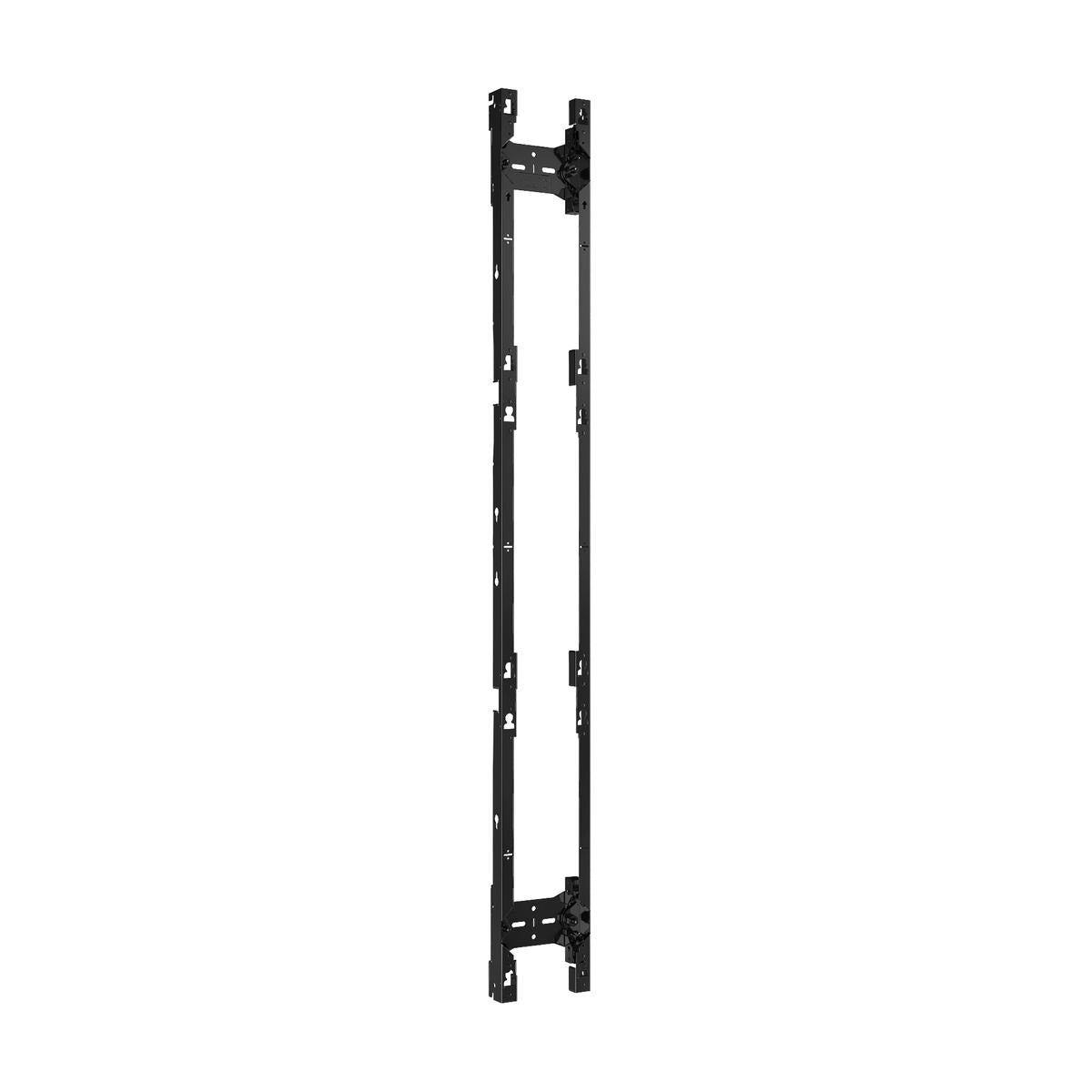

CHIEF TILD1X3IERF Samsung IER-F 3-High LED Wall Mount

VENDOR: CHIEF MANUFACTURING Mfg Part#: TILD1X3IERF UPC#: 841872176628
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,820.00
$1,820.00
Sale Sold out
Shipping calculated at checkout.
  • Wall mount designed for Samsung IER-F LED tiles in 3-high configurations
  • X-axis lateral shift adjustments enable perfect LED positioning
  • Y-axis vertical shift adjustments provide cabinet-to-cabinet alignment
  • Z-axis plumb adjustments compensate for wall imperfections
  • Black color enclosure for discreet, professional integration
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Precision 3-axis alignment capabilities make it ideal for tiled LED video walls where display accuracy is critical
  • TAA compliance and U.S. manufacturing ensure compatibility with government and enterprise projects
  • Optimized for Samsung IER-F displays, ensuring seamless integration and reduced installation complexity

Product Overview

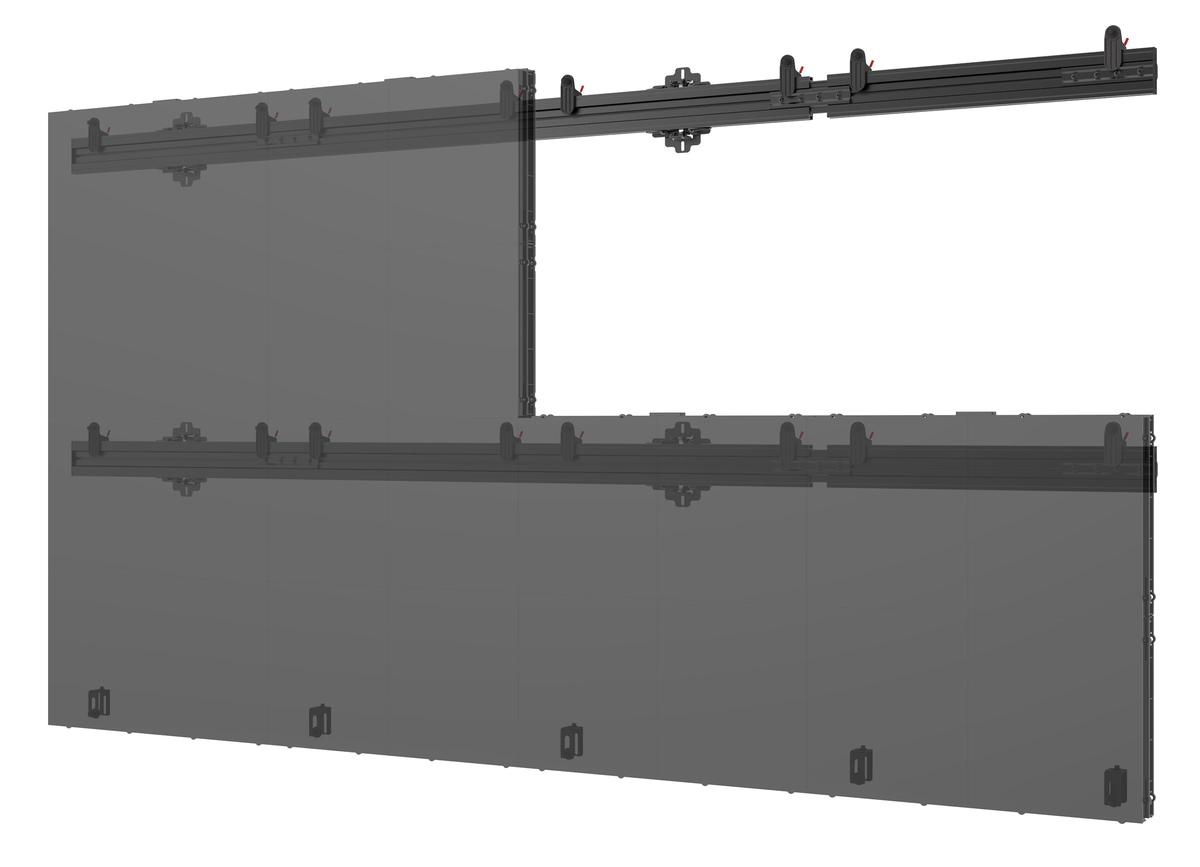

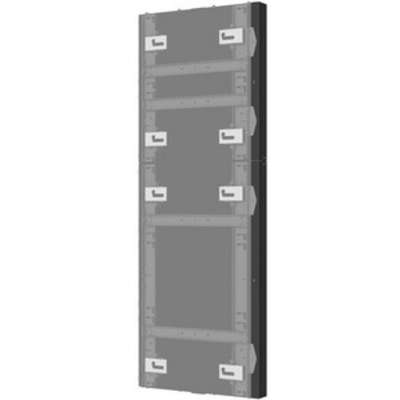

The CHIEF TILD1X3IERF TILED Wall Mount is a dedicated mounting solution engineered for Samsung IER-F direct-view LED displays in 3-high vertical configurations. Designed for professional video environments, this wall mount provides extensive adjustment controls to deliver accurate alignment and uncompromised visual presentation—critical for tiled LED systems.

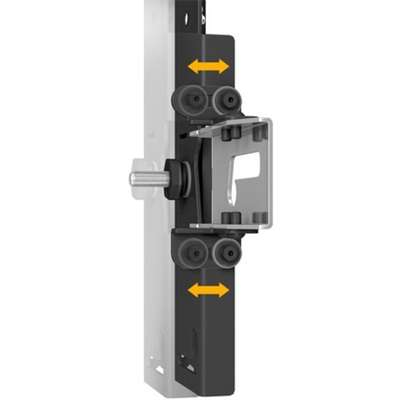

With X-axis lateral shift capabilities, the wall mount allows for precise cabinet-to-cabinet alignment. Vertical Y-axis adjustments fine-tune height positioning, while integrated Z-axis plumb adjusters compensate for wall surface irregularities, ensuring a perfectly flat mounting plane. Its robust black enclosure supports a sleek, professional finish suited for control rooms, retail signage, and corporate boardrooms.

Manufactured in the United States and compliant with the Trade Agreements Act (TAA), this wall mount aligns with government procurement standards and commercial AV integration norms. Its tool-less micro-adjustments reduce installation time while maximizing display performance, making it an ideal choice for high-end digital signage deployments.

Specifications

Product Overview
Product Type Wall Mount
Form Factor Wall-mounted bracket
Compatible Display Type Samsung IER-F direct-view LED display
Configuration 3-high vertical
Weight Capacity Up to 150 lbs (68 kg)
Mounting Orientation Portrait (Vertical)
Product Color Black
Display Adjustment X-axis, Y-axis, Z-axis micro-adjustments
Installation Tool-less micro-adjustments for alignment
Application Commercial AV, control rooms, digital signage

Physical & Environmental
Material Steel with black powder coat
Dimensions (H x W x D) Approximately 87 in x 43.8 in x 3.9 in (220.98 cm x 111.25 cm x 9.9 cm)
Product Weight Approximately 95 lbs (43.1 kg)
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Operating Humidity 10% to 95% (non-condensing)
Mounting Surface Requirement Flat wall required with possible plumb irregularities compensated

Cloud Management & Licensing
Remote Management
Licensing Required
Included Software

Interfaces
Mounting Interface Standard Custom-fit for Samsung IER-F LED panels (proprietary)
Attachment Method Modular LED cabinet interface with locking mechanisms
Adjustment Axis Support 3-axis (X, Y, Z)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certification Standards RoHS, UL Listed
Warranty 10 years limited warranty
UPC Code 841872176628

Advanced Security Features
Tamper Resistance Optional locking hardware (sold separately)
Security Screws Yes, for secure cabinet mounting
Anti-Theft Features Available through optional accessories
