CHIEF VCM018E Custom Ceiling Projector Mount, Black

VENDOR: CHIEF MANUFACTURING Mfg Part#: VCM018E
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$586.00
$586.00
Sale Sold out
MSRP: $929.00
Shipping calculated at checkout.
  • - Ceiling projector mount with independent roll, pitch, and yaw adjustments
  • - Custom HB018E bracket included for projector registration
  • - Multiple mounting options: flush, 0.5" threaded rods, or 1.5" NPT extension columns
  • - TAA compliant for qualified federal procurement
  • - Constructed in the United States
  • - Durable black finish for professional installations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Offers flexible and precise projector alignment through independent pitch, roll, and yaw adjustments
  • - Complies with TAA standards, making it viable for government and institutional installations
  • - Multiple mounting options allow installers to adapt to diverse ceiling configurations and site requirements

Product Overview

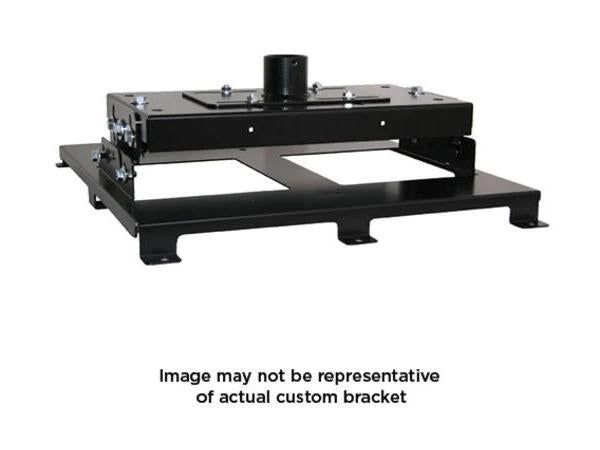

The CHIEF VCM018E Ceiling Projector Mount with custom HB018E bracket is engineered for professional AV environments requiring mounting flexibility and precise alignment. It supports independent roll, pitch, and yaw adjustments for optimal projector placement in various installation contexts. Designed for flush or extended mounting using threaded rods or 1.5" NPT columns, it adapts to complex ceiling structures. Manufactured in the USA and TAA-compliant, this black ceiling mount is fit for government and enterprise-grade installations. The custom bracket enhances projector compatibility, though specific models must be verified separately.

Specifications

Product Overview
Product Type Ceiling Projector Mount
Form Factor Ceiling mount
Color Black
Weight Capacity 250 lbs (113.4 kg)
Power Requirements
Material Steel
Mounting Orientation Ceiling
Adjustability Roll, Pitch, Yaw
Tilt Adjustment ±3°
Yaw Adjustment 360°
Roll Adjustment ±3°
Mounting Interface Custom HB018E Bracket

Physical & Environmental
Dimensions (H x W x D) 6.2 x 12 x 12 in (157 x 305 x 305 mm)
Shipping Dimensions (H x W x D) 10 x 13.75 x 13.75 in (254 x 349 x 349 mm)
Product Weight 18.3 lbs (8.3 kg)
Shipping Weight 21.5 lbs (9.8 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity (Operating) 10% to 90% non-condensing
Finish Black, powder coat

Cloud Management & Licensing
Remote Management
Software Licensing
Cloud Integration

Interfaces
Mounting Pattern Compatibility Custom bracket (verify projector model compatibility)
Ceiling Attachment 0.5" threaded rods or 1.5" NPT pipe
Extension Column Interface 1.5" NPT

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL Listed

Advanced Security Features
Tamper Resistance Yes (with locking hardware configuration)
Theft Deterrence Optional security hardware available
Cable Management Integrated cable management options
